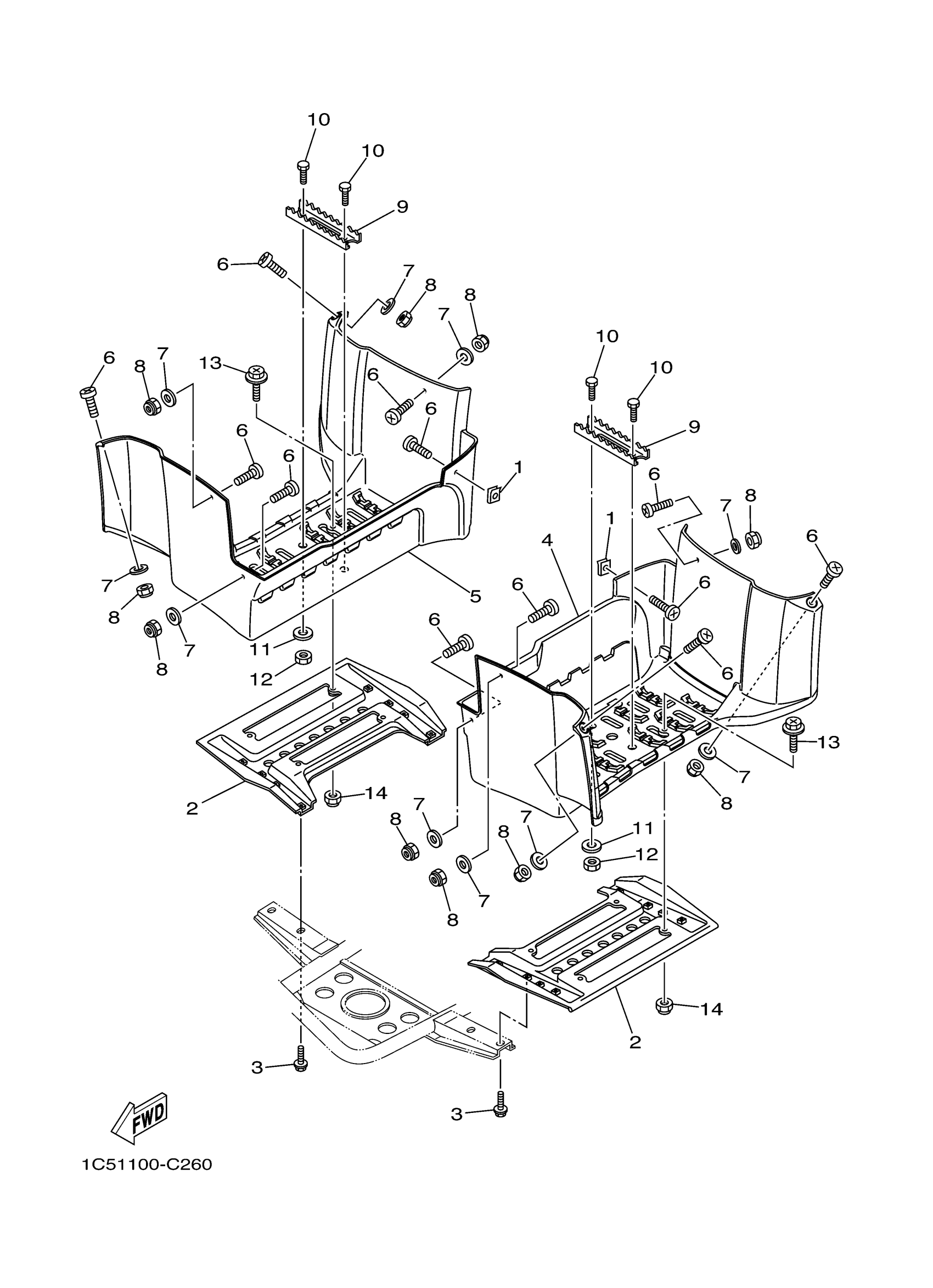

Yamaha YFM125GW (GRIZZLY 125) 1C5D 2007 STAND FOOTREST Diagram

#

Description
Price

1

NUT, SPRING(4ES)

90183-06069-00

Unavailable

2

FOOTREST 1

3FA-27411-10-00

Unavailable

3

BOLT, FLANGE

95817-08014-00

$5.60

4

COVER 1

1C5-27453-00-00

Unavailable

5

COVER 2

1C5-27463-00-00

Unavailable

6

SCREW, BINDING

98907-06020-00

$8.49

7

WASHER, PLATE (4L0)

90201-062A8-00

$8.49

8

NUT, NYLON

95707-06300-00

$3.50

9

ARM 1

5GH-2741A-10-00

Unavailable

10

BOLT(3KJ)

90109-063F5-00

$9.49

11

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

12

NUT(6TA)

95317-06600-00

$3.55

13

BOLT, W/WASHER (3V2)

90119-05020-00

$9.49

14

NUT, NYLON

95707-05300-00

$4.24
