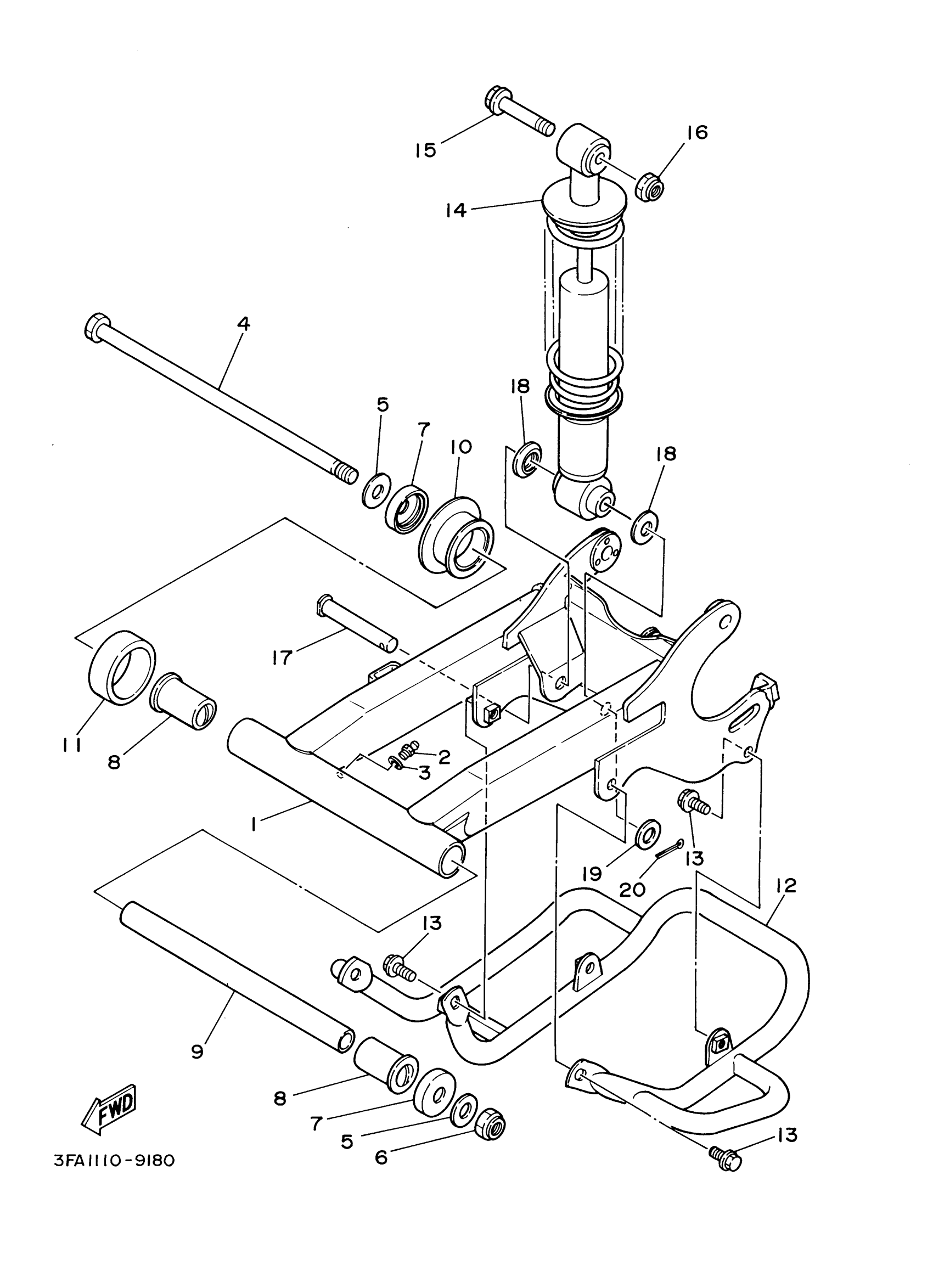

Yamaha YFM125GV (GRIZZLY 125) 1C59 2006 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM COMP.

3FA-22110-00-33

$283.79

2

NIPPLE, GREASE

93700-06M03-00

$7.40

3

WASHER(6TA)

92907-06200-00

$5.76

4

SHAFT, PIVOT

2JX-22141-00-00

Unavailable

5

WASHER, PLATE (4N0)

90201-126A7-00

$5.86

6

NUT, SELF-LOCKING(1KH)

90185-12134-00

$9.43

7

COVER, THRUST 1

401-22128-01-00

$23.80

8

BUSHING (401-22123-00)

90386-18028-00

$19.98

9

COLLAR, DISTANCE

3FA-22126-00-00

$48.90

10

SEAL, GUARD

2A6-22151-00-00

$6.88

11

SEAL, GUARD 2

2A6-22152-00-00

$4.90

12

COVER

3FA-2219X-00-00

Unavailable

13

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

14

SHOCK ABSORBER ASSY, REAR

3FA-22210-00-33

$284.53

15

BOLT, WASHER BASED(59V)

90105-10388-00

$7.49

16

NUT, SELF LOCKING (3G1)

90185-10091-00

Unavailable

17

PIN, CLEVIS (10V)

90240-12092-00

Unavailable

18

COVER, THRUST

1W1-22128-00-00

Unavailable

19

WASHER, PLATE

90201-12047-00

Unavailable

20

PIN, COTTER

91401-30025-00

Unavailable
