Description

Price

1

FRONT FENDER COMP.

1C5-W2151-02-00

$282.59

1

FRONT FENDER COMP.

1C5-Y2151-C0-00

Unavailable

2

BOLT(3KJ)

90109-063F1-00

$2.15

3

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88

4

COLLAR (8G8)

90387-06648-00

$6.62

5

PANEL, FRONT

1C5-23391-00-00

$76.94

6

RIVET(4JH)

90269-07076-00

$5.59

7

GRILLE, FRONT

1C5-28309-00-00

Unavailable

8

BOLT, WITH WASHER (10V)

90119-06063-00

$5.86

9

NUT, SPRING (26H)

90183-06023-00

$6.94

10

SCREW

90149-06021-00

$5.81

11

NUT, SPRING(4ES)

90183-06069-00

$5.69

12

CAP

5GH-28349-00-00

$7.27

13

CAP, CLEANER CASE 2

3FA-14422-10-00

$29.73

14

ELEMENT, AIR CLEANER 2

3FA-14461-00-00

$12.22

15

SCREW, PAN HEAD

98517-05020-00

Unavailable

16

WASHER(1RW)

92907-05600-00

Unavailable

17

TUNING FORK MARK

5KM-2175B-00-00

Unavailable

18

TUNING FORK MARK

5GT-2836B-10-00

Unavailable

19

COVER, TOP

1C5-2171A-00-00

Unavailable

19

COVER, TOP

1C5-2171A-10-00

Unavailable

20

NUT, SPRING(4ES)

90183-06069-00

$5.69

21

SCREW

90149-06021-00

$5.81

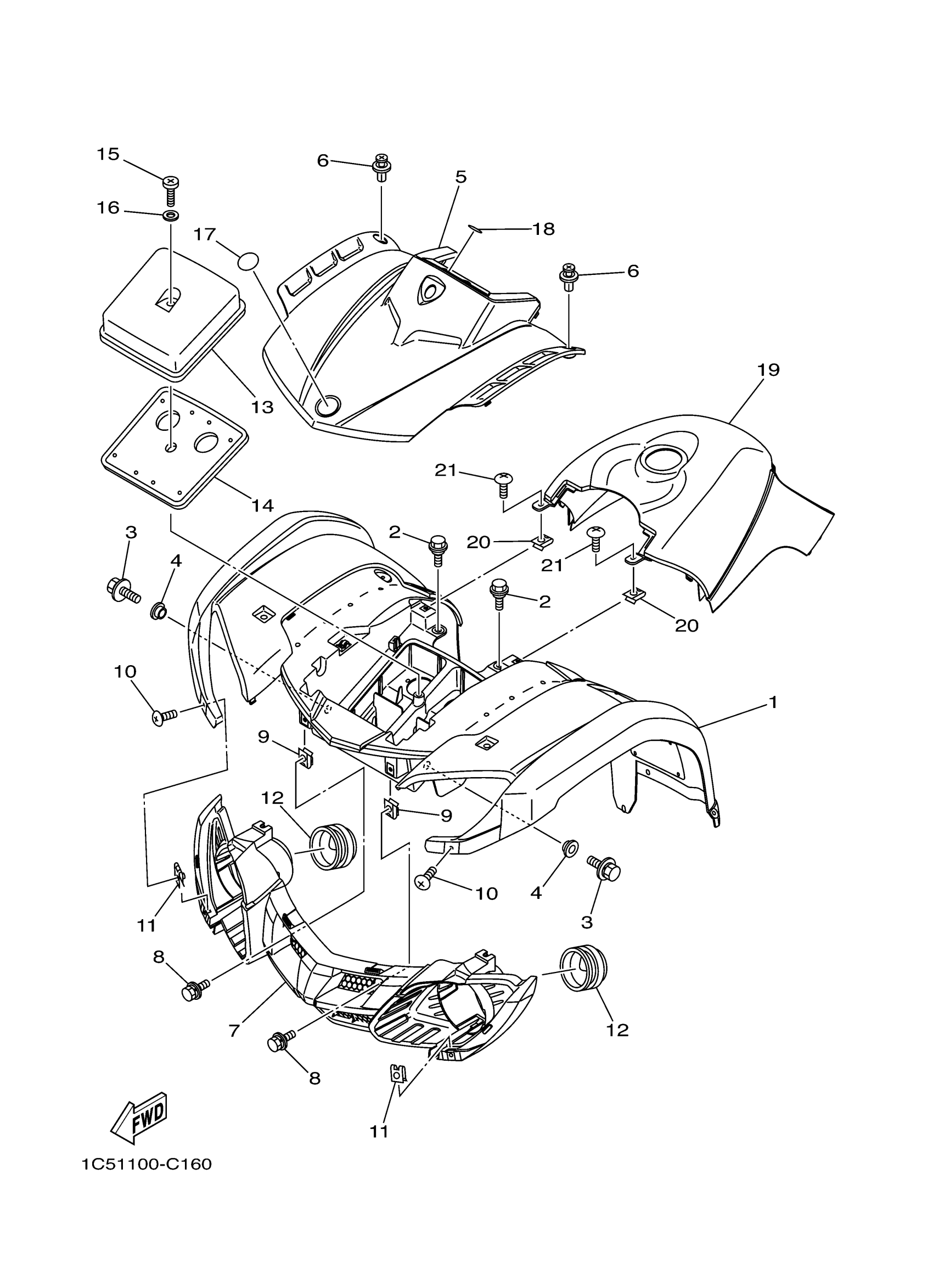

Yamaha YFM125GV (GRIZZLY 125) 1C59 2006 FRONT FENDER Diagram

FRONT FENDER COMP.

FRONT FENDER COMP.

BOLT(3KJ)

BOLT, WITH WASHER (30X)

COLLAR (8G8)

PANEL, FRONT

RIVET(4JH)

GRILLE, FRONT

BOLT, WITH WASHER (10V)

NUT, SPRING (26H)

SCREW

NUT, SPRING(4ES)

CAP

CAP, CLEANER CASE 2

ELEMENT, AIR CLEANER 2

SCREW, PAN HEAD

WASHER(1RW)

TUNING FORK MARK

TUNING FORK MARK

COVER, TOP

COVER, TOP

NUT, SPRING(4ES)

SCREW
