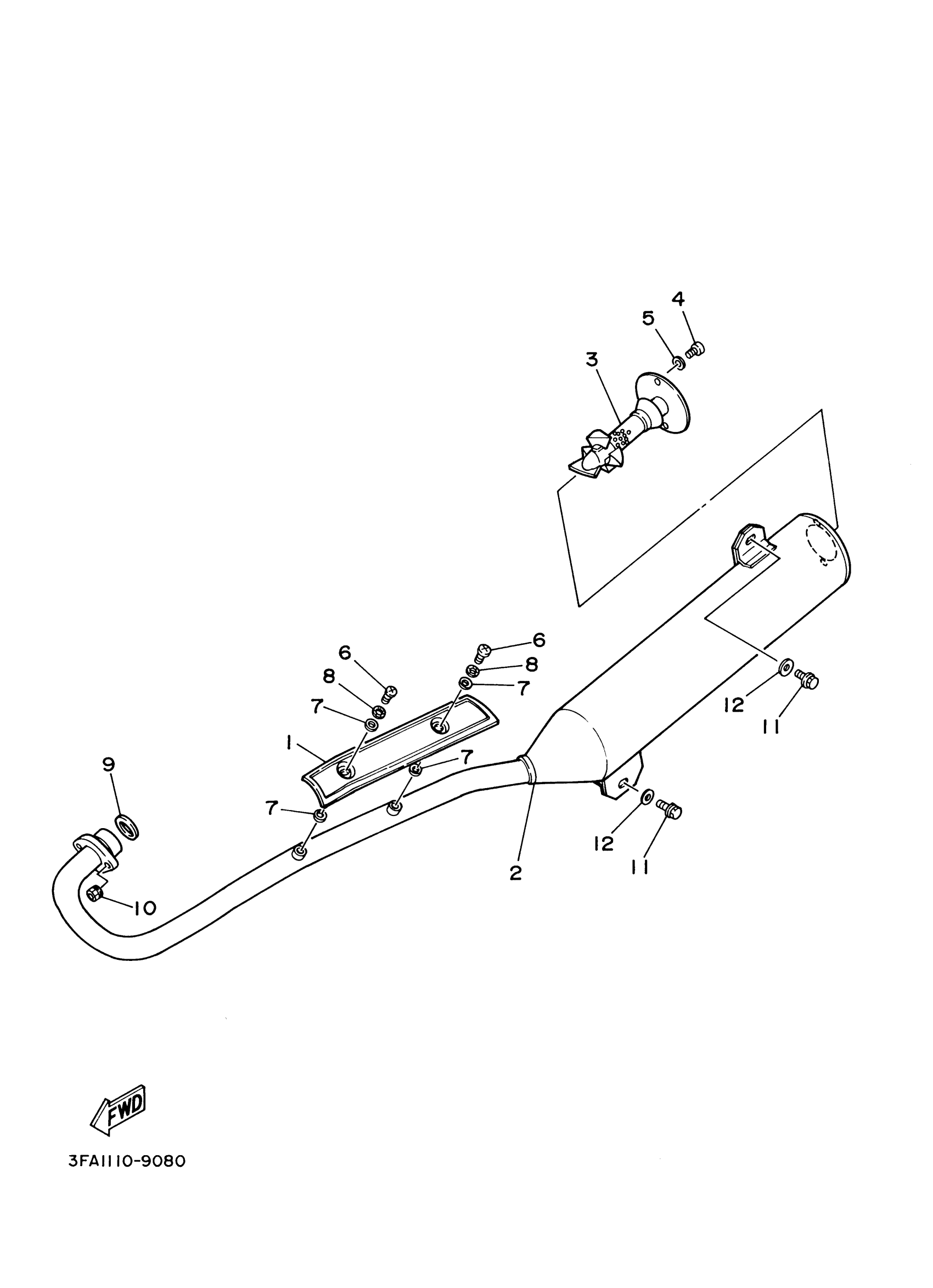

Yamaha YFM125GV (GRIZZLY 125) 1C59 2006 EXHAUST Diagram

#

Description
Price

1

PROTECTOR, EXHAUST PIPE

3FA-14628-00-00

$56.91

2

MUFFLER 1

3FA-14711-00-00

$238.59

3

PIPE, OUTLET

55X-14752-00-00

$47.20

4

SCREW, PAN

98507-06010-00

$2.52

5

WASHER(6TA)

92907-06600-00

$0.73

6

SCREW, BINDING

98907-06010-00

$1.40

7

WASHER, PROTECTOR

4BD-14766-00-00

$5.12

8

WASHER, WAVE(3RW)

90206-06090-00

$4.89

9

GASKET, EXHAUST PIPE

3DM-14613-00-00

$6.17

10

NUT, FLANGE(4MV)

95707-06500-00

$0.73

11

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

12

WASHER (853)

90201-08326-00

$5.75
