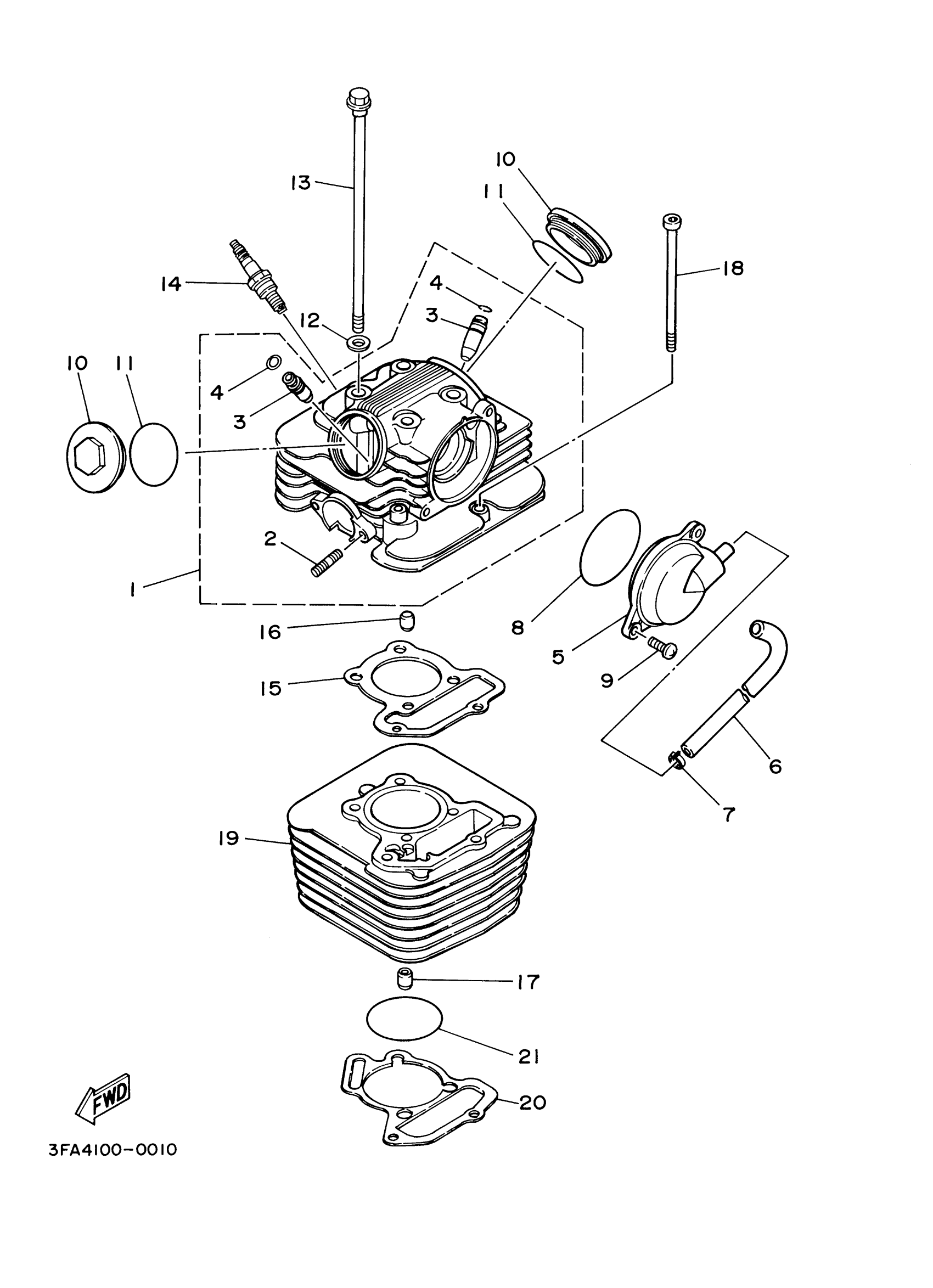

Yamaha YFM125GV (GRIZZLY 125) 1C59 2006 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

3FA-11102-04-00

Unavailable

2

BOLT, STUD(3MA)

90116-06541-00

$5.00

3

GUIDE, EXHAUST VALVE (1ST O/S)

22F-11134-10-00

$71.87

4

CIRCLIP (22F)

93440-10109-00

$5.29

5

BREATHER ASSY

3FA-11160-00-00

Unavailable

6

PIPE, BREATHER 1

3FA-11166-00-00

Unavailable

7

CLIP(3YX)

90467-13133-00

$4.92

8

O-RING (22F)

93210-63556-00

$6.49

9

SCREW, PAN HEAD(3TJ)

98507-06016-00

$2.27

10

COVER, CYLINDER HEAD SIDE 2

22F-11186-10-00

$17.22

11

O-RING(55X)

93210-44704-00

$5.34

12

WASHER, PLATE

90201-080L7-00

$3.19

13

BOLT, FLANGE

90105-08181-00

$6.34

14

CR7HSA NGK SPLUG 4PK

CR7-HSA00-00-00

$3.77

15

GASKET, CYLINDER HEAD 1

50M-11181-00-00

$31.85

16

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

17

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

18

BOLT, SOCKET

91317-06110-00

Unavailable

19

CYLINDER

3FA-11310-00-00

Unavailable

20

GASKET, CYLINDER

3FA-11351-10-00

Unavailable

21

O-RING

93210-53679-00

$3.45
