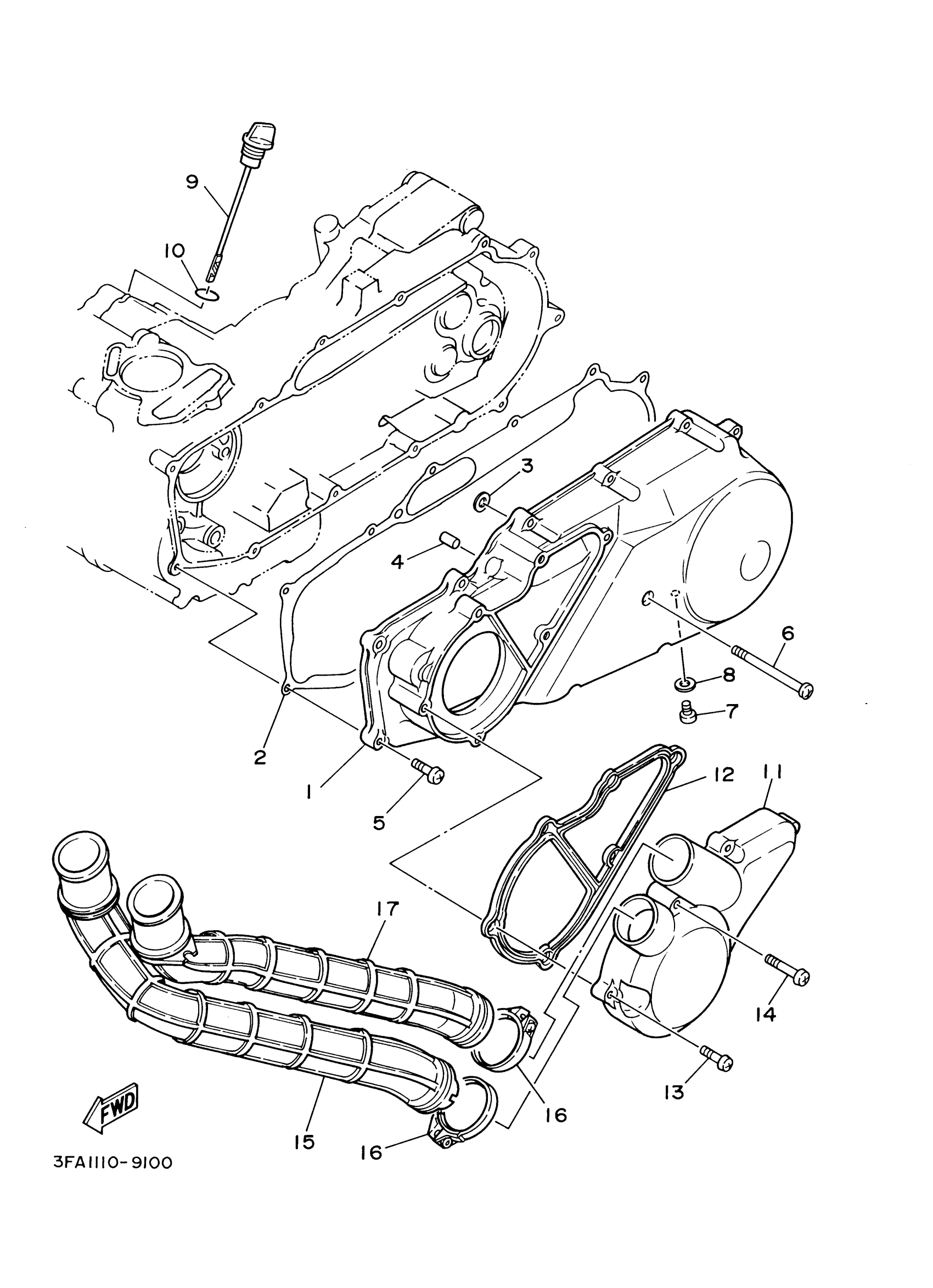

Yamaha YFM125GV (GRIZZLY 125) 1C59 2006 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

3FA-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

3FA-15451-11-00

$17.42

3

GASKET

3FA-15467-00-00

$6.03

4

PIN, DOWEL(3VD)

99530-10114-00

$2.13

5

SCREW, PAN

98517-06030-00

$2.88

6

SCREW, PAN

98507-06090-00

Unavailable

7

SCREW, PAN

98517-06008-00

$6.22

8

WASHER, PLATE (1L9)

90201-06630-00

$2.93

9

PLUG, OIL LEVEL

3FA-15362-00-00

$24.45

10

O-RING (646)

93210-19123-00

Unavailable

11

DUCT, AIR

3FA-15471-00-00

Unavailable

12

SEAL, AIR DUCT

3FA-15472-00-00

Unavailable

13

SCREW, PAN

98517-06030-00

$2.88

14

SCREW, PAN

98507-06045-00

$2.46

15

DUCT, AIR

3FA-15475-00-00

$43.47

16

HOSE CLAMP ASSY

90450-54008-00

Unavailable

17

DUCT, AIR

3FA-15477-00-00

Unavailable
