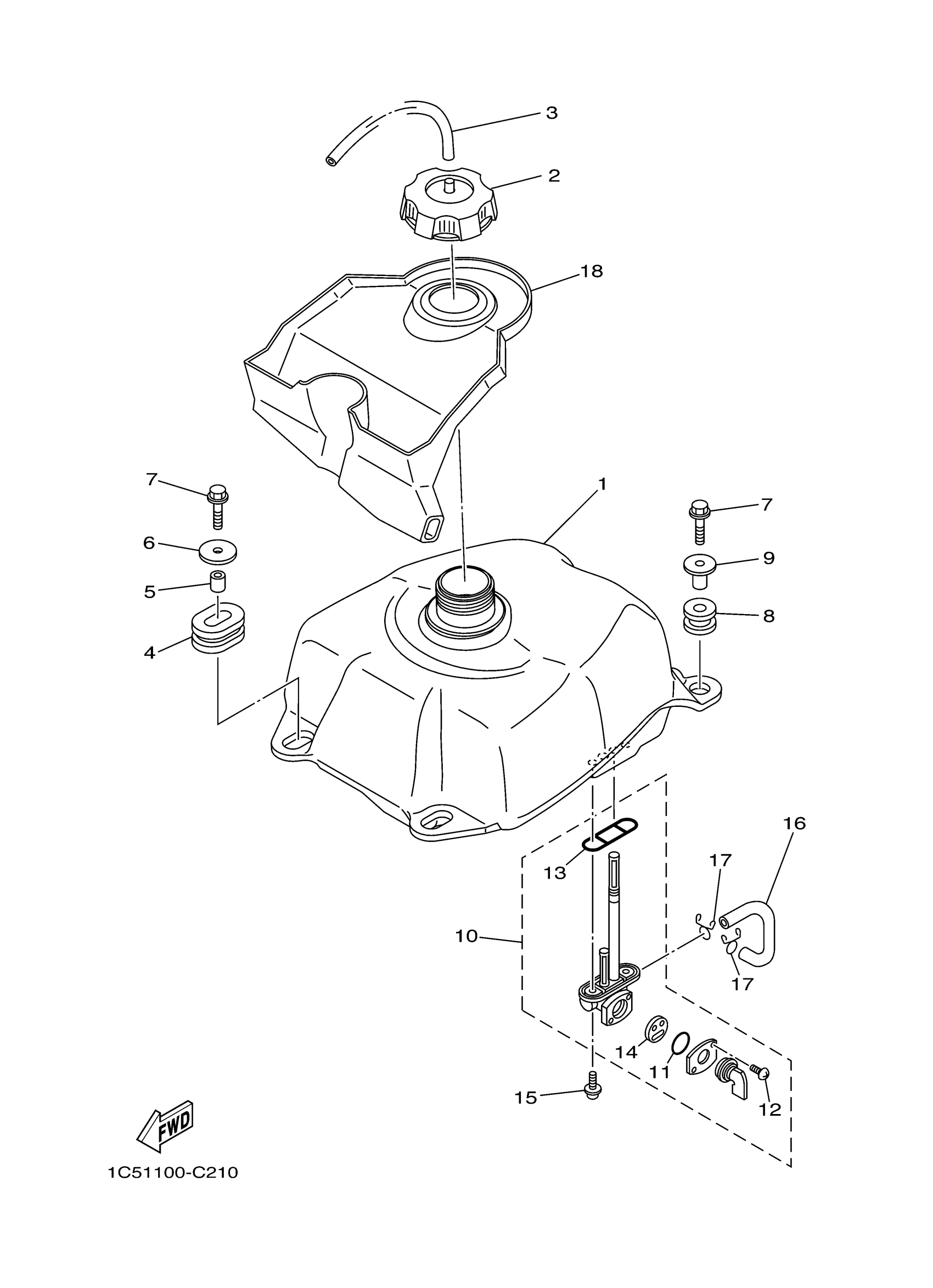

Yamaha YFM125GT (GRIZZLY 125) 1C55 2005 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

1C5-24110-00-00

Unavailable

2

CAP ASSY

2FJ-24610-20-00

$68.99

3

HOSE (L420)

90445-092K1-00

$12.49

4

GROMMET(38W)

90480-01400-00

$13.49

5

COLLAR (1T2)

90387-07598-00

$5.60

6

WASHER, PLATE

90201-06090-00

$5.60

7

BOLT, FLANGE

95817-06035-00

$7.49

8

GROMMET (4V1)

90480-18290-00

$8.49

9

COLLAR (29U)

90387-066H4-00

$8.49

10

FUEL COCK ASSY 1

55W-24500-10-00

$43.99

11

SEAL, COCK

3AJ-24534-01-00

$10.99

12

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

13

O-RING

4X8-24512-00-00

$8.99

14

VALVE PACKING

3AC-24523-00-00

$12.99

15

SCREW 256241430000

90149-06011-00

$5.60

16

HOSE (L200)

90445-10752-00

Unavailable

17

CLIP

90467-090A2-00

Unavailable

18

DAMPER, PLATE 1

1C5-2414H-00-00

Unavailable
