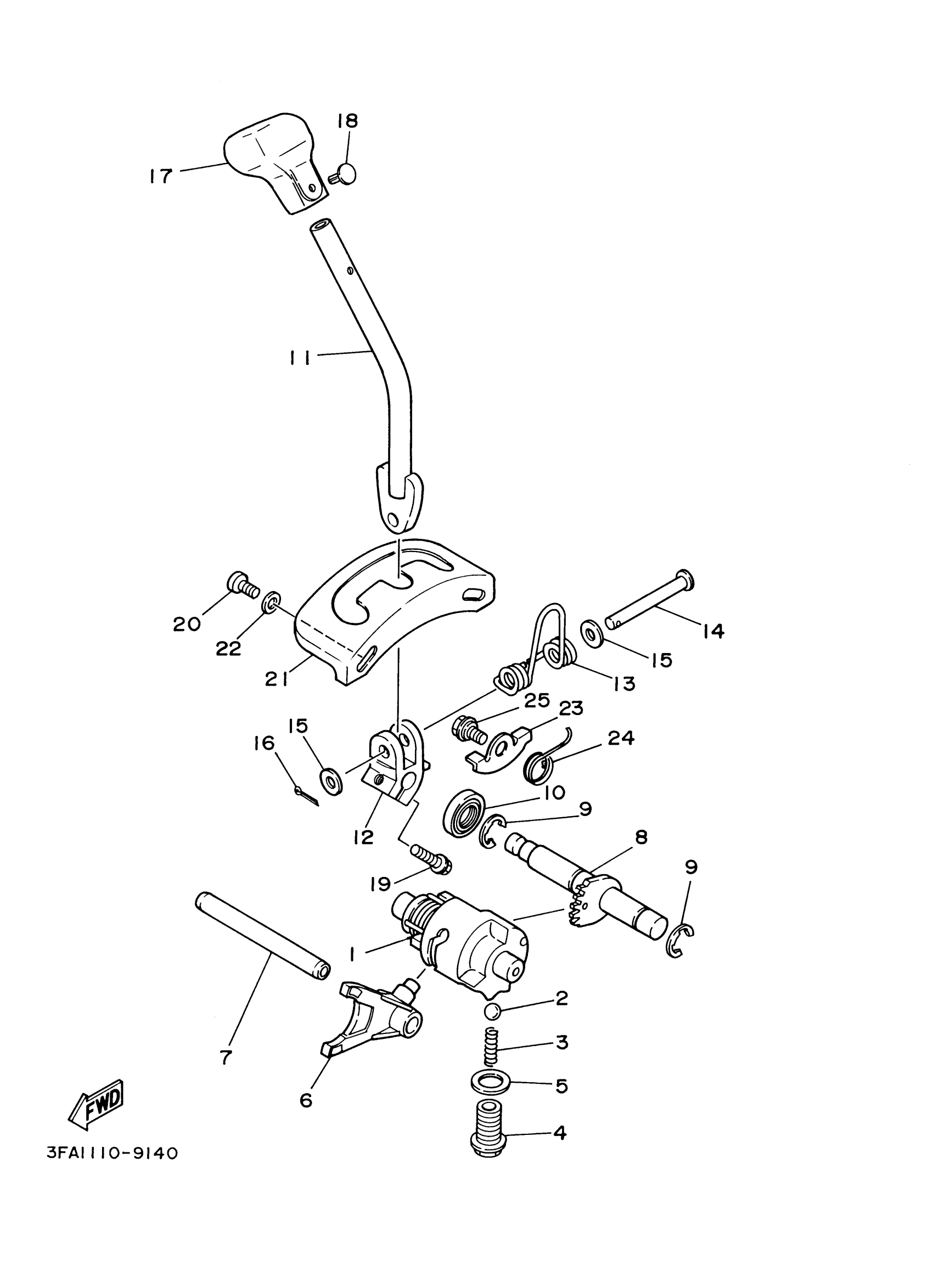

Yamaha YFM125GHW (GRIZZLY 125 HUNTER) 1C5G 2007 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

3FA-18540-00-00

$100.99

2

BALL

93503-08007-00

$4.15

3

SPRING, COMPRESSION (465)

90501-10353-00

$9.49

4

BOLT, FLANGE

90105-14003-00

$8.49

5

GASKET(59V)

90430-14194-00

$8.49

6

FORK, SHIFT 2

4GB-18512-00-00

Unavailable

7

BAR, SHIFT FORK GUIDE 2

1HX-18535-00-00

$11.99

8

SHIFT SHAFT ASSY

3FA-18101-01-00

$31.99

9

. CIRCLIP

99001-12600-00

Unavailable

10

OIL SEAL (3Y1)

93102-14209-00

$11.49

11

LEVER, SHIFT 4

3FA-18152-00-00

$28.99

12

KNOB, SHIFTER

3FA-18164-00-00

$35.99

13

SPRING, TORSION(3FA)

90508-29760-00

$8.49

14

PIN, CLEVIS(3FA)

91701-08058-00

Unavailable

15

WASHER(6TA)

92907-08600-00

$3.03

16

PIN, COTTER

91490-25020-00

Unavailable

17

KNOB, SHIFT LEVER

3FA-18174-00-00

Unavailable

18

RIVET(81E)

90269-05055-00

Unavailable

19

BOLT, FLANGE

95817-06025-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD(1WG)

90110-06142-00

Unavailable

21

BRACKET

3FA-18128-00-00

Unavailable

22

WASHER(6TA)

92907-06600-00

Unavailable

23

LEVER

3FA-18191-00-00

Unavailable

24

SPRING, TORSION(3FA)

90508-12761-00

Unavailable

25

BOLT

90109-06190-00

Unavailable
