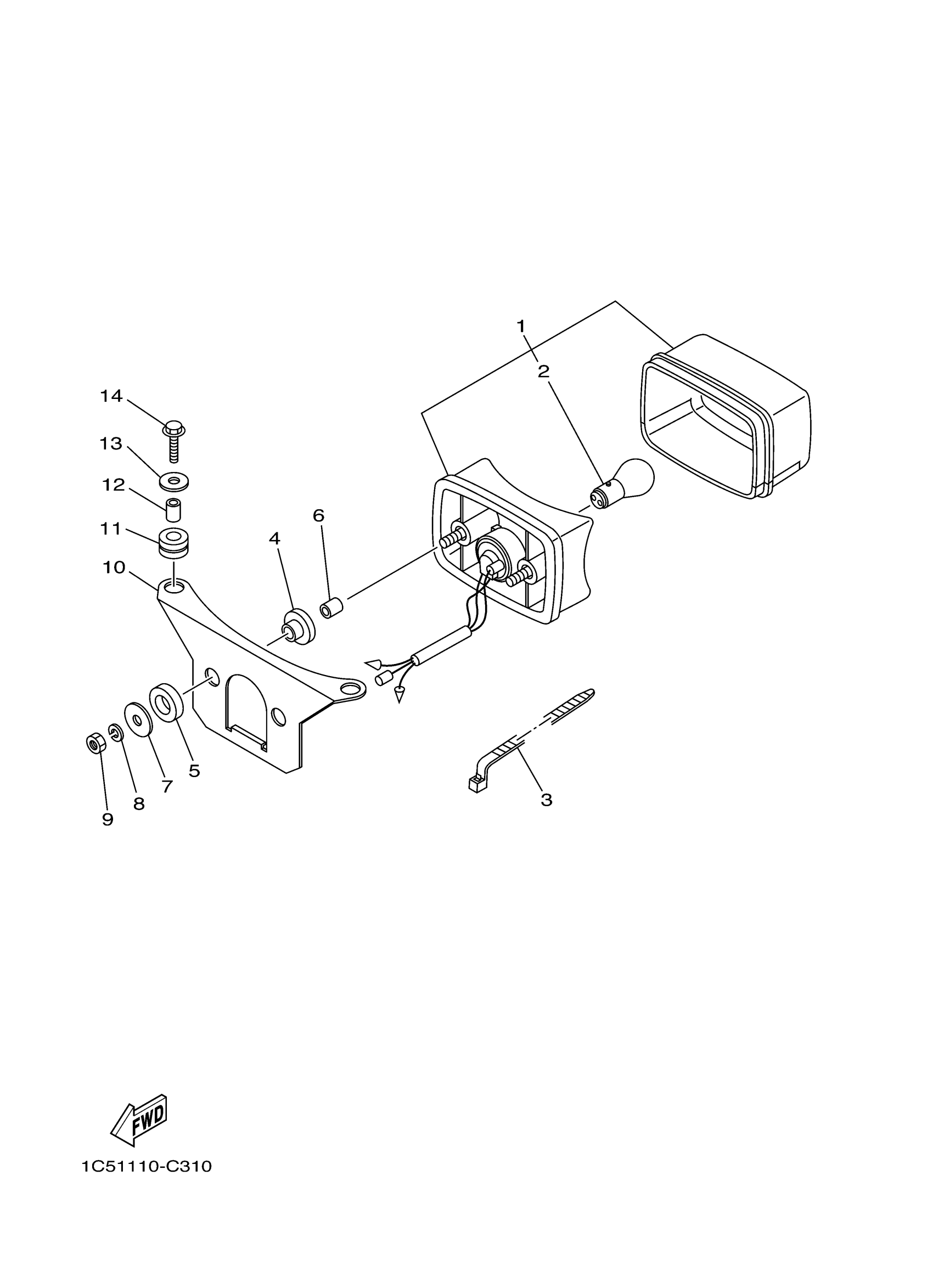

Yamaha YFM125GHV (GRIZZLY 125 HUNTER) 1C5C 2006 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

3FA-84710-01-00

$40.00

2

BULB

1A2-84714-50-00

$11.36

3

CLAMP(4FM)

90464-15195-00

$2.57

4

GROMMET (462)

90480-14088-00

$3.87

5

WASHER, PLATE (462)

90202-14077-00

$3.32

6

SPACER

90560-07007-00

$6.12

7

WASHER PLATE 248217570000

90201-06074-00

$5.86

8

WASHER, SPRING

92907-06100-00

$0.98

9

NUT(6TA)

95317-06600-00

$2.52

10

BRACKET, TAILLIGHT

3FA-84702-10-00

$28.57

11

GROMET (3X3)

90480-14229-00

$5.75

12

COLLAR (J10)

90387-06026-00

$6.45

13

WASHER, PLATE(36Y)

90201-063J2-00

$4.15

14

BOLT, FLANGE

95817-06025-00

Unavailable
