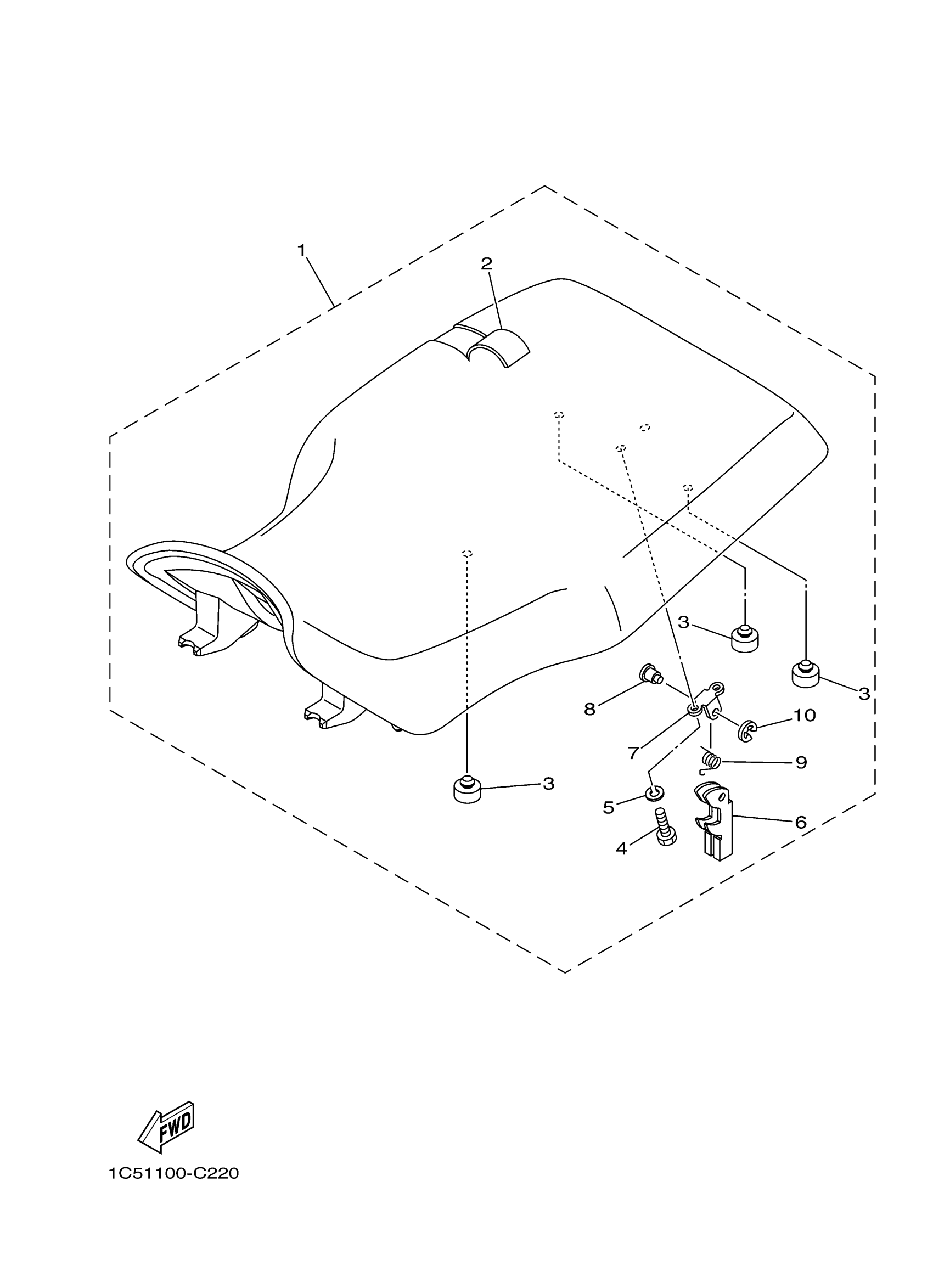

Yamaha YFM125GHV (GRIZZLY 125 HUNTER) 1C5C 2006 SEAT Diagram

#

Description

Price

1

SINGLE SEAT ASSY

1C5-24710-00-00

Unavailable

2

COVER, SEAT

1C5-24731-01-00

Unavailable

3

STOPPER, MAIN STAND

371-27114-00-00

$7.99

4

BOLT, HEXAGON

97017-06012-00

$3.76

5

WASHER, SPRING

92907-06100-00

$4.25

6

LEVER, SEAT

29U-24776-00-00

Unavailable

7

BRACKET, SEAT LEVER

4K0-24775-00-00

Unavailable

8

PIN

4K0-24774-01-00

Unavailable

9

SPRING, TORSION(3FA)

90508-20779-00

$5.60

10

CIRCLIP (EU0)

99080-04600-00

Unavailable
