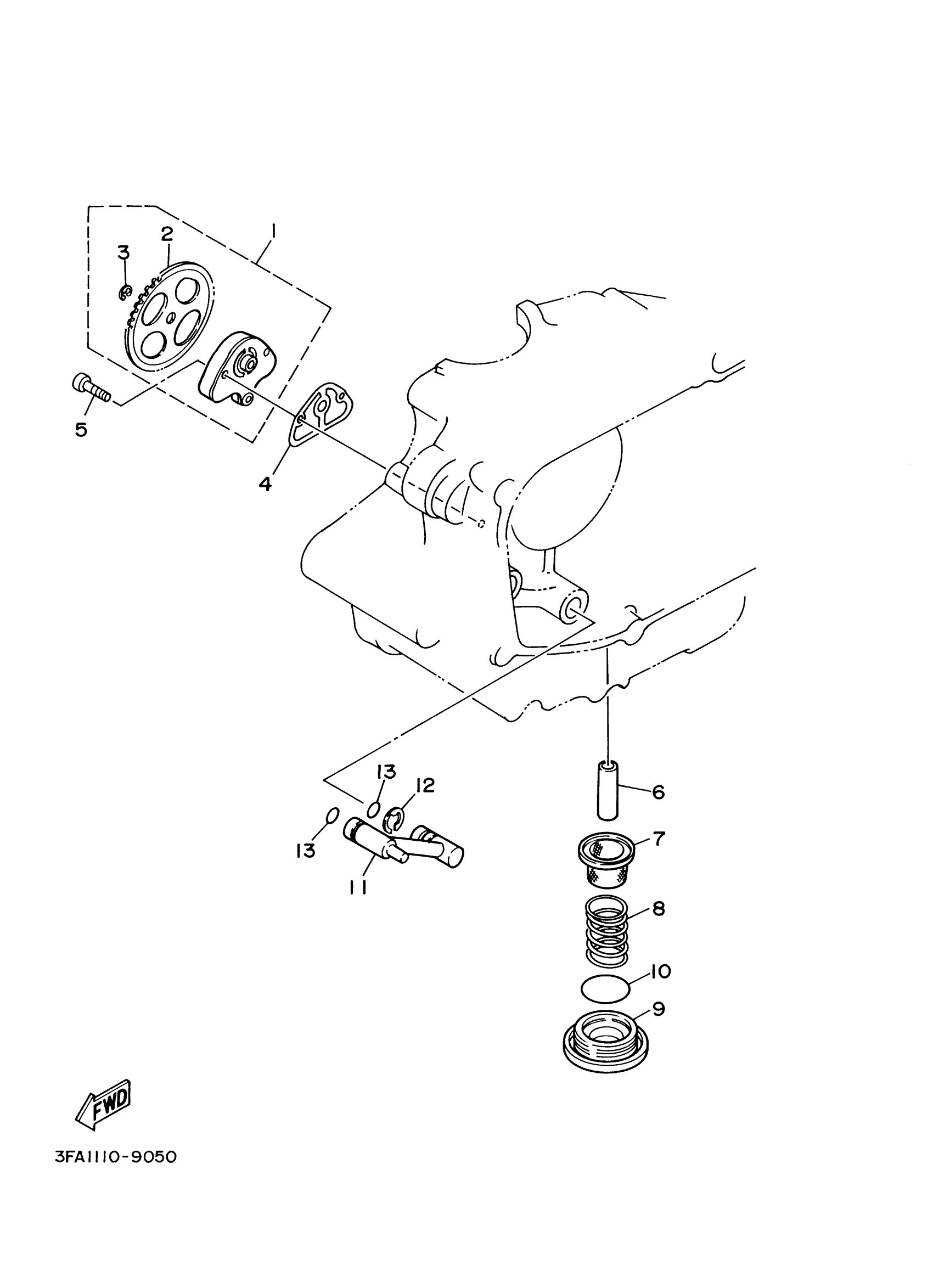

Yamaha YFM125GHV (GRIZZLY 125 HUNTER) 1C5C 2006 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

3FA-13300-00-00

Unavailable

2

GEAR, PUMP DRIVEN

3FA-13325-00-00

$44.70

3

CIRCLIP(22K)

99080-05600-00

$5.75

4

GASKET, PUMP COVER

22F-13329-01-00

$6.79

5

SCREW, FLAT FILLISTER

90155-06007-00

$0.41

6

PIPE, OIL 1

2XK-13416-00-00

$6.17

7

STRAINER, OIL

51Y-13411-00-00

$29.77

8

SPRING, COMPRESSION (3Y1)

90501-18576-00

$5.75

9

PLUG, DRAIN

4HC-15351-00-00

$15.20

10

O-RING

93210-347A1-00

$5.34

11

OIL PIPE COMP. 1

3FA-13405-00-00

Unavailable

12

CIRCLIP

99006-10600-00

$6.45

13

O-RING

93210-08003-00

$6.39
