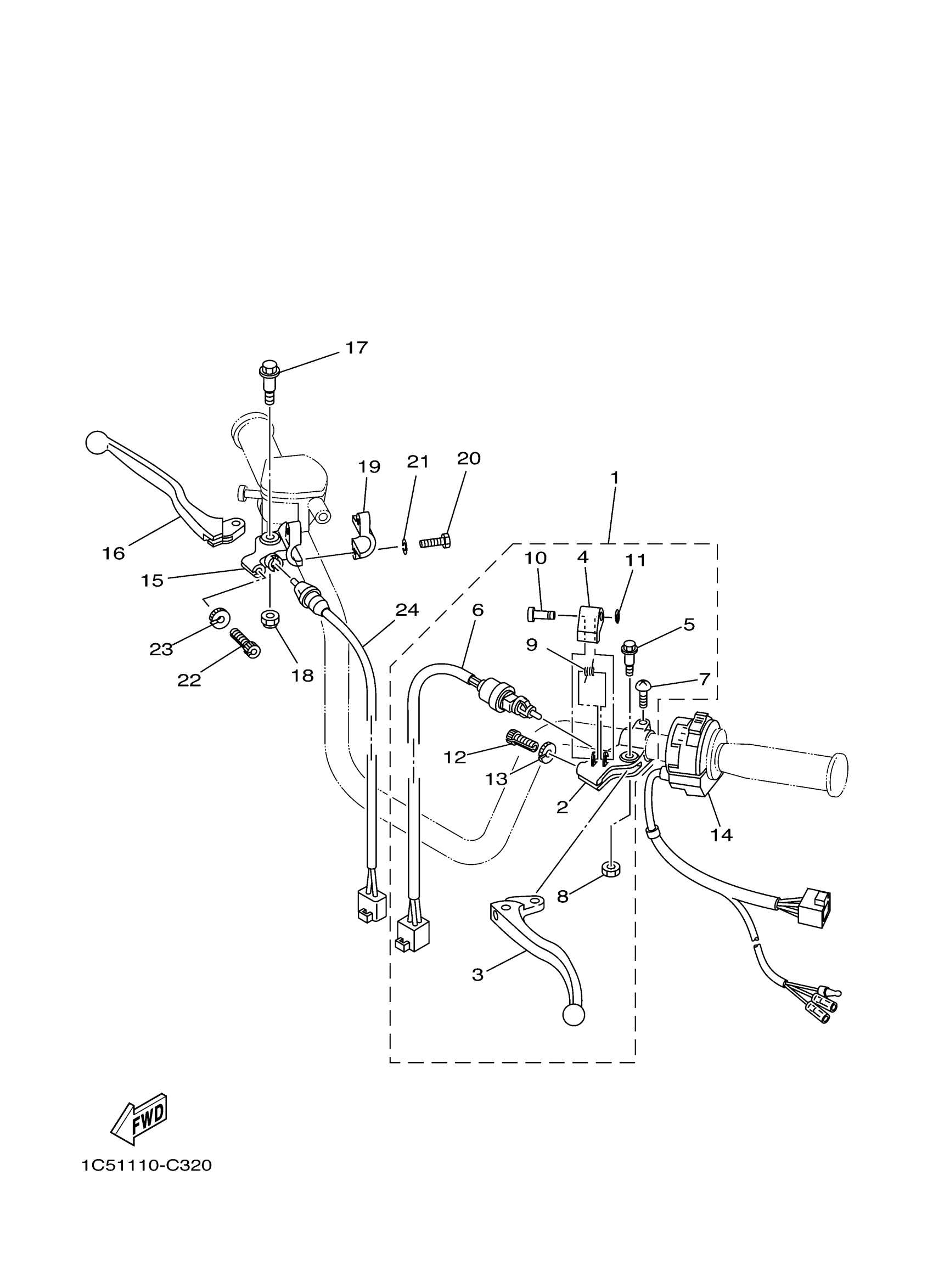

Yamaha YFM125GHV (GRIZZLY 125 HUNTER) 1C5C 2006 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

LEVER HOLDER ASSY (LEFT)

3FA-82910-24-00

Unavailable

2

HOLDER, LEVER 1

3FA-82911-01-00

$30.82

3

LEVER 1

2HT-83912-01-00

$32.59

4

LEVER, LOCK

3FA-83965-00-00

$25.03

5

BOLT (2YK1)

90109-06799-00

$4.23

6

FRONT STOP SWITCH ASSY

3FA-83980-03-00

$60.01

7

SCREW, PAN

98517-06020-00

$1.79

8

NUT, SELF-LOCKING

95617-06100-00

$2.17

9

SPRING, RETURN

3FA-83966-00-00

$3.71

10

PIN, LOCK 1

3FA-83967-00-00

$8.47

11

RING, SNAP

3FA-26466-00-00

$6.42

12

BOLT

90123-08002-00

$8.57

13

NUT

90179-08030-00

$3.63

14

SWITCH, HANDLE 3

4KB-83973-22-00

Unavailable

15

HOLDER, LEVER 2

3JN-82921-00-00

Unavailable

16

LEVER 2

59V-83922-00-00

Unavailable

17

BOLT (2YK1)

90109-06799-00

$4.23

18

NUT, SELF-LOCKING

95617-06100-00

$2.17

19

HOLDER, LEVER LOWER 1

2XJ-82913-00-00

Unavailable

20

BOLT, HEXAGON

97017-06025-00

Unavailable

21

WASHER, SPRING

92907-06100-00

Unavailable

22

BOLT

90123-08002-00

$8.57

23

NUT

90179-08030-00

$3.63

24

FRONT STOP SWITCH ASSY

3FA-83980-10-00

Unavailable
