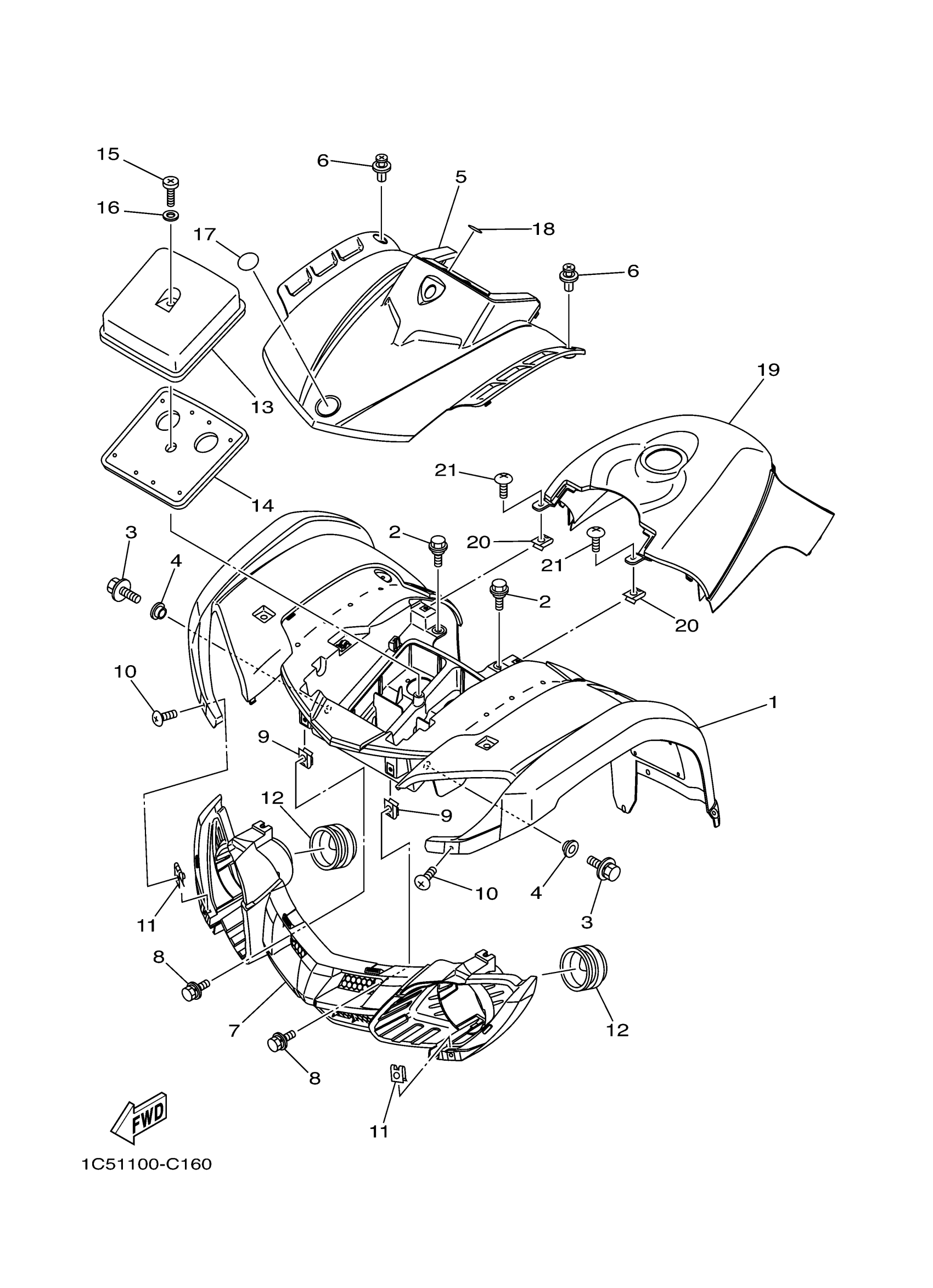

Yamaha YFM125GHV (GRIZZLY 125 HUNTER) 1C5C 2006 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

1C5-Y2151-A0-00

Unavailable

2

BOLT(3KJ)

90109-063F1-00

$2.15

3

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88

4

COLLAR (8G8)

90387-06648-00

$6.62

5

PANEL, FRONT

1C5-23391-A1-00

Unavailable

6

RIVET(4JH)

90269-07076-00

$5.59

7

GRILLE, FRONT

1C5-28309-00-00

Unavailable

8

BOLT, WITH WASHER (10V)

90119-06063-00

$5.86

9

NUT, SPRING (26H)

90183-06023-00

$6.94

10

SCREW

90149-06021-00

$5.81

11

NUT, SPRING(4ES)

90183-06069-00

$5.69

12

CAP

5GH-28349-00-00

$7.27

13

CAP, CLEANER CASE 2

3FA-14422-10-00

$29.73

14

ELEMENT, AIR CLEANER 2

3FA-14461-00-00

$12.22

15

SCREW, PAN HEAD(JJ6)

98507-05016-00

$1.31

16

WASHER(1RW)

92907-05600-00

Unavailable

17

TUNING FORK MARK

5KM-2175B-00-00

Unavailable

18

TUNING FORK MARK

5GT-2836B-10-00

Unavailable

19

COVER, TOP

1C5-2171A-A0-00

Unavailable

20

NUT, SPRING(4ES)

90183-06069-00

$5.69

21

SCREW

90149-06021-00

$5.81
