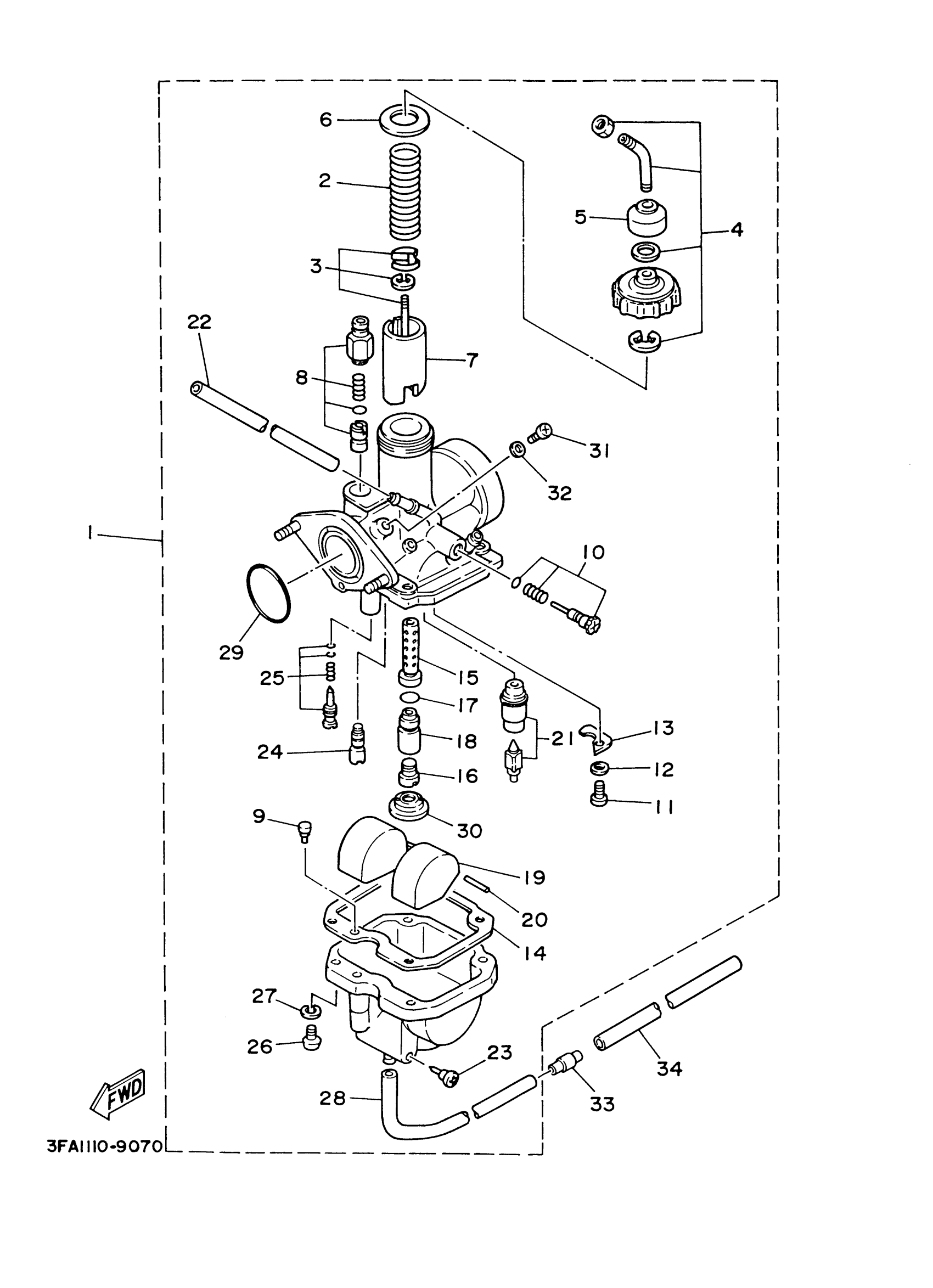

Yamaha YFM125GHV (GRIZZLY 125 HUNTER) 1C5C 2006 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

5VJ-14101-10-00

$304.99

2

. SPRING, THROTTLE VALVE

21V-14131-00-00

Unavailable

3

NEEDLE SET

3FA-1490J-10-00

Unavailable

4

CABLE ADJUST SCREW SET

10X-14106-00-00

$39.99

5

CAP

3X3-14169-00-00

$16.49

6

GASKET

4U5-14126-00-00

Unavailable

7

. VALVE, THROTTLE 1

3FA-14112-25-00

Unavailable

8

STARTER SET

5VJ-1410A-00-00

$75.99

9

. JET, STARTER

18M-14144-09-00

Unavailable

10

THROTTLE SCREW SET

18G-14103-00-00

$27.99

11

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

12

WASHER, SPRING

92990-03100-00

$8.49

13

PLATE

21V-14146-00-00

$15.49

14

GASKET, FLOAT CHAMBER

24W-14184-00-00

$22.99

15

. NOZZLE, MAIN

21V-1414M-31-00

Unavailable

16

JET,MA1N #77.5

620-1423A-66-00

Unavailable

17

O-RING

583-14561-00-00

Unavailable

18

PIPE

3FA-14148-00-00

Unavailable

19

FLOAT

21V-14185-00-00

Unavailable

20

PIN, FLOAT

127-14186-00-00

Unavailable

21

NEEDLE VALVE ASSY

5HH-14190-18-00

Unavailable

22

PIPE

26H-14197-01-00

Unavailable

23

PLUG, DRAIN

12R-14191-00-00

Unavailable

24

JET, PILOT (# 12.5)

1NT-14142-12-00

Unavailable

25

PILOT SCREW SET

21V-14105-00-00

Unavailable

26

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

27

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

28

HOSE (L1500)

90445-084J0-00

Unavailable

29

O-RING

24W-14147-00-00

Unavailable

30

WASHER, MAIN JET

5V7-14153-00-00

Unavailable

31

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

32

. WASHER

59V-14962-00-00

Unavailable

33

PIPE 2,OVERFLOW

24W-14193-00-00

Unavailable

34

TUBE, FLEXIBLE(3NV)

91A21-07020-00

Unavailable
