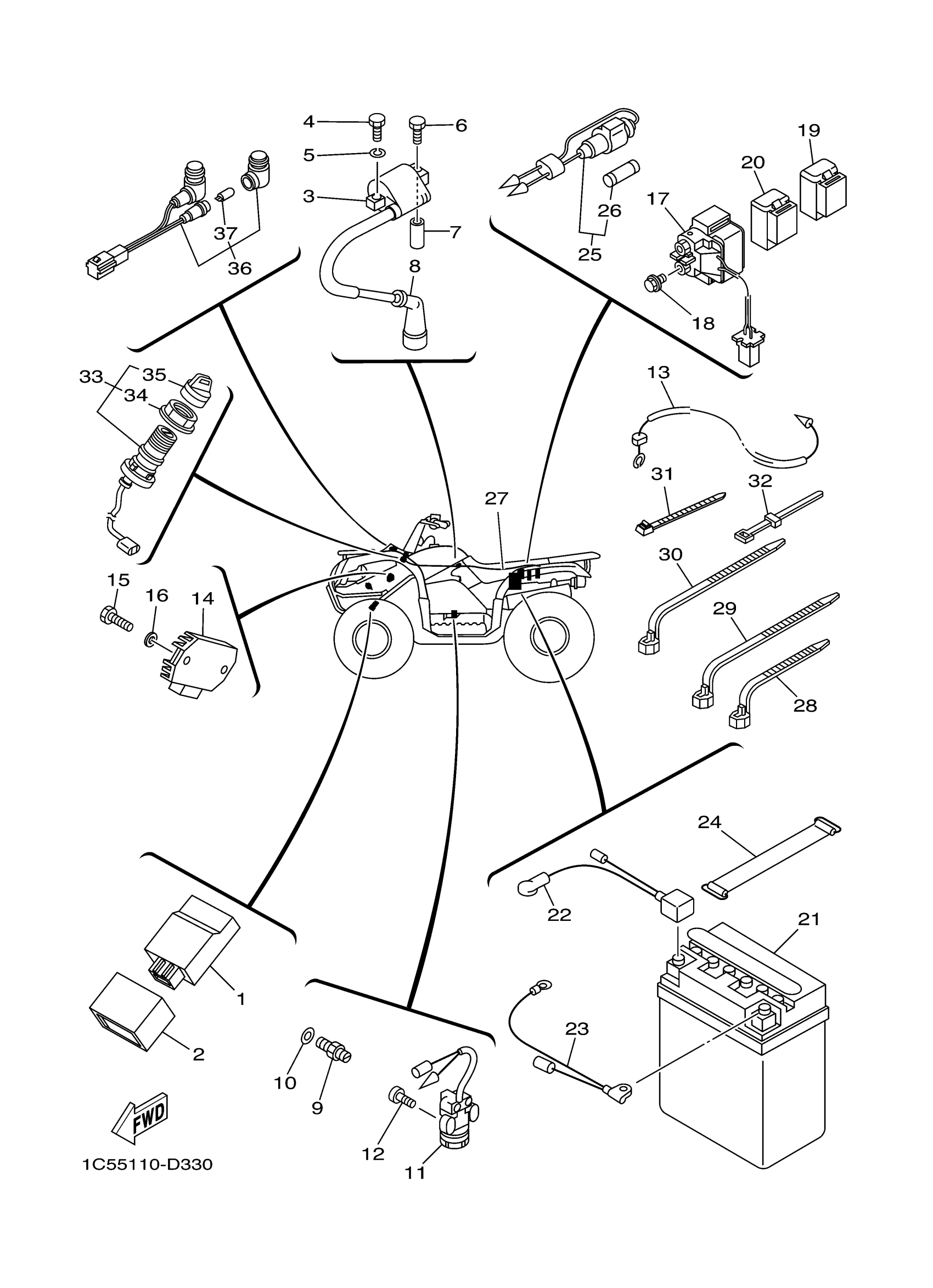

Yamaha YFM125GHT (GRIZZLY 125 HUNTER) 1C58 2005 ELECTRICAL 1 Diagram

C.D.I. UNIT ASSY

3FA-85540-20-00

Unavailable

BAND

1B2-H5546-00-00

$5.49

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

BOLT, HEXAGON

97017-06020-00

$4.06

WASHER, SPRING

92907-06100-00

$4.25

BOLT (21V)

90109-06723-00

$8.49

HOSE (L200)

90445-07176-00

$7.60

PLUG CAP ASSY

3NS-82370-00-00

$37.99

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

GASKET (1KH,1.0T)

90430-10148-00

$5.60

SWITCH

3FA-82627-00-00

Unavailable

SCREW(3FA)

90149-05283-00

Unavailable

WIRE, LEAD

3FA-82541-00-00

Unavailable

RECTIFIER & REGULATOR ASSY

5GT-81960-00-00

$261.99

BOLT, HEXAGON

97017-06020-00

$4.06

WASHER(6TA)

92907-06600-00

Unavailable

STARTER RELAY ASSY (MS5E-661)

3MW-81940-01-00

Unavailable

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

RELAY ASSY (2NL-92)

2NL-81950-92-00

Unavailable

ACB12CA GS BATTERY WET PACK

ACB-12CA0-00-00

Unavailable

WIRE, PLUS LEAD

3FA-82115-01-00

Unavailable

WIRE, MINUS LEAD

1VJ-82116-00-00

Unavailable

BAND, BATTERY

133-82131-00-00

Unavailable

FUSE HOLDER ASSY

1UY-82150-00-00

Unavailable

FUSE (15A)

1UY-82151-00-00

Unavailable

WIRE HARNESS ASSY

1C5-82590-00-00

Unavailable

CLAMP(4FM)

90464-15195-00

Unavailable

CLAMP(4FM)

90464-15195-00

Unavailable

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

CLAMP

90465-10098-00

Unavailable

BAND, SWITCH CORD

437-83936-01-00

Unavailable

MAIN SWITCH ASSY

5LP-82510-01-00

Unavailable

NUT, MAIN SWITCH

3HN-82569-00-00

Unavailable

CAP, KEY

3HN-82579-00-00

Unavailable

PILOT LIGHT ASSY

5TE-83530-00-00

Unavailable

BULB (12V-1.7W)

3FV-83517-00-00

Unavailable
