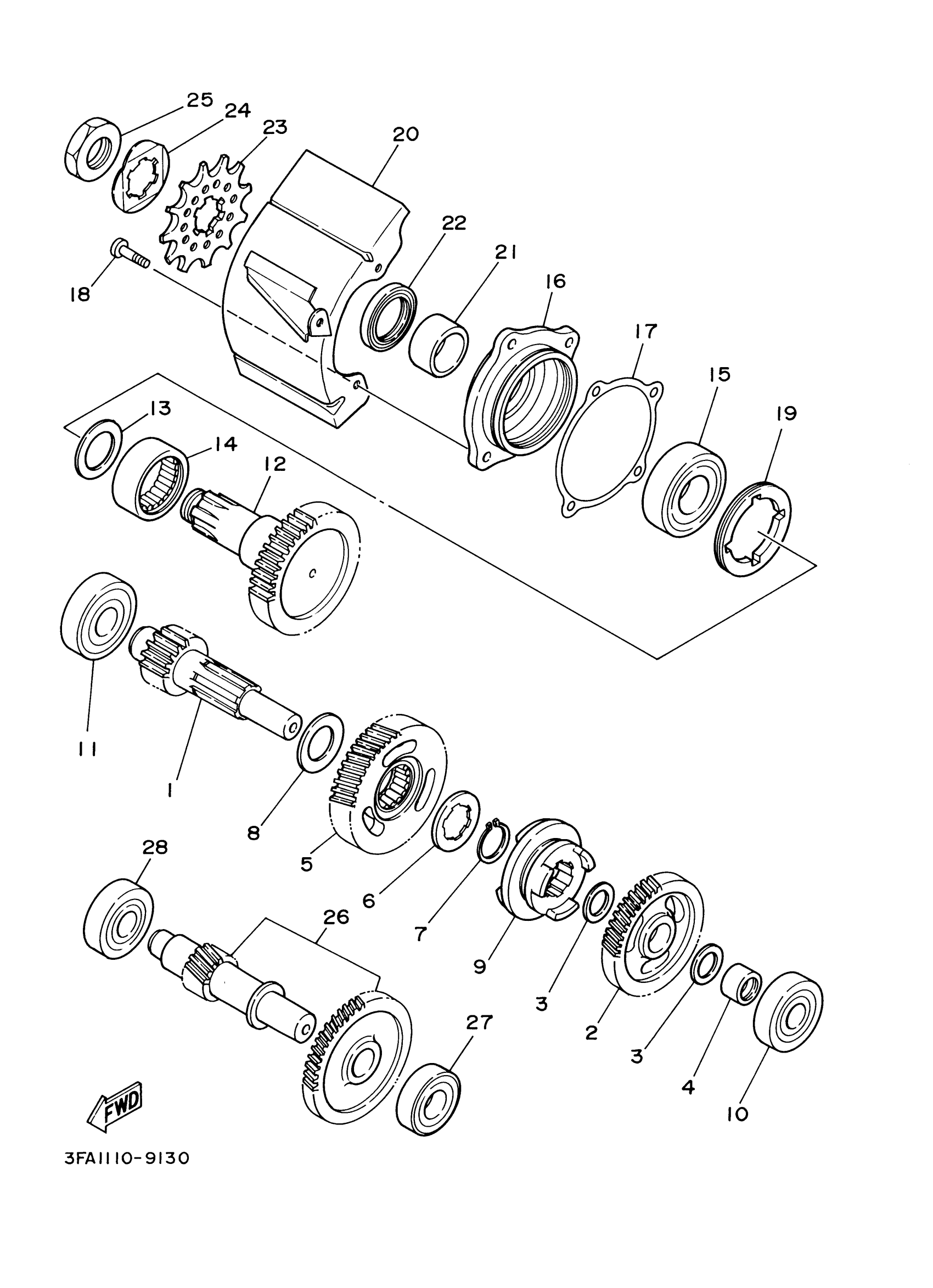

Yamaha YFM125GDGR (GRIZZLY 125) 1PY4 2013 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN (17T)

3FA-17411-00-00

Unavailable

2

GEAR, PRIMARY DRIVEN (43T)

3FA-16151-00-00

$113.99

3

WASHER, PLATE (4L0)

90201-154E8-00

$8.49

4

SPACER(3FA)

90560-15348-00

Unavailable

5

REDUCTION GEAR ASSY (49T)

3FA-17270-00-00

$168.99

6

WASHER, LOCK(3FA)

90215-22276-00

Unavailable

7

CIRCLIP (537)

93410-22039-00

$8.49

8

WASHER, PLATE(3FA)

90201-221M8-00

$10.49

9

CLUTCH, DOG

3FA-17285-00-00

$74.99

10

BRG, R-B (7H4)

93306-20211-00

$25.99

11

BEARING(1YW)

93306-20461-00

$39.99

12

AXLE, DRIVE (40T)

3FA-17421-00-00

Unavailable

13

WASHER, PLATE (3X0)

90201-252A4-00

Unavailable

14

BEARING, CYLINDRICAL (5F7)

93311-43048-00

$64.99

15

BEARING

93306-20532-00

$66.99

16

HOUSING, BEARING

3FA-17551-00-00

Unavailable

17

GASKET, HOUSING CAP

3FA-17519-10-00

Unavailable

18

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

19

NUT(52G)

90179-55464-00

Unavailable

20

PLATE, COVER

3FA-17471-01-00

Unavailable

21

COLLAR(3FA)

90387-251W4-00

Unavailable

22

OIL SEAL (5F7)

93102-30243-00

Unavailable

23

SPROCKET,DRIVE 12T(38V1746120)

93834-12016-00

Unavailable

24

WASHER, LOCK (23X)

90215-21239-00

Unavailable

25

NUT (2K7)

90179-20255-00

Unavailable

26

COUNTER AXLE ASSY (15T)

3FA-17430-00-00

Unavailable

27

BEARING (7X9)

93306-20327-00

Unavailable

28

BEARING

93306-30212-00

Unavailable
