Description

Price

1

COLUMN, STEERING 2

1C5-23813-20-00

Unavailable

2

PLUG, TAPER(3FA)

90336-22056-00

Unavailable

3

HOLDER, HANDLE LOWER

2HR-23442-00-98

Unavailable

4

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

5

BOLT, FLANGE

95817-08050-00

$2.44

6

PLANE BEARING, STEERING

1UY-23812-00-00

$24.99

7

OIL SEAL(1UY)

93112-31011-00

$9.49

8

BRACKET, STEERING LOWER

3FA-23868-30-00

Unavailable

9

BOLT, HEXAGON

97017-08060-00

Unavailable

10

WASHER, LOCK 1

1UY-23894-01-00

$7.99

11

COLLAR(85G)

90387-106T4-00

$14.99

12

WASHER, PLATE

90201-10036-00

$7.49

13

NUT, SELF-LOCKING

90185-10019-00

$8.49

14

PIN, COTTER

91490-20025-00

$1.99

15

ROD, TIE

3FA-23831-10-00

Unavailable

16

JOINT, UNIVERSAL 1

1UY-23841-01-00

Unavailable

17

NUT (682)

95380-10700-00

Unavailable

18

JOINT, UNIVERSAL 2

1UY-23845-01-00

Unavailable

19

NUT

90170-10010-00

Unavailable

20

ROD, TIE

3FA-23831-10-00

Unavailable

21

JOINT, UNIVERSAL 1

1UY-23841-01-00

Unavailable

22

NUT (682)

95380-10700-00

Unavailable

23

JOINT, UNIVERSAL 2

1UY-23845-01-00

Unavailable

24

NUT

90170-10010-00

Unavailable

25

NUT, CASTLE

90171-10001-00

Unavailable

26

WASHER, PLATE

92990-10600-00

Unavailable

27

PIN, COTTER

91490-20025-00

$1.99

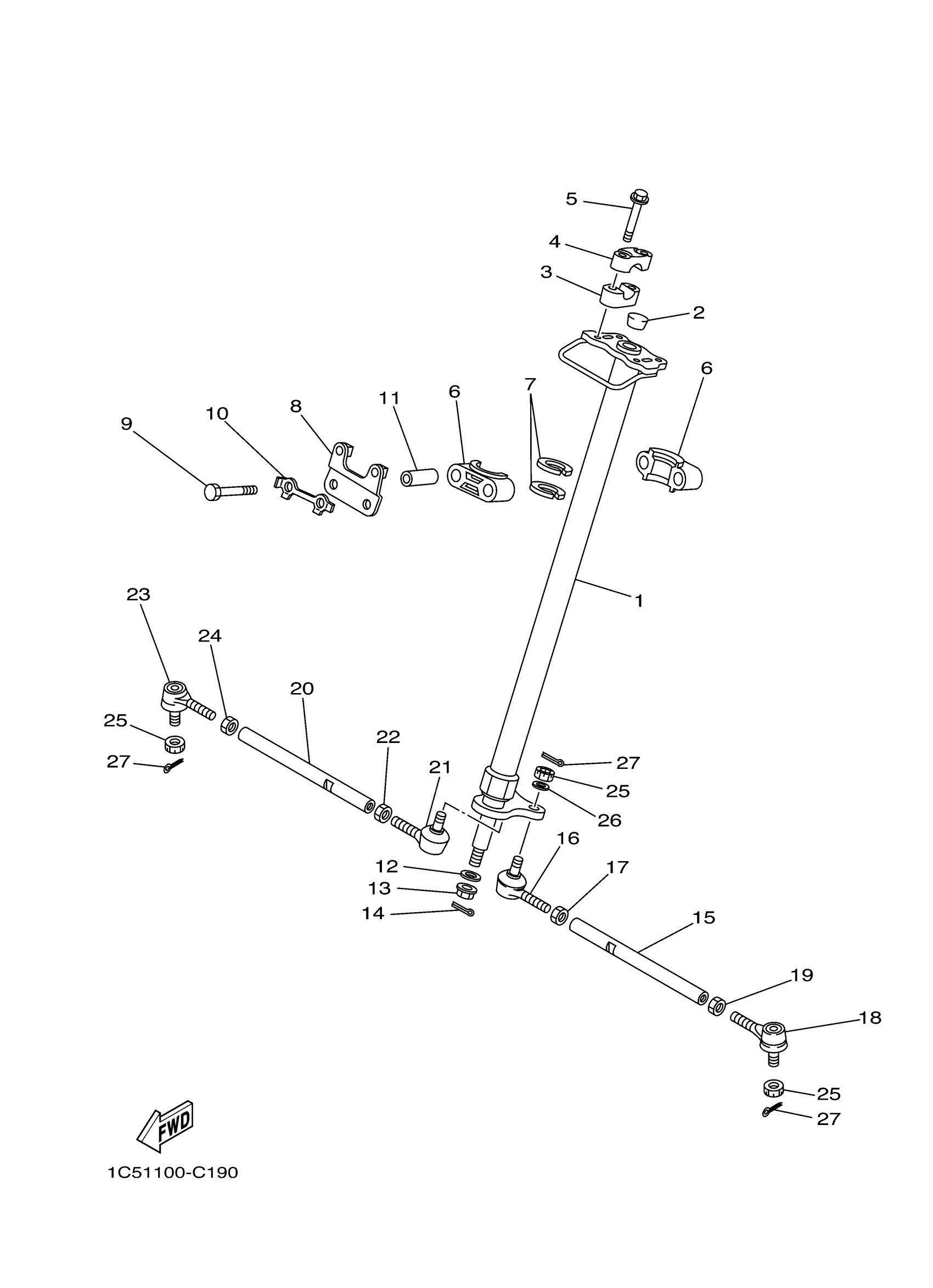

Yamaha YFM125GDGR (GRIZZLY 125) 1PY4 2013 STEERING Diagram

COLUMN, STEERING 2

PLUG, TAPER(3FA)

HOLDER, HANDLE LOWER

HOLDER, HANDLE UPPER

BOLT, FLANGE

PLANE BEARING, STEERING

OIL SEAL(1UY)

BRACKET, STEERING LOWER

BOLT, HEXAGON

WASHER, LOCK 1

COLLAR(85G)

WASHER, PLATE

NUT, SELF-LOCKING

PIN, COTTER

ROD, TIE

JOINT, UNIVERSAL 1

NUT (682)

JOINT, UNIVERSAL 2

NUT

ROD, TIE

JOINT, UNIVERSAL 1

NUT (682)

JOINT, UNIVERSAL 2

NUT

NUT, CASTLE

WASHER, PLATE

PIN, COTTER
