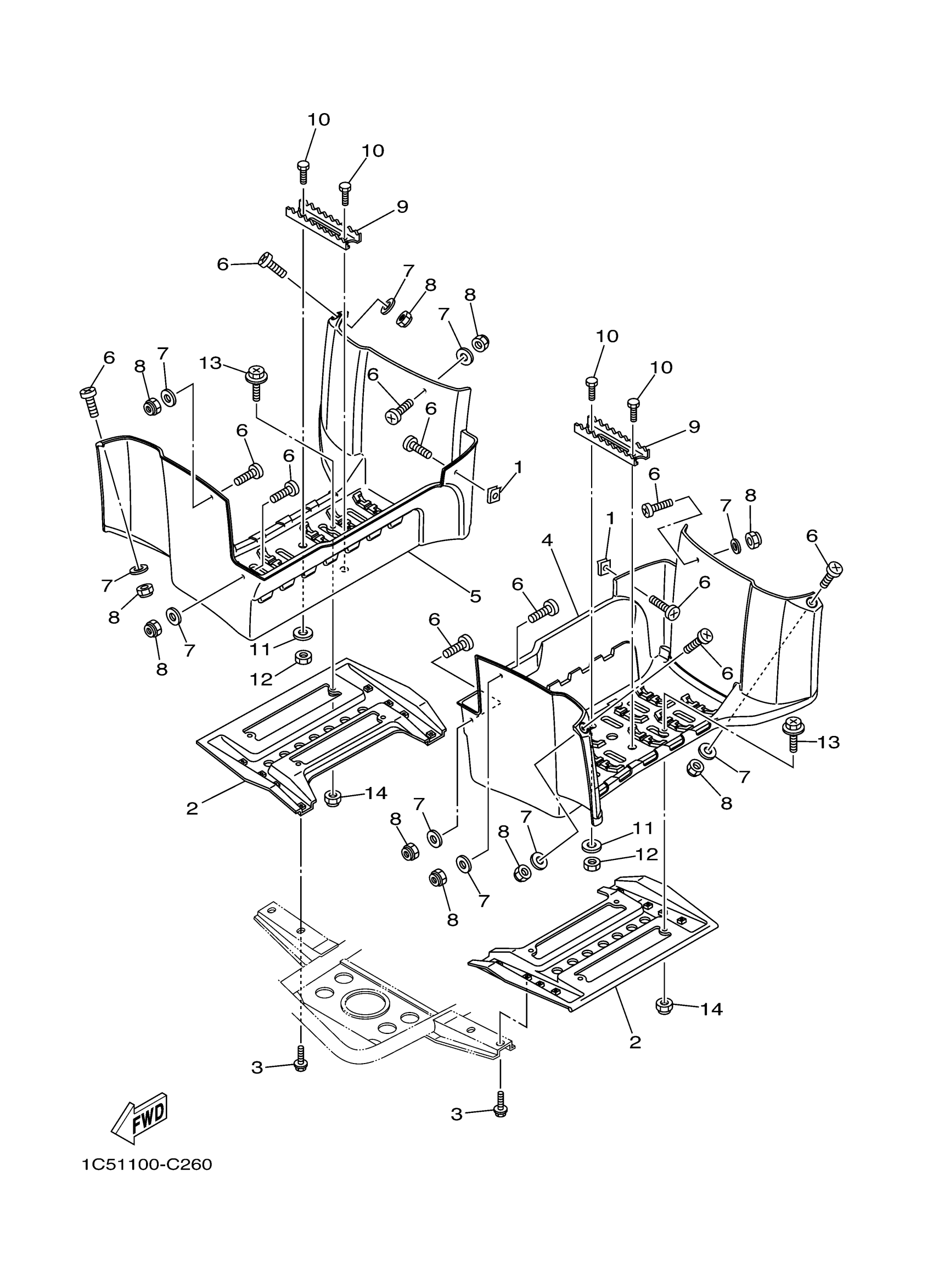

Yamaha YFM125GDGR (GRIZZLY 125) 1PY4 2013 STAND FOOTREST Diagram

#

Description
Price

1

NUT, SPRING(4ES)

90183-06069-00

Unavailable

2

FOOTREST 1

3FA-27411-10-00

Unavailable

3

BOLT, FLANGE

95817-08014-00

$5.60

4

COVER 1

1C5-27453-00-00

Unavailable

5

COVER 2

1C5-27463-00-00

Unavailable

6

SCREW, BIND (J17)

98980-06020-00

$8.49

7

WASHER, PLATE

90201-06032-00

$8.49

8

NUT, NYLON

95707-06300-00

$3.50

9

ARM 1

5GH-2741A-10-00

Unavailable

10

BOLT

90109-06214-00

$7.49

11

WASHER, PLATE

90201-06033-00

$2.97

12

NUT(6TA)

95317-06600-00

$3.55

13

BOLT, WITH WASHER

90119-05021-00

$5.60

14

NUT, NYLON

95707-05300-00

$4.24
