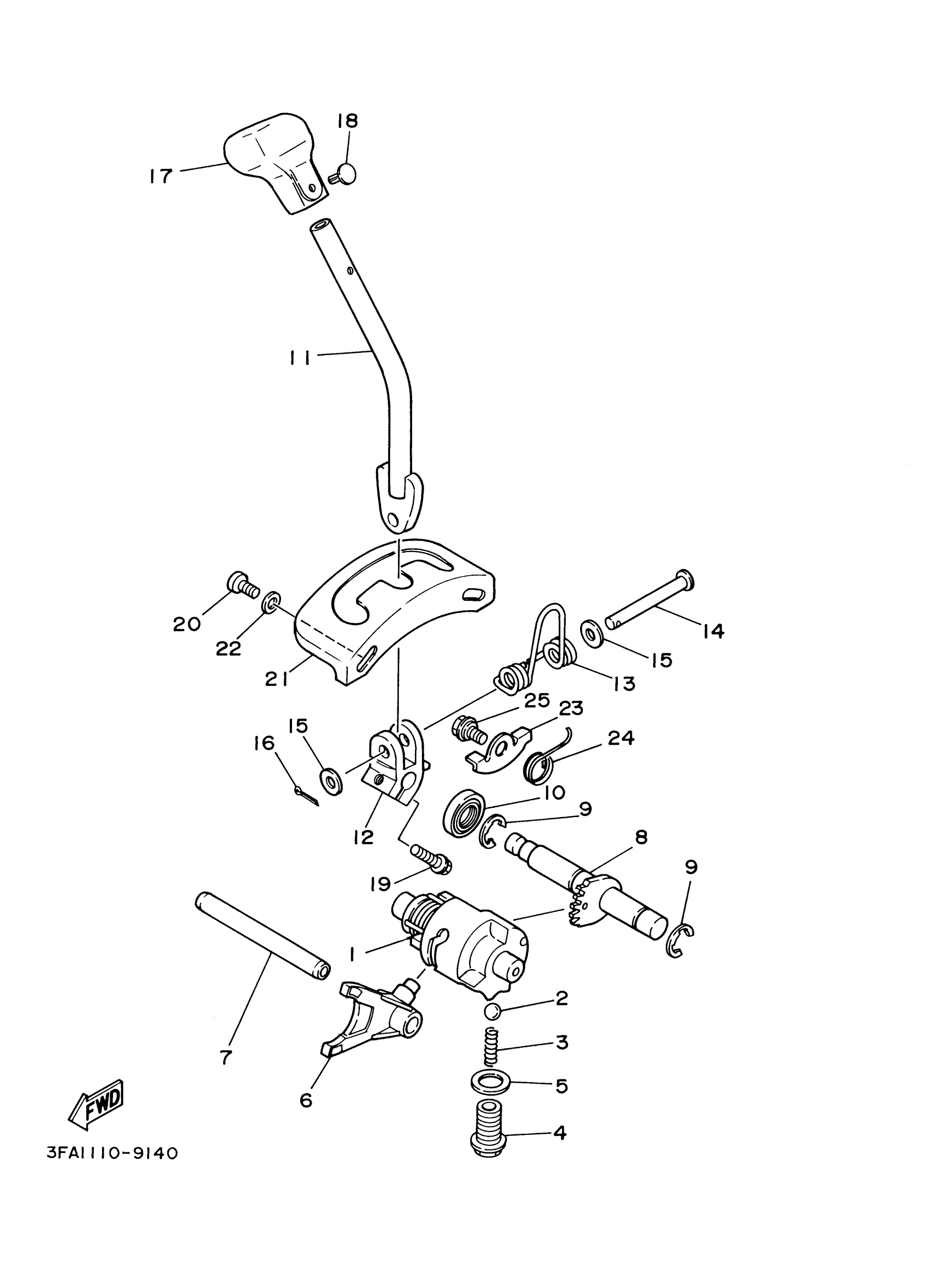

Yamaha YFM125GBL (GRIZZLY 125) 1PY1 2012 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

3FA-18540-00-00

$100.99

2

BALL

93503-08007-00

$4.15

3

SPRING, COMPRESSION (465)

90501-10353-00

$9.49

4

BOLT, FLANGE

90105-14003-00

$8.49

5

GASKET(59V)

90430-14194-00

$8.49

6

FORK, SHIFT 2

4GB-18512-00-00

Unavailable

7

BAR, SHIFT FORK GUIDE 2

1HX-18535-00-00

$11.99

8

SHIFT SHAFT ASSY

3FA-18101-01-00

$31.99

9

. CIRCLIP

99001-12600-00

Unavailable

10

OIL SEAL (3Y1)

93102-14209-00

$11.49

11

LEVER, SHIFT 4

3FA-18152-00-00

$28.99

12

KNOB, SHIFTER

3FA-18164-00-00

$35.99

13

SPRING, TORSION(3FA)

90508-29760-00

$8.49

14

PIN, CLEVIS(3FA)

91701-08058-00

Unavailable

15

.. WASHER, PLATE

92990-08600-00

Unavailable

16

PIN, COTTER

91490-25020-00

Unavailable

17

KNOB, SHIFT LEVER

3FA-18174-00-00

Unavailable

18

RIVET(81E)

90269-05055-00

Unavailable

19

BOLT, FLANGE

95822-06025-00

Unavailable

20

BOLT(3MA)

91312-06016-00

Unavailable

21

BRACKET

3FA-18128-00-00

Unavailable

22

WASHER, PLAIN (646)

92990-06600-00

Unavailable

23

LEVER

3FA-18191-00-00

Unavailable

24

SPRING, TORSION(3FA)

90508-12761-00

Unavailable

25

BOLT

90109-06190-00

Unavailable
