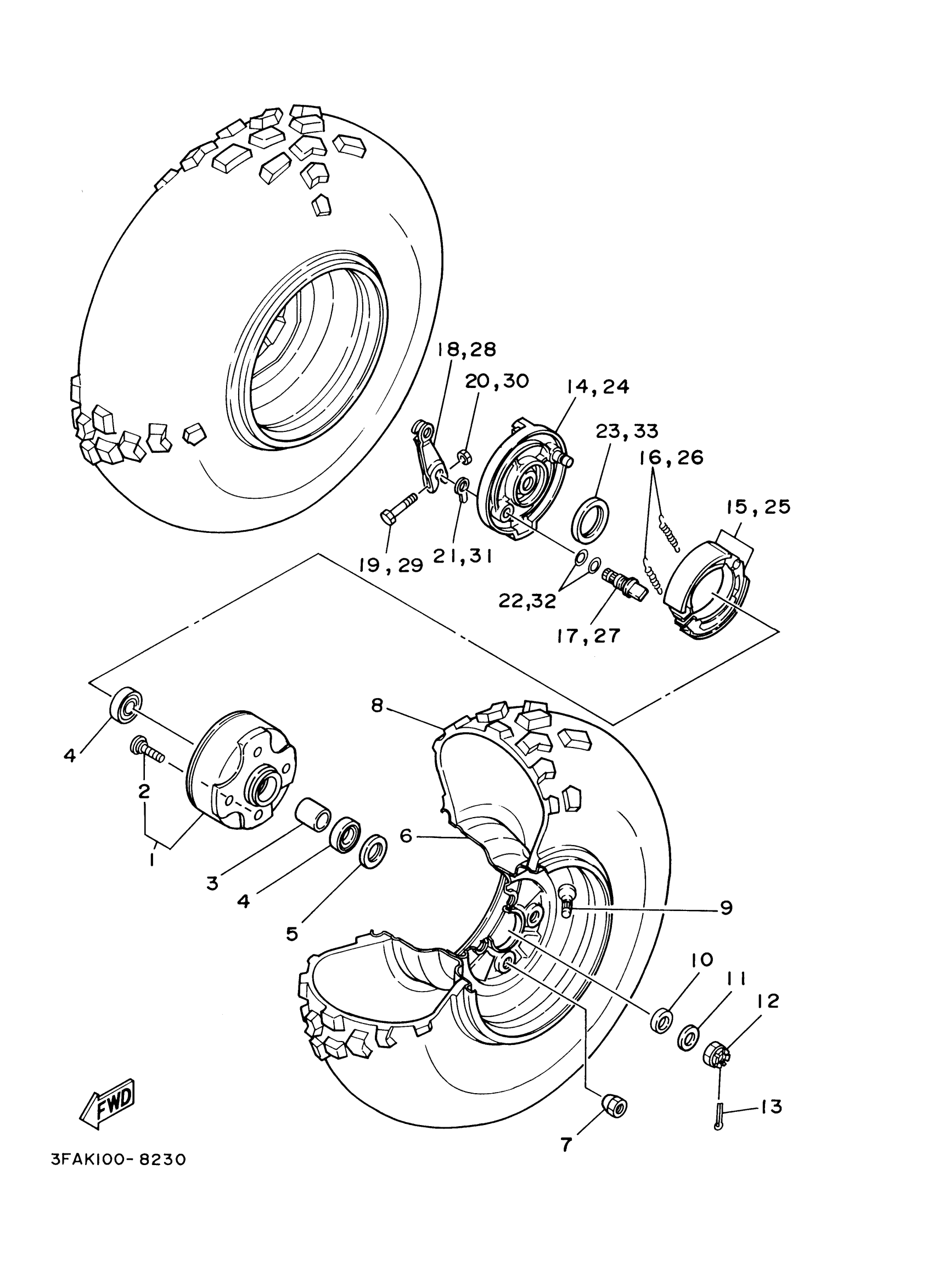

Yamaha YFM125GBL (GRIZZLY 125) 1PY1 2012 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

1C5-25111-00-00

$194.86

2

BOLT, SERRATION

90114-10014-00

$2.70

3

SPACER, BEARING

2FJ-25117-00-00

Unavailable

4

BEARING(2JN)

93306-00315-00

$26.06

5

OIL SEAL (21V)

93102-23275-00

$11.61

6

WHEEL COMP.

3FA-25180-00-98

$218.58

7

NUT

90179-10022-00

$3.04

8

TIRE (AT20X7-8 DI-K635A T/L)

94107-08009-00

$121.44

9

VALVE, RIM(2GH)

93900-00030-00

$13.50

10

COLLAR

90387-175R2-00

$9.86

11

WASHER PLATE 248181370000

90201-14220-00

$5.75

12

NUT, CASTLE

90171-14002-00

$7.11

13

PIN, COTTER

91401-30025-00

$6.09

14

PLATE, BRAKE SHOE

3FA-25121-00-00

Unavailable

15

BRAKE SHOE KIT

4BE-W253E-00-00

$21.37

16

SPRING, TENSION

90506-15260-00

Unavailable

17

CAMSHAFT

5G3-25351-02-00

Unavailable

18

LEVER, CAMSHAFT 1

3FA-25155-00-00

Unavailable

19

BOLT

90101-06046-00

Unavailable

20

NUT, HEXAGON

95380-06600-00

$4.11

21

PLATE, INDICATOR

52H-2513A-00-00

Unavailable

22

O-RING(3LD)

93210-12790-00

Unavailable

23

OIL SEAL(3BC)

93106-40027-00

Unavailable

24

PLATE, BRAKE SHOE 2

3FA-25169-00-00

Unavailable

25

BRAKE SHOE KIT

4BE-W253E-00-00

$21.37

26

SPRING, TENSION

90506-15260-00

Unavailable

27

CAMSHAFT

5G3-25351-02-00

Unavailable

28

LEVER, CAMSHAFT 2

3FA-25156-00-00

Unavailable

29

BOLT

90101-06046-00

Unavailable

30

NUT, HEXAGON

95380-06600-00

$4.11

31

PLATE, INDICATOR

52H-2513A-00-00

Unavailable

32

O-RING(3LD)

93210-12790-00

Unavailable

33

OIL SEAL(3BC)

93106-40027-00

Unavailable
