Description

Price

1

FRONT FENDER COMP.

1C5-W2151-12-00

Unavailable

2

BOLT

90109-06172-00

$7.49

3

BOLT, WITH WASHER

90119-06147-00

$1.13

4

COLLAR

90387-06153-00

$7.49

5

PANEL, FRONT

1C5-23391-00-00

$91.99

6

RIVET(4JH)

90269-07076-00

$7.49

7

GRILLE, FRONT

1C5-28309-00-00

$128.99

8

BOLT, WITH WASHER

90119-06201-00

$8.49

9

NUT, SPRING

90183-060A7-00

$8.49

10

SCREW, ROUND HEAD

90150-06016-00

$7.49

11

NUT, SPRING(4ES)

90183-06069-00

Unavailable

12

CAP

5GH-28349-00-00

$10.99

13

CAP, CLEANER CASE 2

3FA-14422-10-00

$34.99

14

ELEMENT, AIR CLEANER 2

3FA-14461-00-00

$15.49

15

SCREW, PAN HEAD

98517-05020-00

$4.25

16

WASHER, PLAIN (646)

92990-05600-00

Unavailable

17

TUNING FORK MARK

5KM-2175B-00-00

Unavailable

18

TUNING FORK MARK

5GT-2836B-10-00

Unavailable

19

COVER, TOP

1C5-2171A-10-00

Unavailable

20

NUT, SPRING(4ES)

90183-06069-00

Unavailable

21

SCREW, ROUND HEAD

90150-06016-00

$7.49

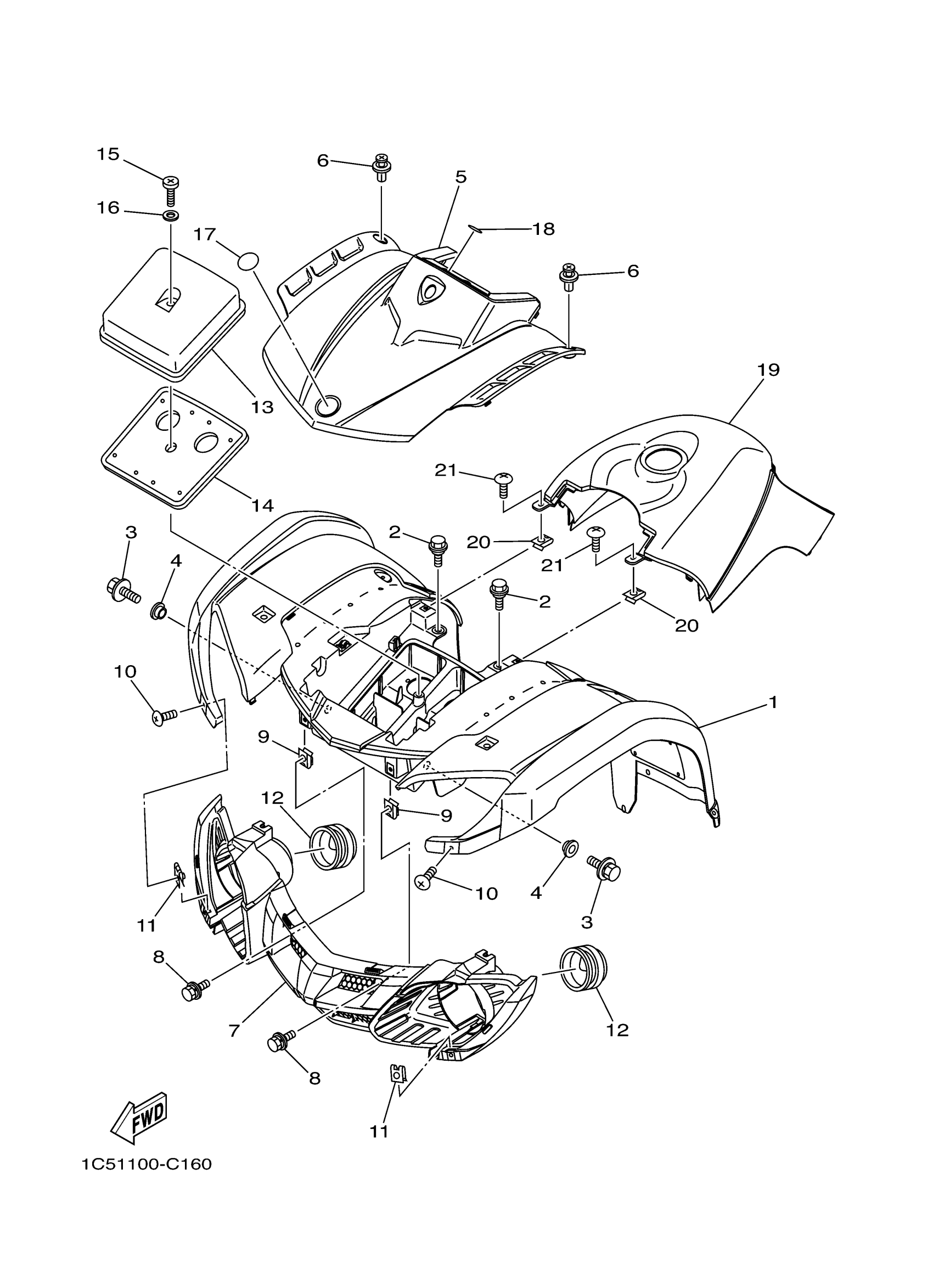

Yamaha YFM125GBL (GRIZZLY 125) 1PY1 2012 FRONT FENDER Diagram

FRONT FENDER COMP.

BOLT

BOLT, WITH WASHER

COLLAR

PANEL, FRONT

RIVET(4JH)

GRILLE, FRONT

BOLT, WITH WASHER

NUT, SPRING

SCREW, ROUND HEAD

NUT, SPRING(4ES)

CAP

CAP, CLEANER CASE 2

ELEMENT, AIR CLEANER 2

SCREW, PAN HEAD

WASHER, PLAIN (646)

TUNING FORK MARK

TUNING FORK MARK

COVER, TOP

NUT, SPRING(4ES)

SCREW, ROUND HEAD
