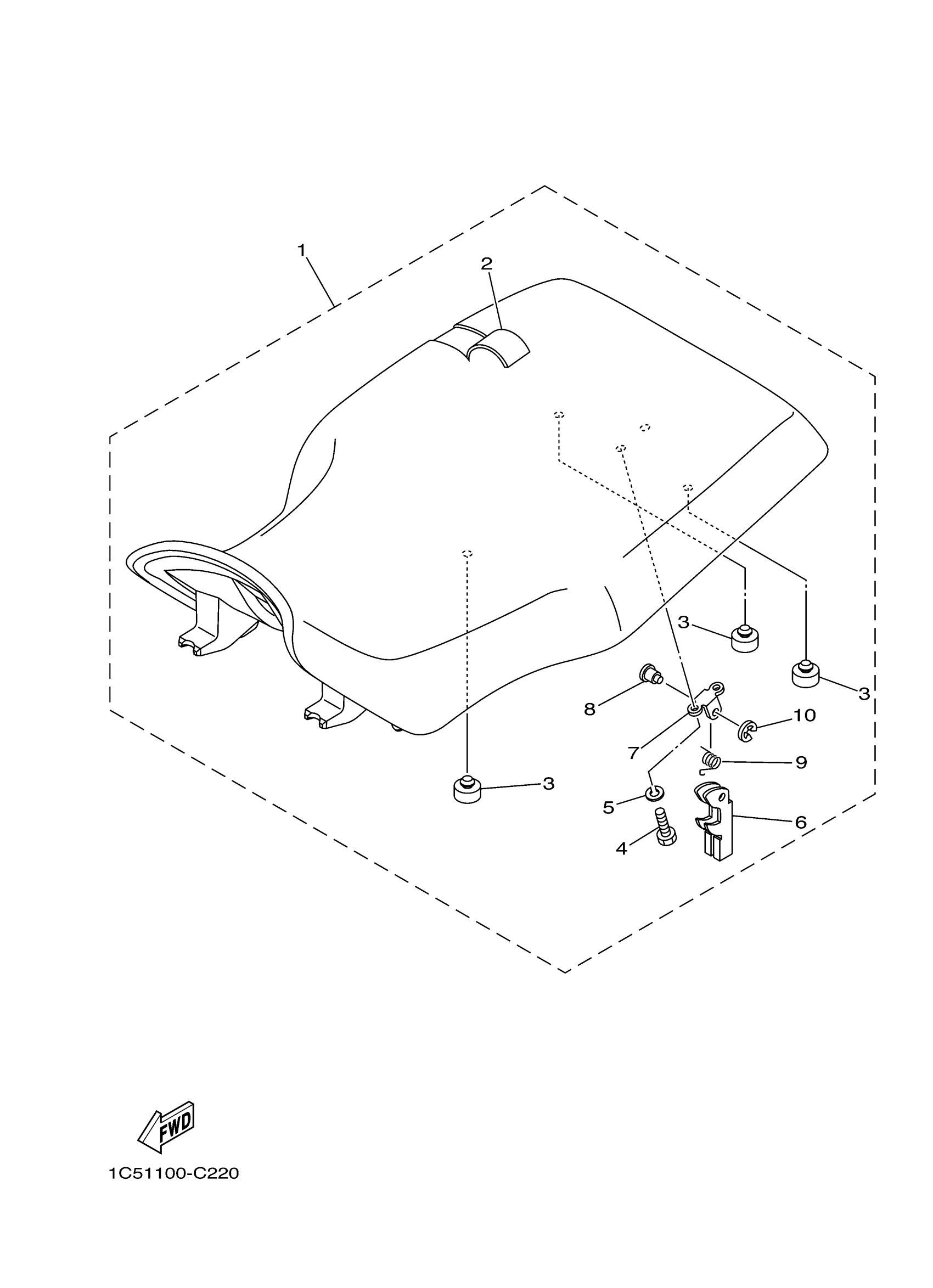

Yamaha YFM125GAL (GRIZZLY 125) 1C5U0 2011 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

1C5-24710-10-00

Unavailable

2

COVER, SEAT

1C5-24731-01-00

Unavailable

3

STOPPER, MAIN STAND

371-27114-00-00

$5.42

4

BOLT (661)

97013-06012-00

$4.40

5

WASHER, SPRING

92995-06100-00

$2.95

6

LEVER, SEAT

29U-24776-00-00

Unavailable

7

BRACKET, SEAT LEVER

4K0-24775-00-00

Unavailable

8

PIN

4K0-24774-01-00

Unavailable

9

SPRING, TORSION(3FA)

90508-20779-00

$4.24

10

CIRCLIP (EU0)

99080-04600-00

$1.70
