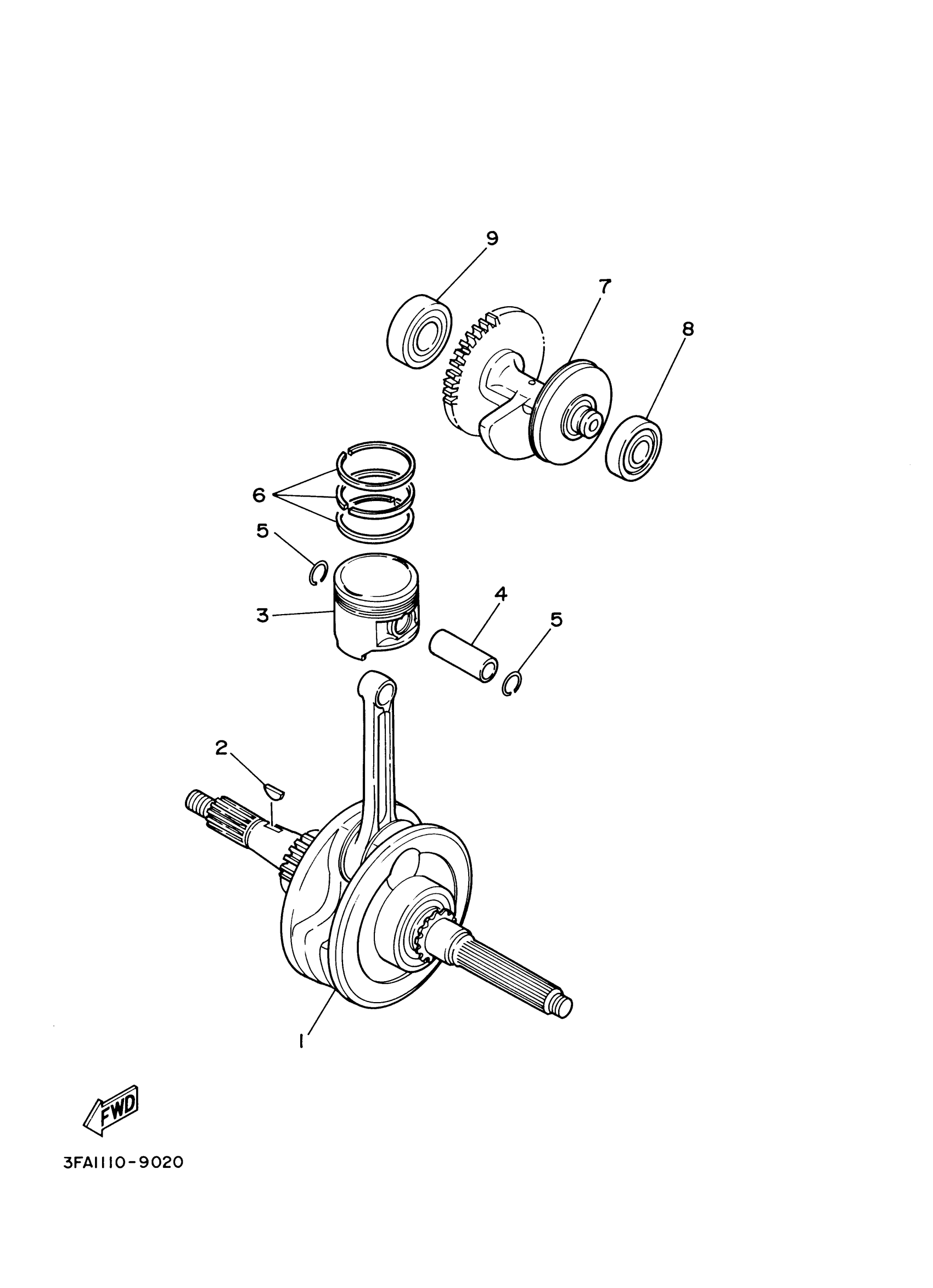

Yamaha YFM125GAL (GRIZZLY 125) 1C5U0 2011 CRANKSHAFT PISTON Diagram

CRANKSHAFT ASSY

3FA-11400-00-00

$576.99

KEY, WOODRUFF(1WG)

90280-03047-00

$5.60

PISTON (STD)

3FA-11631-00-A0

$99.99

PISTON (0.50MM O/S)

3FA-11636-00-00

Unavailable

PISTON (1.00MM O/S)

3FA-11638-00-00

Unavailable

PIN, PISTON

22K-11633-01-00

$28.99

CIRCLIP (22F)

93450-14088-00

$4.08

PISTON RING SET (STD)

50M-11610-00-00

$69.99

PISTON RING SET (2ND O/S)

50M-11610-20-00

$69.99

PISTON RING SET (4TH O/S)

50M-11610-40-00

$47.99

BALANCER ASSY

3FA-11500-00-00

Unavailable

BEARING

93306-20228-00

Unavailable

BEARING(50M)

93306-20336-00

$32.99
