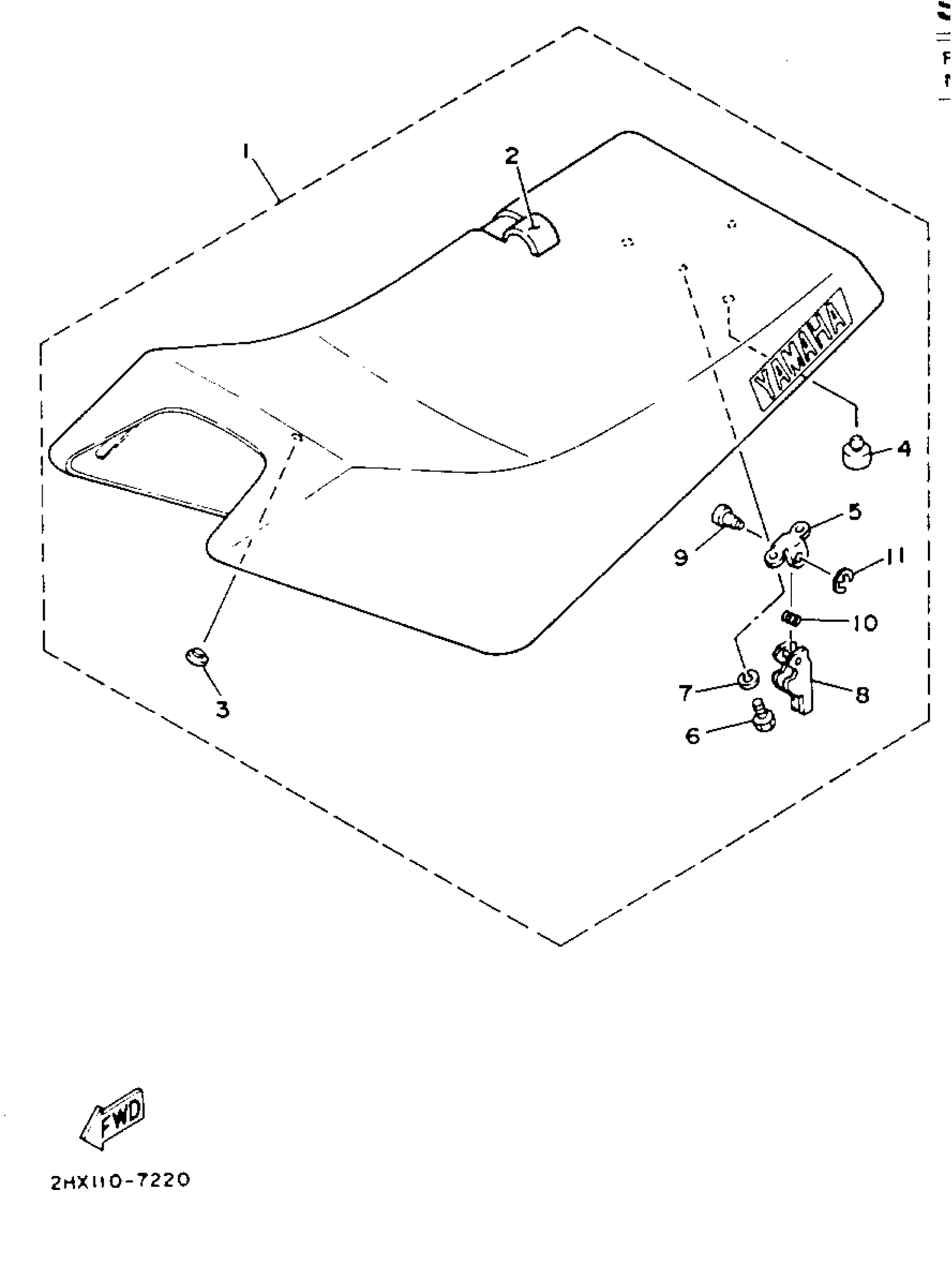

Yamaha YFM100W (CHAMP) 1989 SEAT Diagram

#

Description

Price

1

SEMI-DBL SEAT ASY

3GB-24710-20-00

Unavailable

1

SINGLE SEAT ASSY

3GB-24710-10-00

Unavailable

2

. COVER, DOUBLE SEAT

2HX-24731-20-00

Unavailable

2

COVER,DOUBLE SEAT

3GB-24731-10-00

Unavailable

3

DAMPER, SEAT

3L7-24724-00-00

$7.99

4

STOPPER, MAIN STAND

371-27114-00-00

$7.99

5

BRACKET, SEAT LEVER

4K0-24775-00-00

Unavailable

6

BOLT (661)

97013-06012-00

$5.60

7

WASHER, SPRING

92995-06100-00

Unavailable

8

LEVER, SEAT

29U-24776-00-00

Unavailable

9

PIN

4K0-24774-01-00

Unavailable

10

SPRING, TORSION (24W)

90508-20454-00

Unavailable

11

CIRCLIP (EU0)

99080-04600-00

Unavailable
