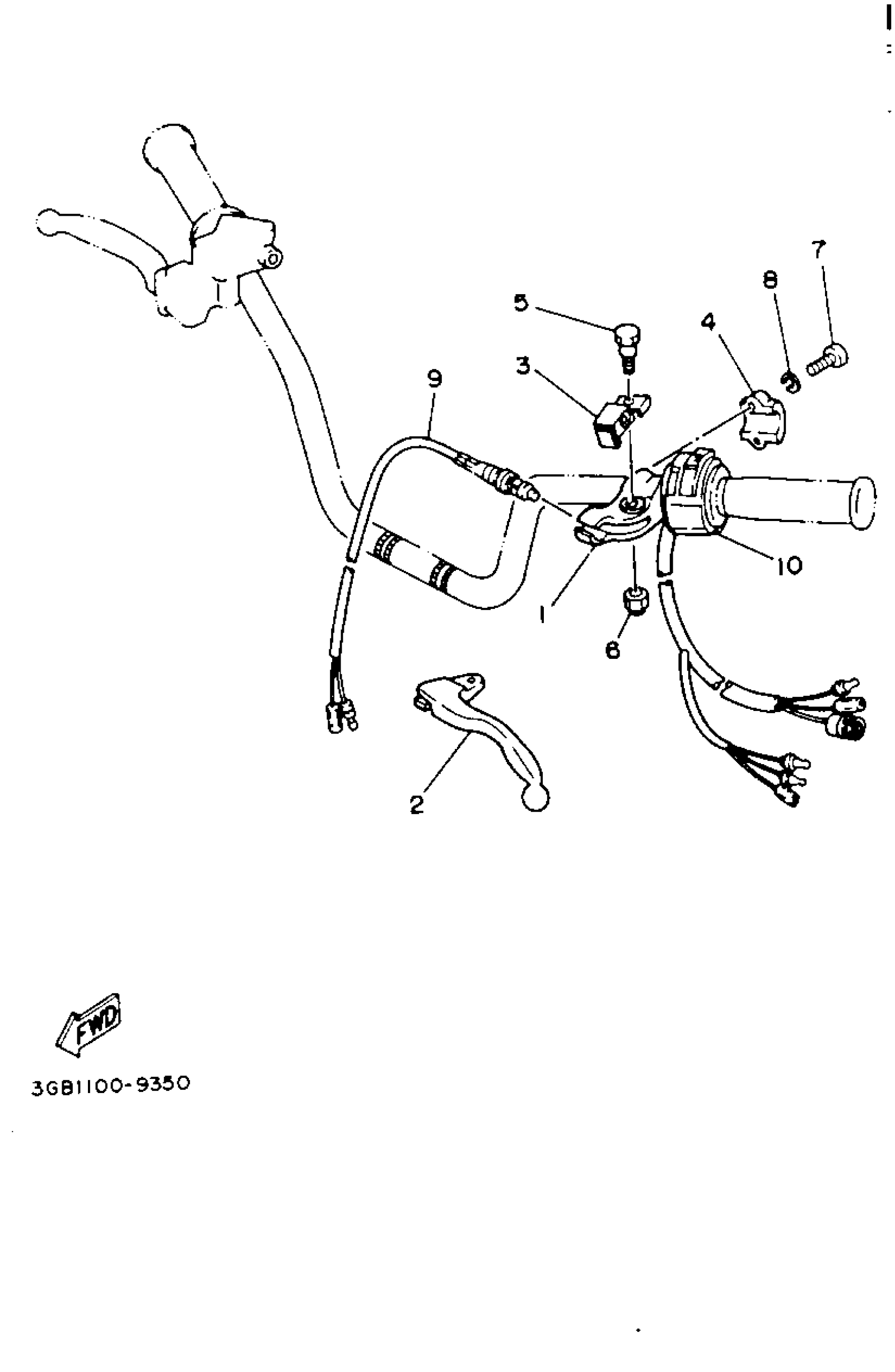

Yamaha YFM100W (CHAMP) 1989 HANDLE SWITCH - LEVER Diagram

#

Description
Price

1

HOLDER SET, LEVER 1

99999-03034-00

$84.76

2

LEVER 1

1NV-83912-02-00

$23.28

3

LEVER, LOCK

3X3-83965-00-00

$25.97

4

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

5

BOLT(1FG)

90109-06798-00

$5.84

6

NUT, SELF-LOCKING

95617-06100-00

$2.17

7

SCREW, PAN HEAD

98517-05020-00

$1.26

8

WASHER(3SX)

92907-05100-00

$5.76

9

FRONT STOP SWITCH ASSY

1YW-83980-00-00

$58.58

10

SWITCH, HANDLE 3

2HX-83973-09-00

Unavailable
