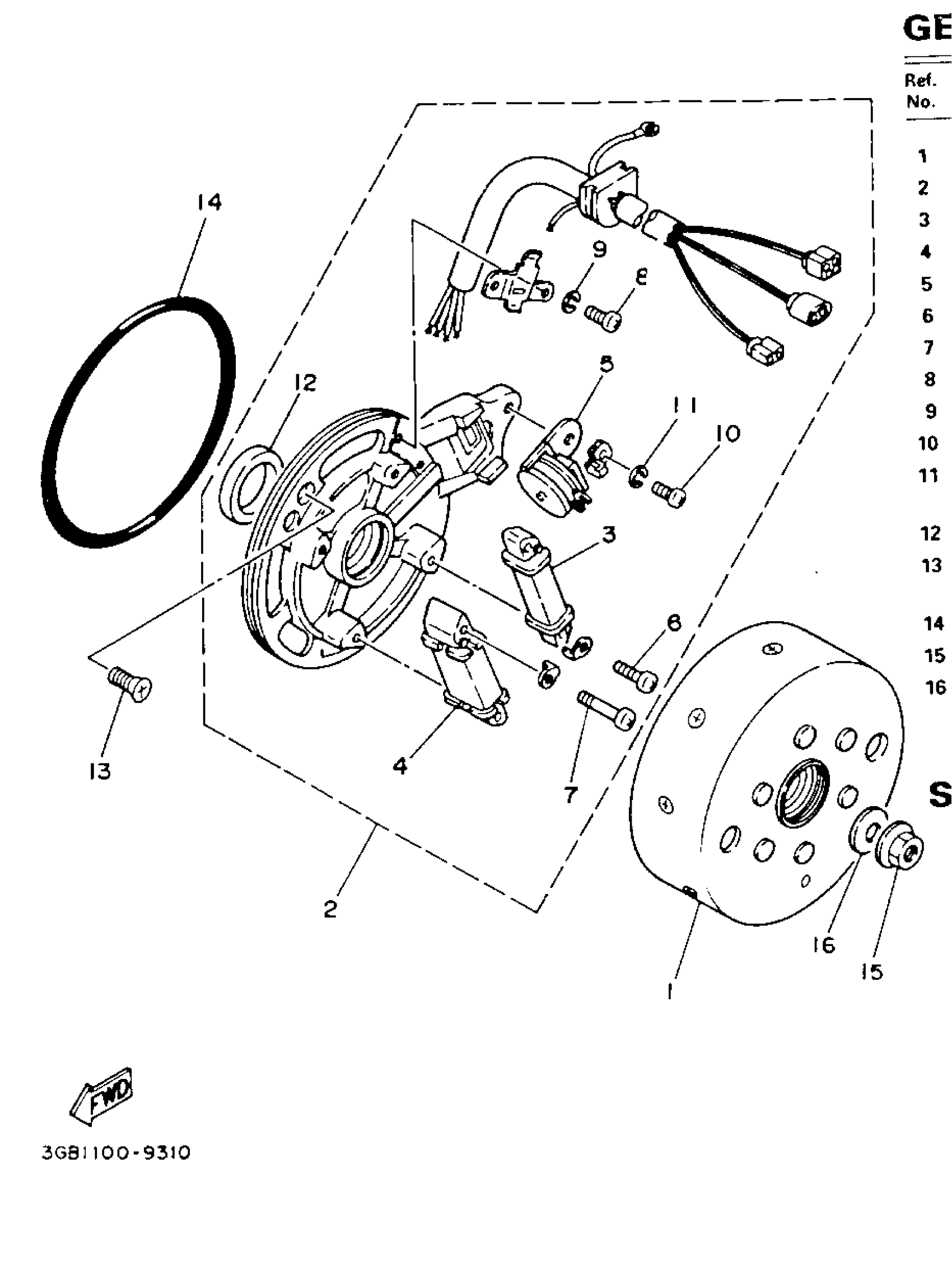

Yamaha YFM100W (CHAMP) 1989 GENERATOR Diagram

#

Description
Price

1

ROTOR ASSEMBLY

3GB-85550-00-00

Unavailable

2

BASE ASSEMBLY

3GB-85560-10-00

Unavailable

3

COIL, CHARGE

5G3-85520-M2-00

Unavailable

4

COIL, LIGHTING 1

55X-81313-M0-00

$70.58

5

COIL, PULSER

22K-85595-M0-00

$53.34

6

SCREW, PAN HEAD

98511-04012-00

Unavailable

7

SCREW, PAN HEAD

98517-04025-00

$2.75

8

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

9

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

10

SCREW, PAN HEAD(62X)

97885-05010-00

$2.80

11

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

12

OIL SEAL (22F)

93102-19276-00

$9.25

13

SCREW, FLAT

98707-06014-00

$5.76

14

O-RING(55X)

93211-02703-00

$8.37

15

NUT(3EF)

90179-12657-00

$4.96

16

WASHER, PLATE(1HR)

90201-123L6-00

Unavailable
