Description

Price

1

FUEL TANK COMP.

2HX-24110-00-00

Unavailable

2

CAP ASSY

2FJ-24610-20-00

$68.99

3

HOSE (L1500)

90445-090F6-00

$31.99

4

GROMMET (4V1)

90480-18290-00

$8.49

5

COLLAR (1T2)

90387-07598-00

$5.60

6

WASHER PLATE 137241870000

90201-06072-00

$9.49

7

BOLT, HEXAGON

97017-06030-00

$3.61

8

WASHER, SPRING

92995-06100-00

Unavailable

9

GROMMET(38W)

90480-01400-00

$13.49

10

WASHER, PLATE

90201-06090-00

$5.60

11

FUEL COCK ASSY 1

55X-24500-02-00

$42.99

12

O-RING

4X8-24534-00-00

$13.49

13

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

14

O-RING

4X8-24512-00-00

$8.99

15

WASHER, PLATE(3MB)

90202-05187-00

$1.38

16

SCREW 256241430000

90149-06011-00

Unavailable

17

HOSE (L200)

90445-10752-00

Unavailable

18

CLIP

90467-090A2-00

Unavailable

19

SPRING, COMPRESSION (1J7)

90504-06030-00

Unavailable

20

SEAT, BATTERY

5Y1-82122-00-00

Unavailable

21

DAMPER 1

88T-77198-00-00

Unavailable

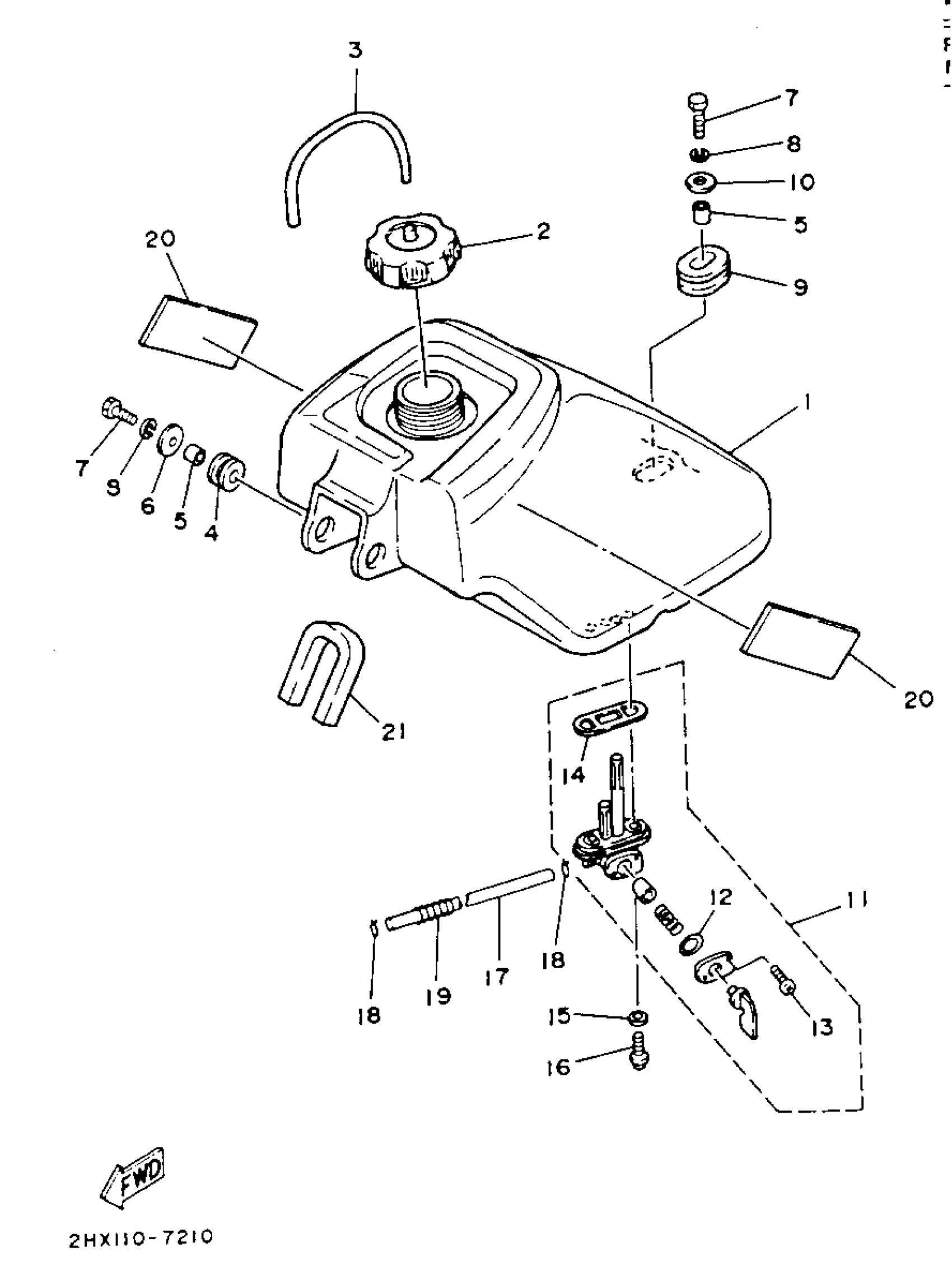

Yamaha YFM100W (CHAMP) 1989 FUEL TANK Diagram

FUEL TANK COMP.

CAP ASSY

HOSE (L1500)

GROMMET (4V1)

COLLAR (1T2)

WASHER PLATE 137241870000

BOLT, HEXAGON

WASHER, SPRING

GROMMET(38W)

WASHER, PLATE

FUEL COCK ASSY 1

O-RING

SCREW, PAN HEAD (J10)

O-RING

WASHER, PLATE(3MB)

SCREW 256241430000

HOSE (L200)

CLIP

SPRING, COMPRESSION (1J7)

SEAT, BATTERY

DAMPER 1
