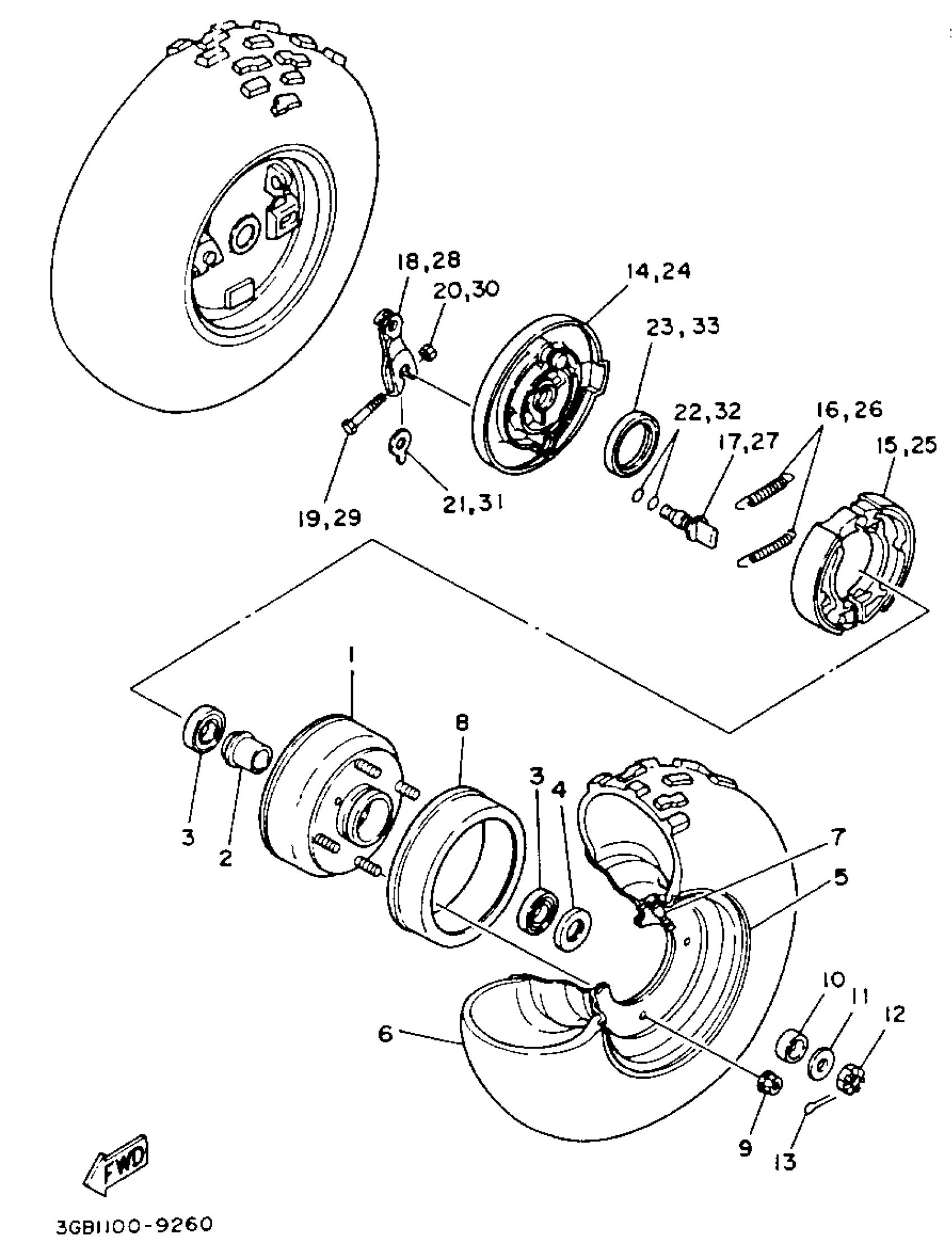

Yamaha YFM100W (CHAMP) 1989 FRONT WHEEL Diagram
#
Description
Price
1
HUB, FRONT
2FJ-25111-00-00
Unavailable
5
WHEEL COMP.
2FJ-25180-00-35
Unavailable
6
UNAVAILABLE IN PRICE BOOK (AT 18X7-7)
[94-10707-3R-20
Unavailable
6
TIRE (AT18X7-7) (94107-073Y9-00)
94107-073W8-00
Unavailable
8
RING 1
3GB-25185-00-00
Unavailable
10
COLLAR
90387-175R2-00
Unavailable
14
PLATE, BRAKE SHOE
2FJ-25121-00-00
Unavailable
15
BRAKE SHOE KIT
4BE-W253E-00-00
Unavailable
16
SPRING, TENSION
90506-15260-00
Unavailable
17
CAMSHAFT
3GB-25151-00-00
Unavailable
18
LEVER, CAMSHAFT 1
2FJ-25155-00-00
Unavailable
19
BOLT, HEXAGON (538)
90101-06278-00
Unavailable
20
NUT, HEXAGON
95380-06600-00
Unavailable
21
PLATE, INDICATOR
52H-2513A-00-00
Unavailable
22
O-RING(3LD)
93210-12790-00
Unavailable
23
OIL SEAL(3BC)
93106-40027-00
Unavailable
24
PLATE, BRAKE SHOE 2
2FJ-25169-00-00
Unavailable
25
BRAKE SHOE KIT
4BE-W253E-00-00
Unavailable
26
SPRING, TENSION
90506-15260-00
Unavailable
27
CAMSHAFT
3GB-25151-00-00
Unavailable
28
LEVER, CAMSHAFT 2
2FJ-25156-00-00
Unavailable
29
BOLT, HEXAGON (538)
90101-06278-00
Unavailable
30
NUT, HEXAGON
95380-06600-00
Unavailable
31
PLATE, INDICATOR
52H-2513A-00-00
Unavailable
32
O-RING(3LD)
93210-12790-00
Unavailable
33
OIL SEAL(3BC)
93106-40027-00
Unavailable
