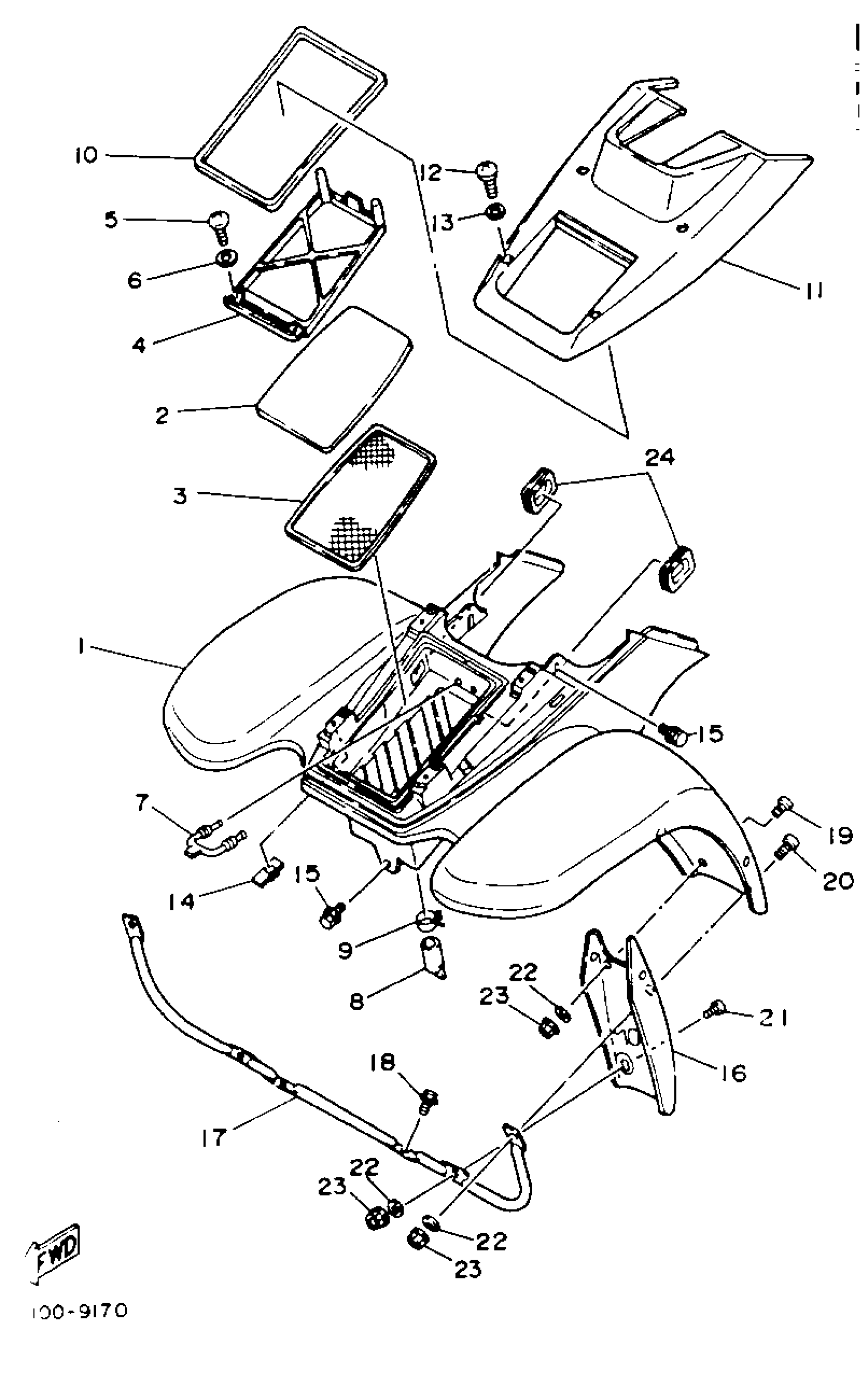

Yamaha YFM100W (CHAMP) 1989 FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT

2HX-W2151-20-00

Unavailable

1

FENDER, FRONT

3GB-21511-00-00

Unavailable

2

ELEMENT, AIR CLEANER

55X-14451-00-00

$9.99

3

PLATE, ELEMENT

55X-14472-01-00

Unavailable

4

GUIDE

55X-14458-00-00

Unavailable

5

SCREW, TAPPING

97780-40116-00

Unavailable

6

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

7

HOOK

55X-14436-00-00

Unavailable

8

SEAL

59V-14457-00-00

$6.99

9

CLIP (21V)

90467-22080-00

$8.49

10

SEAL

1VJ-14462-00-00

$18.49

11

OVER, FENDER

2HX-21551-10-00

Unavailable

11

OVER, FENDER

3GB-21551-00-00

Unavailable

12

SCREW, PAN HEAD(4MY)

98507-05025-00

$8.49

13

WASHER(1RW)

92907-05600-00

$3.78

14

NUT 1

55X-21535-00-00

Unavailable

15

BOLT, WITH WASHER

90119-06152-00

Unavailable

16

FLAP, FRONT FENDER

2HX-21521-01-00

Unavailable

17

STAY, FENDER 1

3GB-21513-00-00

Unavailable

18

BOLT, FLANGE

95812-06010-00

Unavailable

19

SCREW, BINDING(3XV)

90154-05059-00

Unavailable

20

SCREW, BINDING (8G6)

90154-05002-00

Unavailable

21

SCREW, BINDING (8J0)

90154-05005-00

Unavailable

22

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

23

NUT, NYLON

95707-05300-00

Unavailable

24

DUCT

2HX-14437-01-00

Unavailable
