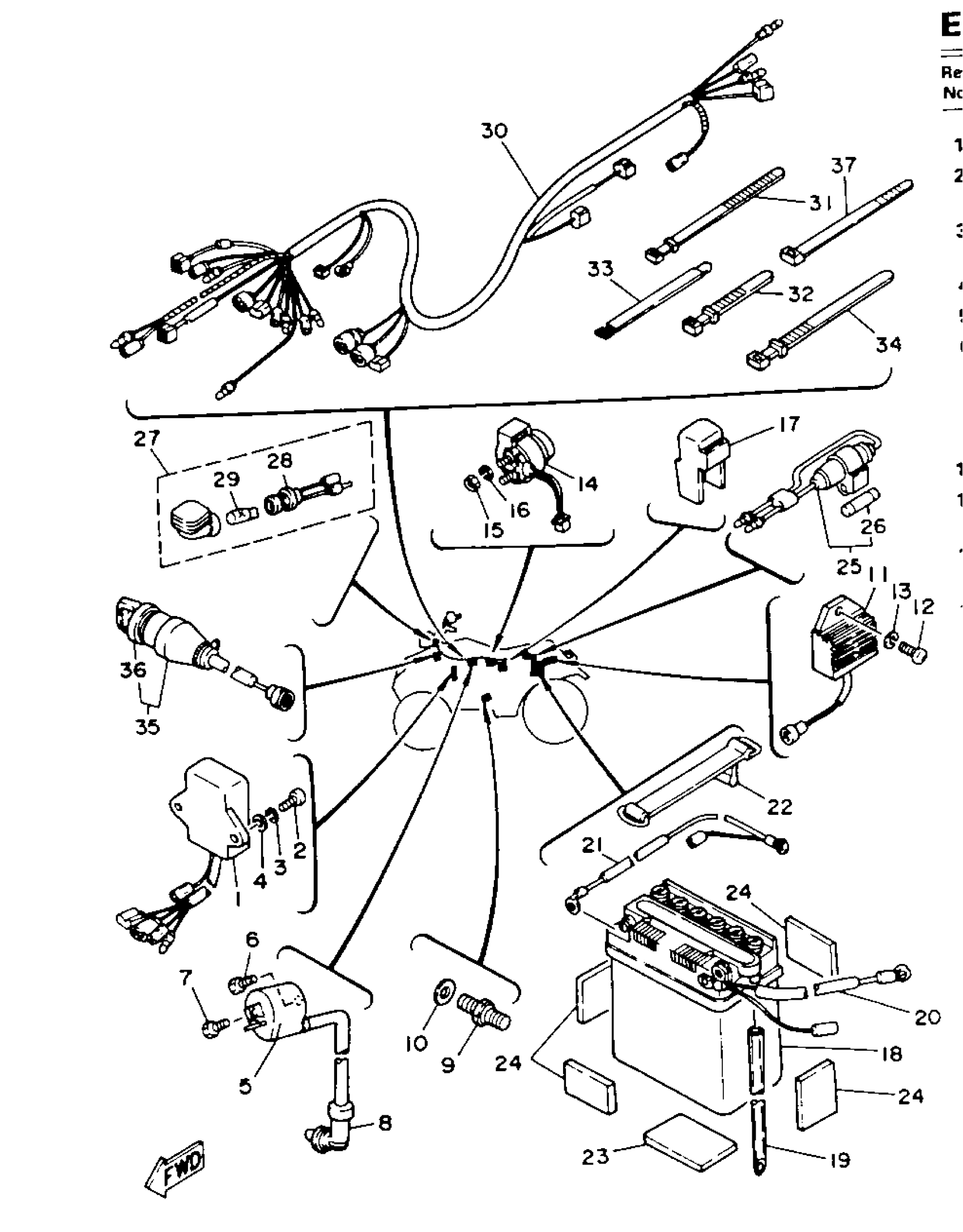

Yamaha YFM100W (CHAMP) 1989 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSEMBLY

3GB-85540-00-00

Unavailable

2

SCREW PAN HEAD

98580-06020-00

$8.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

7

SCREW (5G3)

90153-06034-00

$7.49

8

PLUG CAP ASSY

4BP-82370-01-00

$35.99

9

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

10

GASKET (5R6)

90430-10171-00

$3.18

11

RECTIFIER & REGULATOR ASSEMBLY

3GB-81960-00-00

Unavailable

12

SCREW, PAN

98507-06014-00

$8.49

13

WASHER, SPRING

92995-06100-00

Unavailable

14

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

$115.99

15

NUT(650)

95380-06700-00

$8.49

16

WASHER, SPRING

92995-06100-00

Unavailable

17

RELAY ASSY

12R-81950-02-00

Unavailable

18

BAT 12N7-3B YU

12N-73B00-00-00

Unavailable

19

HOSE (L1500)

90445-084J0-00

Unavailable

20

WIRE, PLUS LEAD

55X-82115-01-00

Unavailable

21

WIRE, MINUS LEAD

3GB-82116-00-00

Unavailable

22

BAND, BATTERY

4J2-82131-01-00

Unavailable

23

SEAT, BATTERY

55X-82122-00-00

Unavailable

24

DAMPER 1

1UY-21638-00-00

Unavailable

25

FUSE HOLDER ASSY

3GB-82150-00-00

Unavailable

26

FUSE (12V 5A)

5G2-82151-00-00

Unavailable

27

PILOT LIGHT ASSEMBLY

55X-83530-00-00

Unavailable

28

. SOCKET CORD ASSEMBLY

55X-83520-00-00

Unavailable

29

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

30

WIRE HARNESS ASSEMBLY

3GB-82590-00-00

Unavailable

31

BAND, SWITCH CORD

437-83936-11-00

Unavailable

32

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

33

BAND, SWITCH CORD

437-83936-01-00

Unavailable

34

BAND, SWITCH CORD

437-83936-01-00

Unavailable

35

MAIN SWITCH ASSY

2FJ-82510-09-00

Unavailable

36

CAP, KEY

24W-82579-00-00

Unavailable

37

CLAMP

1UY-82591-00-00

Unavailable
