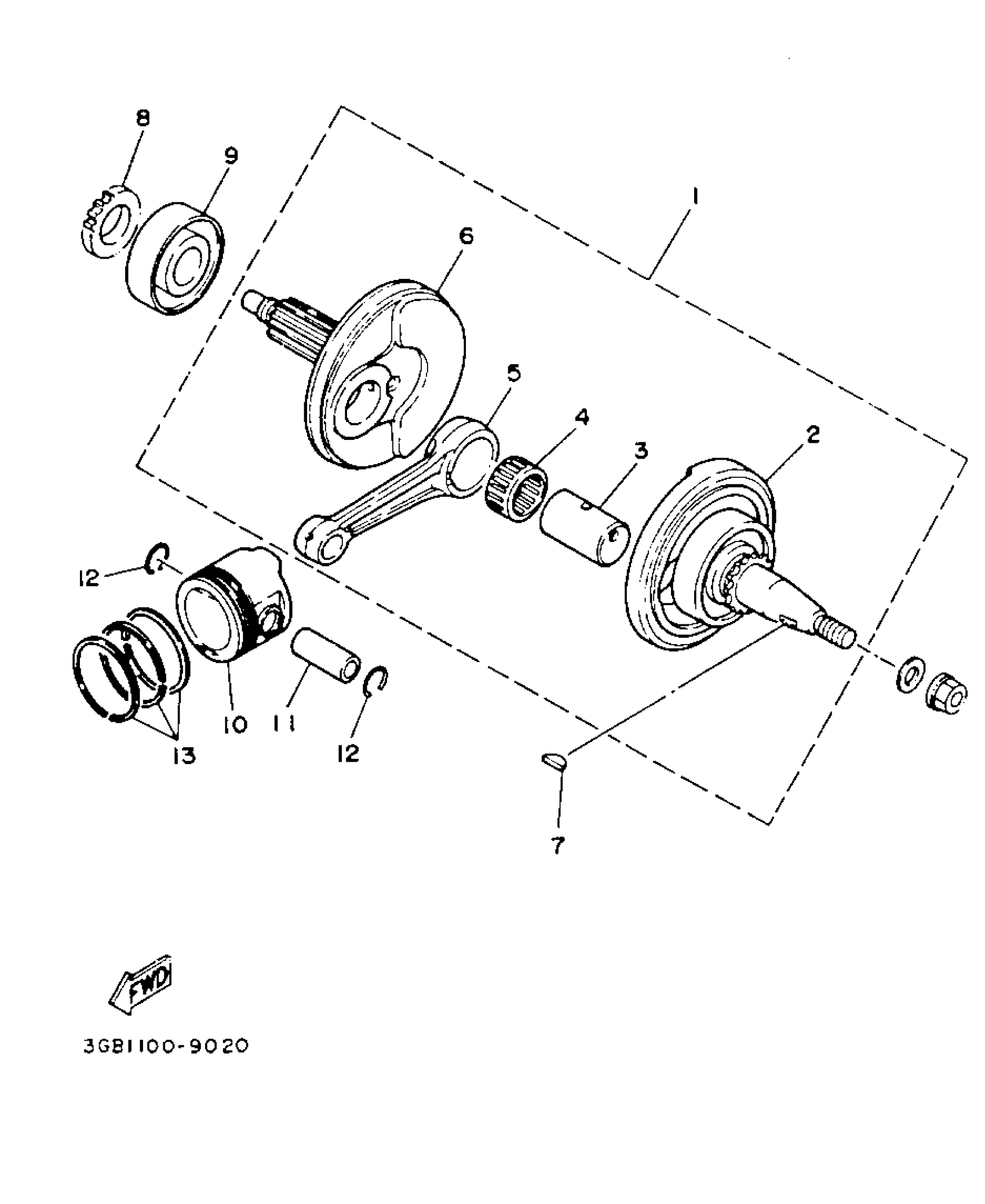

Yamaha YFM100W (CHAMP) 1989 CRANKSHAFT - PISTON Diagram
#
Description
Price
1
CRANKSHAFT ASSEMBLY
3GB-11400-00-00
Unavailable
2
. CRANK 1
3GB-W1141-00-00
Unavailable
3
. PIN, CRANK 1
22F-11681-00-00
Unavailable
4
. BEARING
93311-32353-00
Unavailable
5
. ROD, CONNECTING
2HX-11651-00-00
Unavailable
6
. CRANK 2
2HX-11422-00-00
Unavailable
8
GEAR, PUMP DRIVE
46J-13324-00-00
Unavailable
10
PISTON (STD)
2HX-11631-01-00
Unavailable
10
PISTON (0.50MM O/S)
2HX-11636-01-00
Unavailable
10
PISTON (1.00MM O/S)
2HX-11638-01-00
Unavailable
13
PISTON RING SET (2ND O/S)
50M-11610-20-00
Unavailable
13
PISTON RING SET (4TH O/S)
50M-11610-40-00
Unavailable
