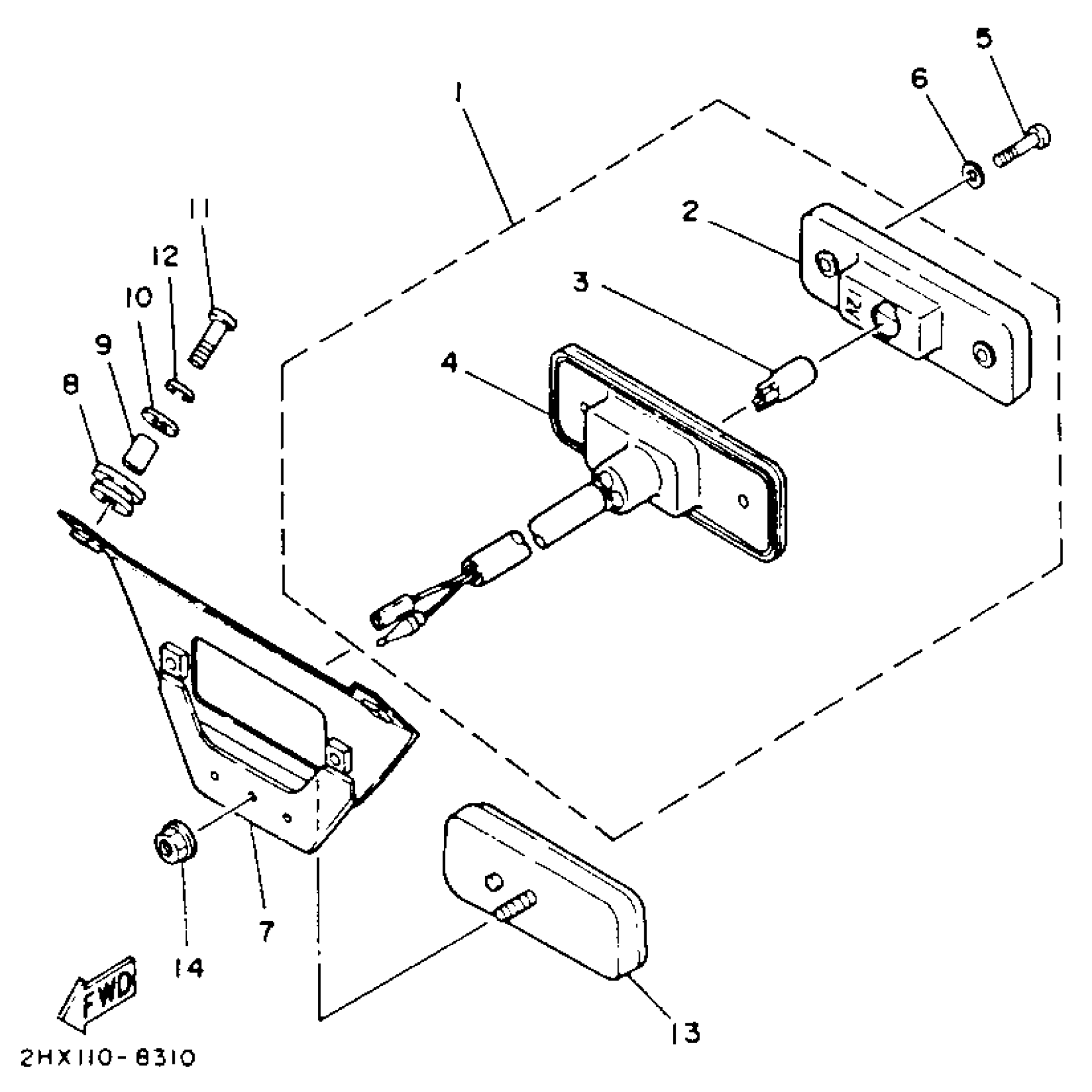

Yamaha YFM100U (CHAMP) 1988 TAILIGHT Diagram

#

Description
Price

1

. TAILLIGHT UNIT ASSY

38W-84710-00-00

Unavailable

2

. LENS, TAILLIGHT

38W-84721-00-00

Unavailable

3

. BULB, METER 12V 38W

3F9-84744-00-XX

Unavailable

4

. TAILLIGHT UNIT ASSY

38W-84710-00-00

Unavailable

5

SCREW, PAN HEAD

98517-04020-00

$8.49

6

WASHER, PLAIN (646)

92990-04600-00

$5.99

7

BRACKET,TAIL LIGHT

55X-84702-10-00

Unavailable

8

GROMMET (1E5)

90480-13163-00

$7.49

9

COLLAR(51L)

90387-067K6-00

$10.49

10

WASHER, PLATE 8221447500

90201-06057-00

$5.60

11

SCREW, PAN

98517-06020-00

$8.49

12

WASHER, SPRING

92907-06100-00

$4.25

13

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

14

NUT, FLANGE(3GM)

95707-05500-00

$8.49
