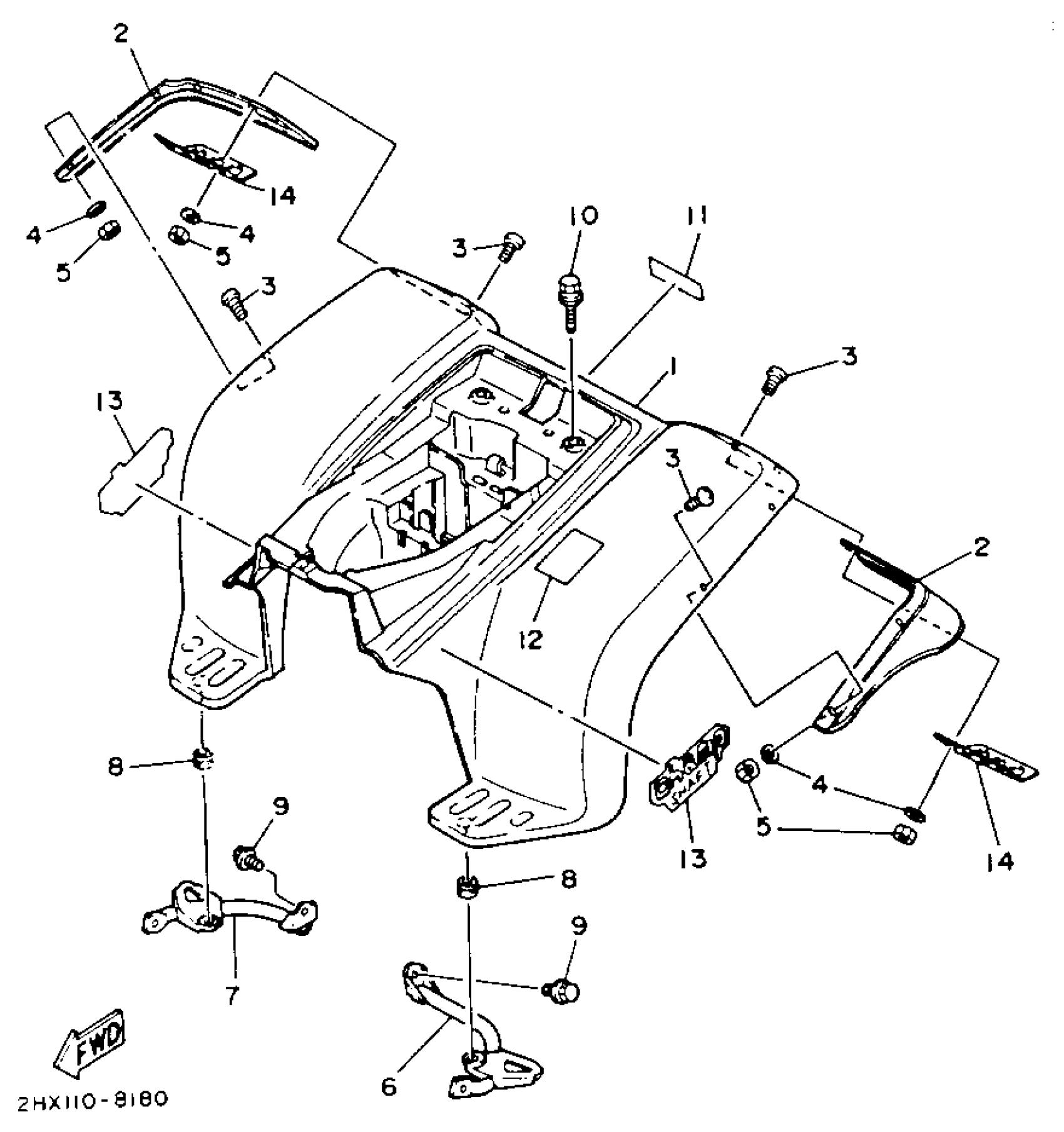

Yamaha YFM100U (CHAMP) 1988 REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (55X-21611-01)

2FJ-21611-00-00

Unavailable

1

FENDER, REAR

2HX-21611-20-00

Unavailable

2

FLAP

2HX-21621-00-00

Unavailable

3

SCREW, BINDING(3XV)

90154-05059-00

$9.49

4

WASHER, PLATE 8067717800

90201-05029-00

$8.49

5

NUT, NYLON

95707-05300-00

$4.24

6

STAY, fender 1

2HX-21613-00-00

Unavailable

7

STAY, fender 2

2HX-21614-00-00

Unavailable

8

GROMMET (2N3)

90480-16233-00

$8.49

9

BOLT, FLANGE

95817-08012-00

$5.49

10

BOLT, WITH WASHER

90119-06152-00

$7.49

11

EMBLEM, YAMAHA

99241-00100-00

$4.19

11

EMBLEM, YAMAHA

99242-00025-00

Unavailable

12

LABEL

1YW-2178A-00-00

Unavailable

13

EMBLEM 1 (OCEAN BLUE)

2HX-2163G-00-00

Unavailable

13

EMBLEM 1

2HX-2163G-20-00

Unavailable

14

PLATE, flap fitting 1

2HX-21623-00-00

Unavailable
