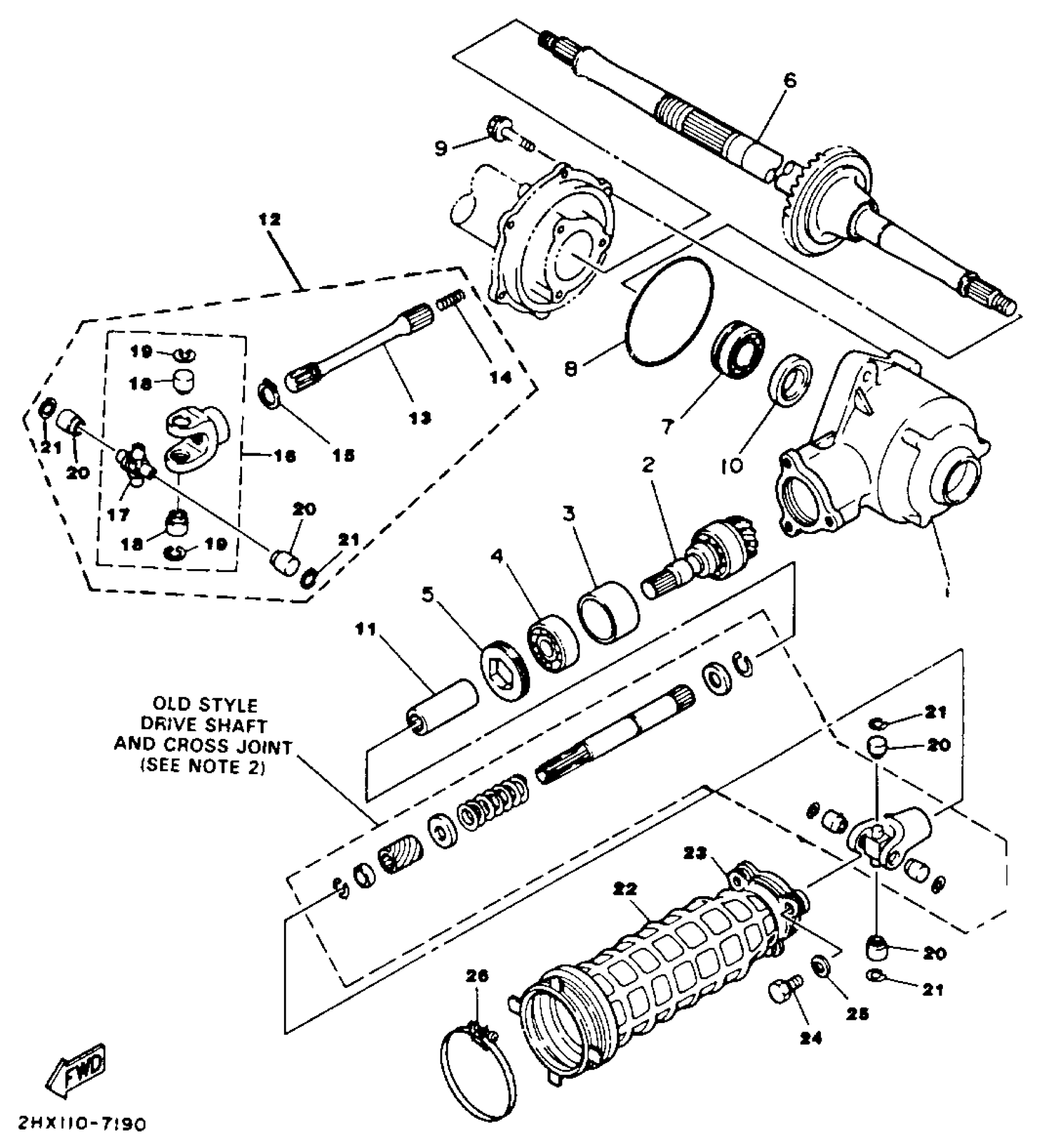

Yamaha YFM100U (CHAMP) 1988 DRIVE SHAFT Diagram

#

Description
Price

1

HOUSING, drive shaft

55X-46151-00-00

Unavailable

2

DRIVE PINION COMP.

2HX-46120-00-00

Unavailable

3

SPACER

90560-40221-00

Unavailable

4

BEARING(4HM)

93306-30317-00

$39.99

5

NUT

90179-50481-00

Unavailable

6

RING GEAR COMP. (55X-46110-02)

55X-46110-03-00

Unavailable

7

BEARING

93306-00511-00

Unavailable

8

O-RING

93211-066A9-00

$13.49

9

BOLT, FLANGE

95817-06016-00

$2.75

10

OIL SEAL(36R)

93102-25311-00

Unavailable

11

COUPLING, GEAR

22F-46123-01-00

$24.99

12

. DRIVE SHAFT KIT

99999-01900-00

Unavailable

13

SHAFT, DRIVE

3GB-46172-01-00

Unavailable

14

. SPRING, compression

90501-101F8-00

Unavailable

15

CIRCLIP(1EY)

99009-17400-00

$4.73

16

. CROSS JOINT COMP

2HX-46180-00-00

Unavailable

17

. SPIDER

22F-46187-00-00

Unavailable

18

BEARING, CYLINDRICAL (22F)

93311-20952-00

Unavailable

19

CIRCLIP(24H)

99009-17500-00

Unavailable

20

BEARING, CYLINDRICAL (22F)

93311-20952-00

Unavailable

21

CIRCLIP(24H)

99009-17500-00

Unavailable

22

. HOUSING, bearing

2HX-17551-00-00

Unavailable

23

PLATE, bearing

2HX-17558-00-00

Unavailable

24

BOLT, HEXAGON

97013-08020-00

Unavailable

25

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

26

CLAMP, HOSE(59V)

90460-85277-00

Unavailable
