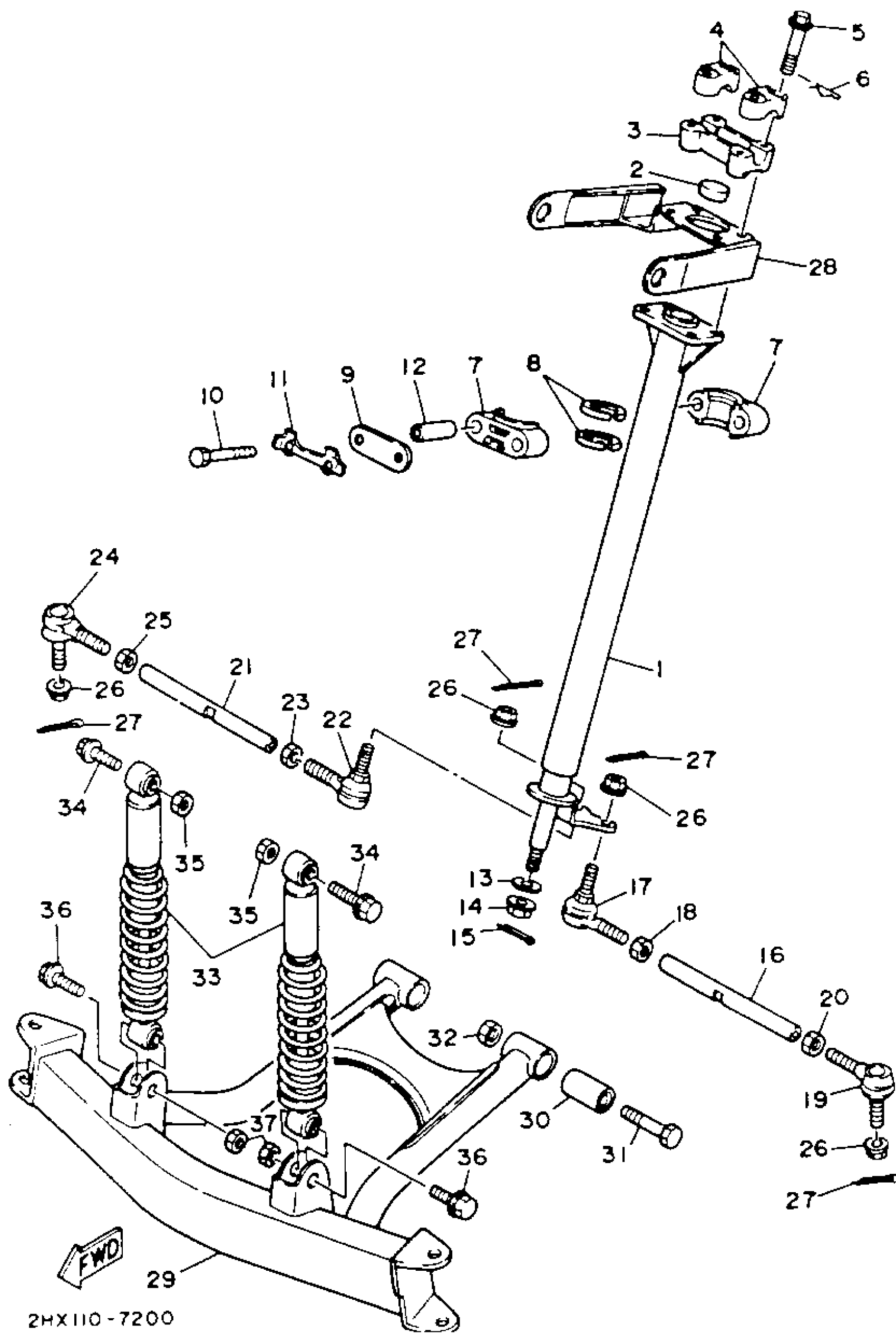

Yamaha YFM100T (CHAMP) 1987 STEERING Diagram
#
Description
Price
3
HANDLE, HOLDER
164-23441-01-98
Unavailable
5
BOLT, washer based
90105-08403-00
Unavailable
9
BRACKET, STEERING LOWER
3GD-23868-01-00
Unavailable
10
BOLT, HEXAGON
97017-08060-00
Unavailable
14
NUT, SELF-LOCKING (8U7)
90185-10115-00
Unavailable
16
ROD, tie
2HX-23831-00-00
Unavailable
17
JOINT, UNIVERSAL 1
55X-23841-01-00
Unavailable
18
NUT (682)
95380-10700-00
Unavailable
19
JOINT, UNIVERSAL 2
52H-23845-01-00
Unavailable
20
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
21
ROD, tie
2HX-23831-00-00
Unavailable
22
JOINT, UNIVERSAL 1
55X-23841-01-00
Unavailable
23
NUT (682)
95380-10700-00
Unavailable
24
JOINT, UNIVERSAL 2
52H-23845-01-00
Unavailable
25
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
26
NUT, SELF-LOCKING (8U7)
90185-10115-00
Unavailable
28
BRACKET, headlight stay 1 (2HX-23175-00)
2HX-23175-10-00
Unavailable
29
FRONT LOWER ARM COMP.(LEFT)
3GB-23570-00-33
Unavailable
30
BUSHING,REAR ARM
307-22123-00-00
Unavailable
31
BOLT (4X7)
90101-12498-00
Unavailable
32
NUT, SELF-LOCKING(1KH)
90185-12134-00
Unavailable
33
SHOCK ABSORBER ASSY
2HX-23350-00-00
Unavailable
34
BOLT, WASHER BASED(3YR)
90105-10669-00
Unavailable
35
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
36
BOLT, WASHER BASED
(90105-12460-00)
Unavailable
37
NUT, SELF-LOCKING(1KH)
90185-12134-00
Unavailable
