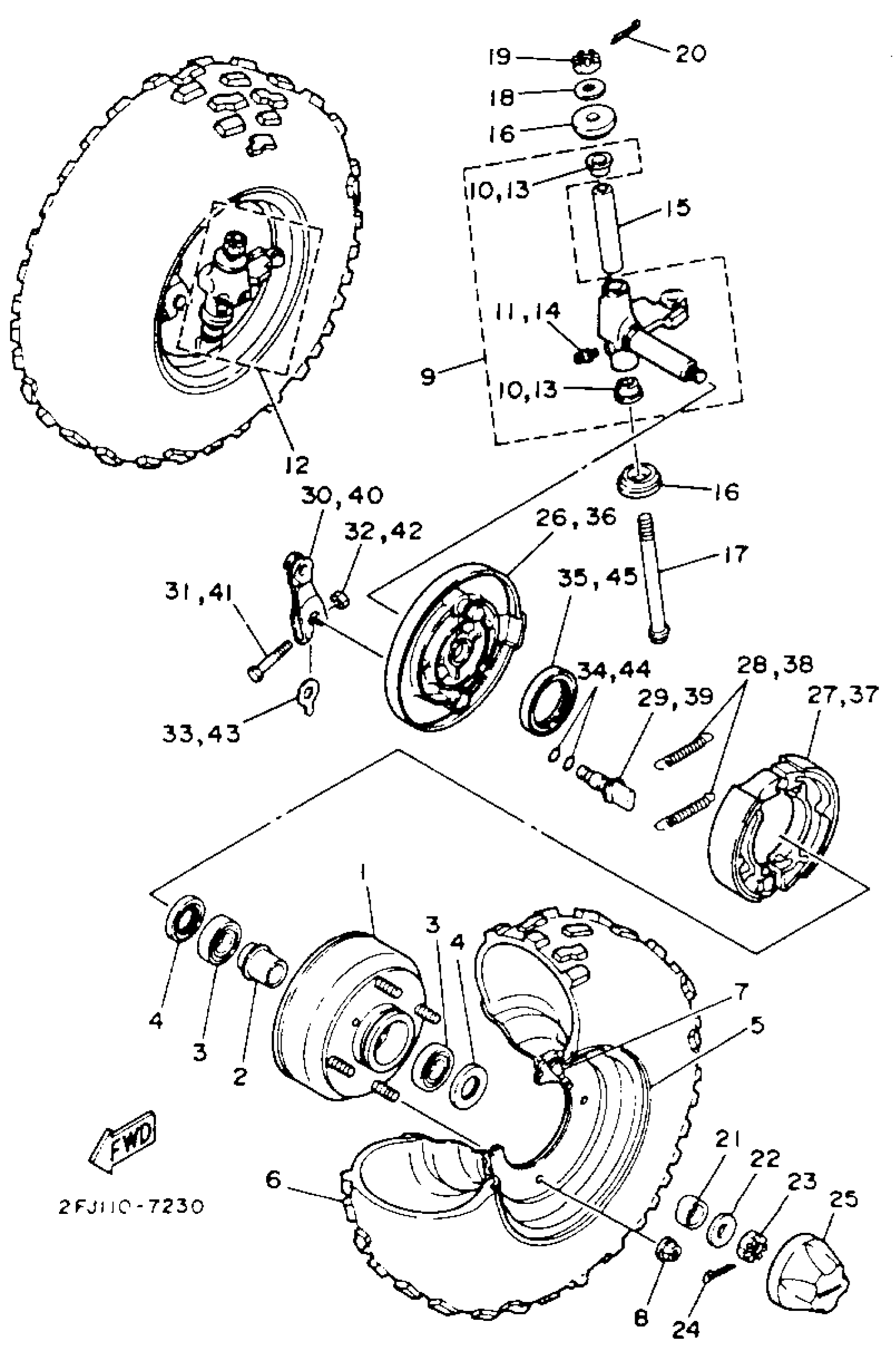

Yamaha YFM100T (CHAMP) 1987 FRONT WHEEL Diagram
#
1
HUB, FRONT
2FJ-25111-00-00
Unavailable
2
SPACER, BEARING
2FJ-25117-00-00
Unavailable
5
WHEEL COMP.
2FJ-25180-00-35
Unavailable
6
TIRE (AT18X7-7) (94107-073Y9-00)
94107-073W8-00
Unavailable
9
STEERING, knuckle ass''y (L)
2HX-23501-00-00
Unavailable
11
NIPPLE, GREASE
93700-06M03-00
Unavailable
12
STEERING, knuckle ass''y (R)
2HX-23502-00-00
Unavailable
14
NIPPLE, GREASE
93700-06M03-00
Unavailable
15
SPACER
55X-23448-00-00
Unavailable
16
COVER, THRUST 1
59V-23517-00-00
Unavailable
17
BOLT(55X)
90109-104A8-00
Unavailable
18
WASHER PLATE (3L6)
90201-08759-00
Unavailable
19
NUT 3532518200
90171-10004-00
Unavailable
20
PIN, COTTER
91490-20025-00
Unavailable
21
COLLAR
90387-175R2-00
Unavailable
22
WASHER, PLATE (4K8)
90201-120E8-00
Unavailable
23
NUT, CASTLE(36R)
90171-12039-00
Unavailable
24
PIN, COTTER(6L5)
91490-25030-00
Unavailable
25
CAP, WHEEL
52H-2512A-00-00
Unavailable
26
PLATE, BRAKE SHOE
2FJ-25121-00-00
Unavailable
27
BRAKESHOE SET-2PCS
36R-W2536-00-00
Unavailable
28
SPRING, TENSION (18A)
90506-18288-00
Unavailable
29
CAMSHAFT
5G3-25351-02-00
Unavailable
30
LEVER, CAMSHAFT 1
2FJ-25155-00-00
Unavailable
31
BOLT, HEXAGON (538)
90101-06278-00
Unavailable
32
NUT, HEXAGON
95380-06600-00
Unavailable
33
PLATE, INDICATOR
52H-2513A-00-00
Unavailable
34
O-RING(3LD)
93210-12790-00
Unavailable
35
OIL SEAL(3BC)
93106-40027-00
Unavailable
36
PLATE, BRAKE SHOE 2
2FJ-25169-00-00
Unavailable
37
BRAKESHOE SET-2PCS
36R-W2536-00-00
Unavailable
38
SPRING, TENSION (18A)
90506-18288-00
Unavailable
39
CAMSHAFT
5G3-25351-02-00
Unavailable
40
LEVER, CAMSHAFT 2
2FJ-25156-00-00
Unavailable
41
BOLT, HEXAGON (538)
90101-06278-00
Unavailable
42
NUT, HEXAGON
95380-06600-00
Unavailable
43
PLATE, INDICATOR
52H-2513A-00-00
Unavailable
44
O-RING(3LD)
93210-12790-00
Unavailable
45
OIL SEAL(3BC)
93106-40027-00
Unavailable
