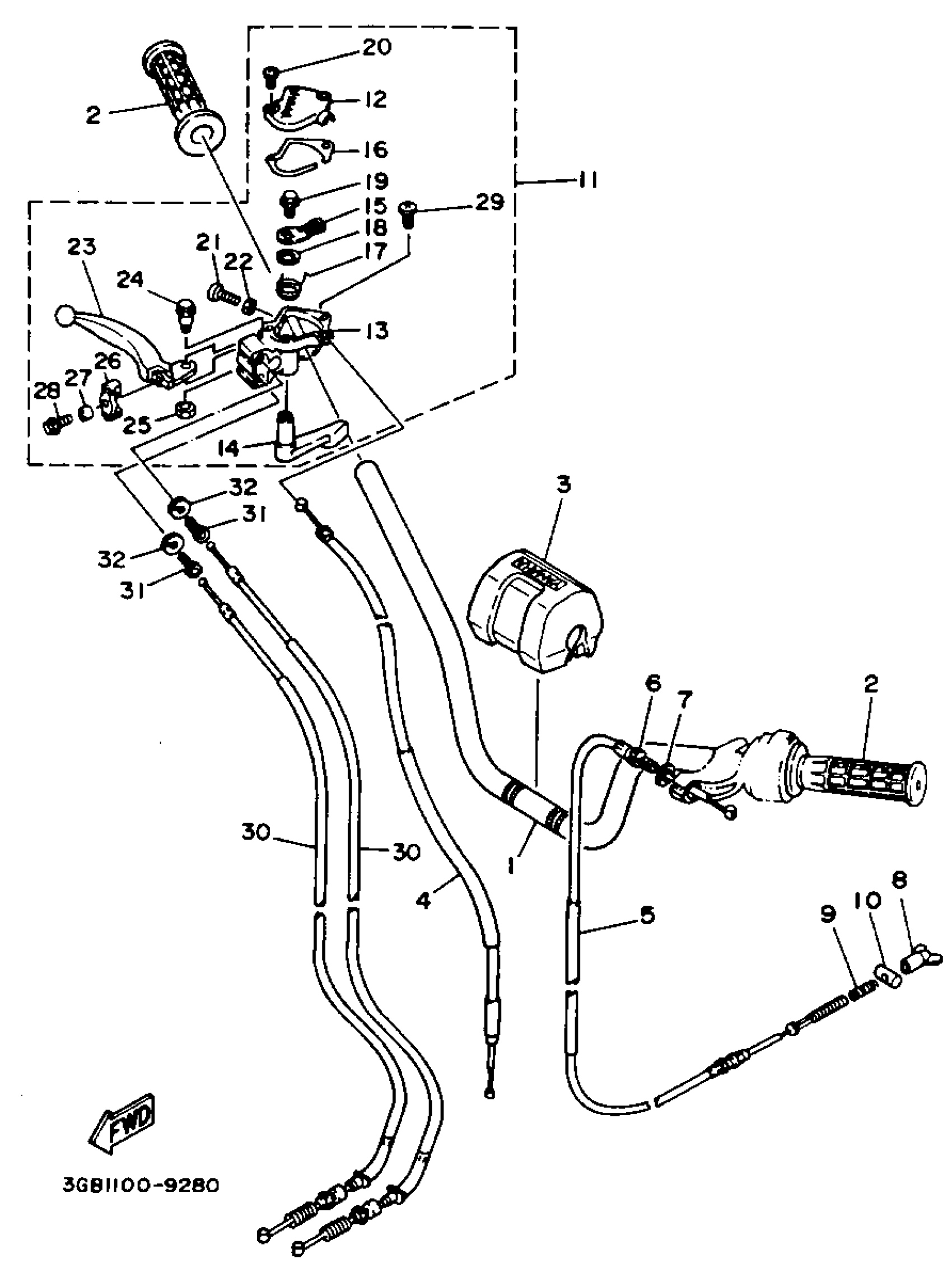

Yamaha YFM100B (CHAMP) 1991 HANDLEBAR - CABLE Diagram
#
Description
Price
1
HANDLEBAR
87A-23811-00-00
Unavailable
3
PROTECTOR, HANDLEBAR
55X-26124-00-00
Unavailable
11
THROTTLE LEVER ASSY
3GB-26250-01-00
Unavailable
12
CAP, GEAR
3GB-2628F-00-00
Unavailable
13
BODY, THROTTLE
3GB-2625E-01-00
Unavailable
14
LEVER, THROTTLE
3GB-2625G-00-00
Unavailable
16
GASKET
3GB-2628G-02-00
Unavailable
17
SPRING, TORSION(3GB)
90508-10775-00
Unavailable
18
WASHER, PLATE(3GB)
90201-145M4-00
Unavailable
19
BOLT, FLANGE
95817-08012-00
Unavailable
20
SCREW, PAN HEAD(6G8)
98507-04010-00
Unavailable
21
SCREW, PAN HEAD
98517-05020-00
Unavailable
22
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
23
LEVER 2
3GB-83922-00-00
Unavailable
24
BOLT(3GB)
90109-061F3-00
Unavailable
25
NUT, SELF-LOCKING
95617-06100-00
Unavailable
26
JOINT, CABLE
3GB-26347-00-00
Unavailable
27
COLLAR (3L6)
90387-06761-00
Unavailable
28
BOLT, FLANGE
95817-06016-00
Unavailable
29
SCREW, PAN
98517-06020-00
Unavailable
30
CABLE, BRAKE
3GB-26361-04-00
Unavailable
31
BOLT(2FJ)
90123-08106-00
Unavailable
