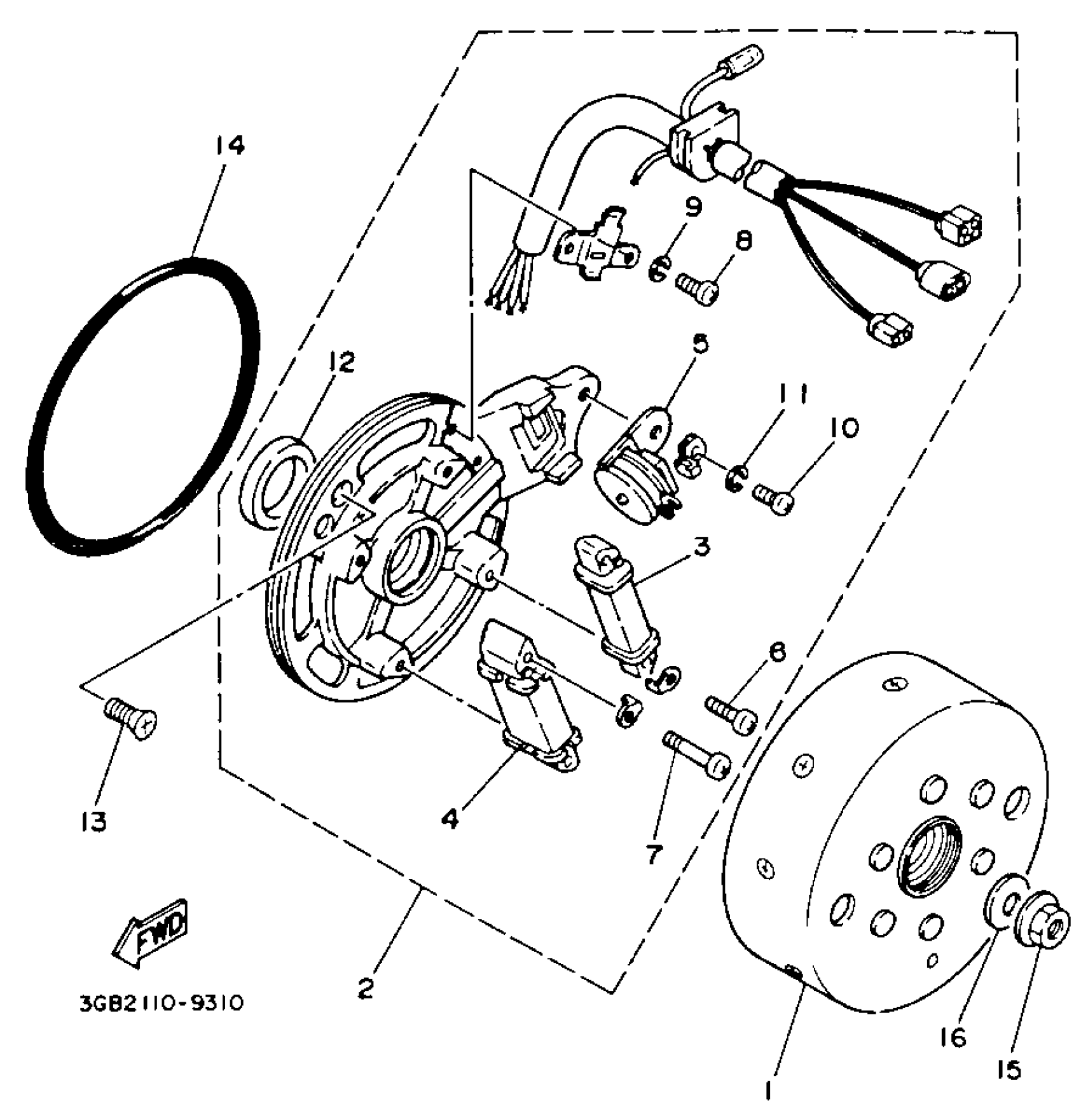

Yamaha YFM100B (CHAMP) 1991 GENERATOR Diagram

#

Description
Price

1

ROTOR ASSEMBLY

3GB-85550-00-00

Unavailable

2

BASE ASSEMBLY

3GB-85560-10-00

Unavailable

3

COIL, CHARGE

5G3-85520-M2-00

Unavailable

4

COIL, LIGHTING 1

55X-81313-M0-00

$76.99

5

COIL, PULSER

22K-85595-M0-00

$65.99

6

SCREW, PAN HEAD

98511-04012-00

Unavailable

7

SCREW, PAN HEAD

98517-04020-00

$8.49

8

SCREW,PAN HEAD

98501-04006-00

Unavailable

9

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

10

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

OIL SEAL (22F)

93102-19276-00

$11.49

13

SCREW, FLAT

98704-06016-00

Unavailable

14

O-RING(55X)

93211-02703-00

$11.49

15

NUT(3EF)

90179-12657-00

$5.60

16

WASHER, PLATE(1HR)

90201-123L6-00

Unavailable
