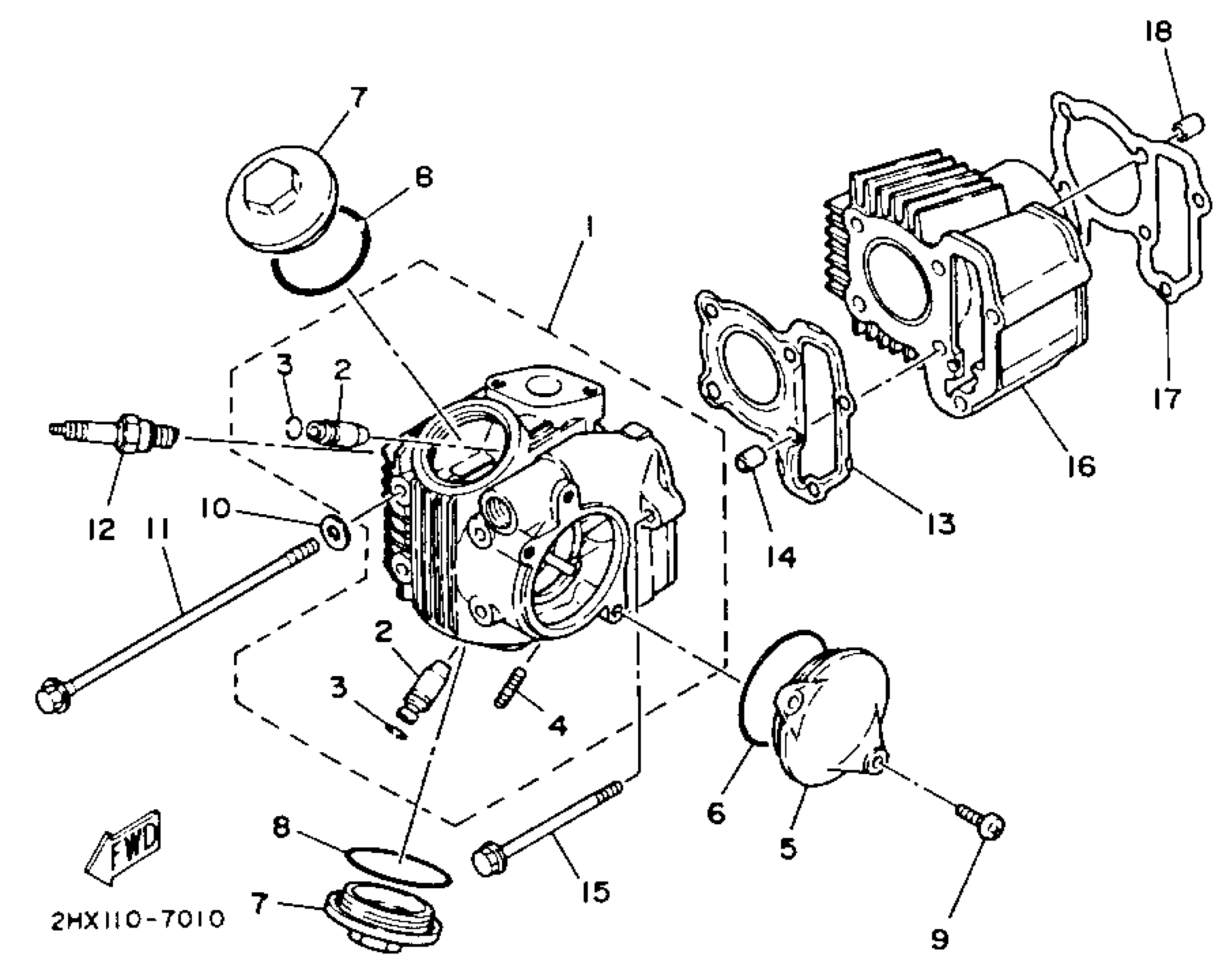

Yamaha YFM100B (CHAMP) 1991 CYLINDER Diagram

CYLINDER HEAD ASSEMBLY

2HX-11110-00-00

Unavailable

GUIDE, EXHAUST VALVE (1ST O/S)

22F-11134-10-00

$88.99

CIRCLIP (22F)

93440-10109-00

$8.49

BOLT

22F-14651-00-00

$6.99

COVER, CYLINDER HEAD SIDE 1

50M-11185-10-00

Unavailable

O-RING (22F)

93210-63556-00

$5.60

COVER, CYLINDER HEAD SIDE 2

22F-11186-10-00

$20.99

O-RING(55X)

93210-44704-00

$7.49

SCREW, PAN

98507-06014-00

$8.49

WASHER, PLATE

90201-072L3-00

Unavailable

BOLT, WASHER BASED

90105-07458-00

Unavailable

PLUG SPARK

NGK-C7HSA-00-

Unavailable

GASKET, CYLINDER HEAD 1

2HX-11181-00-00

Unavailable

PIN, DOWEL(3VD)

99530-10114-00

$2.55

BOLT, FLANGE(4NM)

95027-06085-00

$9.49

CYLINDER 1

2HX-11311-00-00

Unavailable

GASKET, CYLINDER

3GB-11351-00-00

Unavailable

PIN, DOWEL

91809-14004-00

Unavailable
