Description

Price

1

FUEL TANK COMP.

2HX-24110-00-00

Unavailable

2

CAP ASSY

2FJ-24610-20-00

$68.99

3

HOSE (L1500)

90445-090F6-00

$31.99

4

GROMMET (4V1)

90480-18290-00

$8.49

5

COLLAR (1T2)

90387-07598-00

$5.60

6

WASHER PLATE 137241870000

90201-06072-00

$9.49

7

BOLT, HEXAGON

97017-06030-00

$3.61

8

WASHER, SPRING

92995-06100-00

Unavailable

9

GROMMET(38W)

90480-01400-00

$13.49

10

WASHER, PLATE

90201-06090-00

$5.60

11

FUEL COCK ASSY 1

55X-24500-02-00

$42.99

12

SEAL, COCK

3AJ-24534-01-00

$10.99

13

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

14

O-RING

4X8-24512-00-00

$8.99

15

VALVE PACKING

3AC-24523-00-00

$12.99

16

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

17

SCREW 256241430000

90149-06011-00

Unavailable

18

HOSE (L200)

90445-10752-00

Unavailable

19

CLIP

90467-090A2-00

Unavailable

20

SPRING, COMPRESSION (1J7)

90504-06030-00

Unavailable

21

SEAT, BATTERY

5Y1-82122-00-00

Unavailable

22

DAMPER 1

88T-77198-00-00

Unavailable

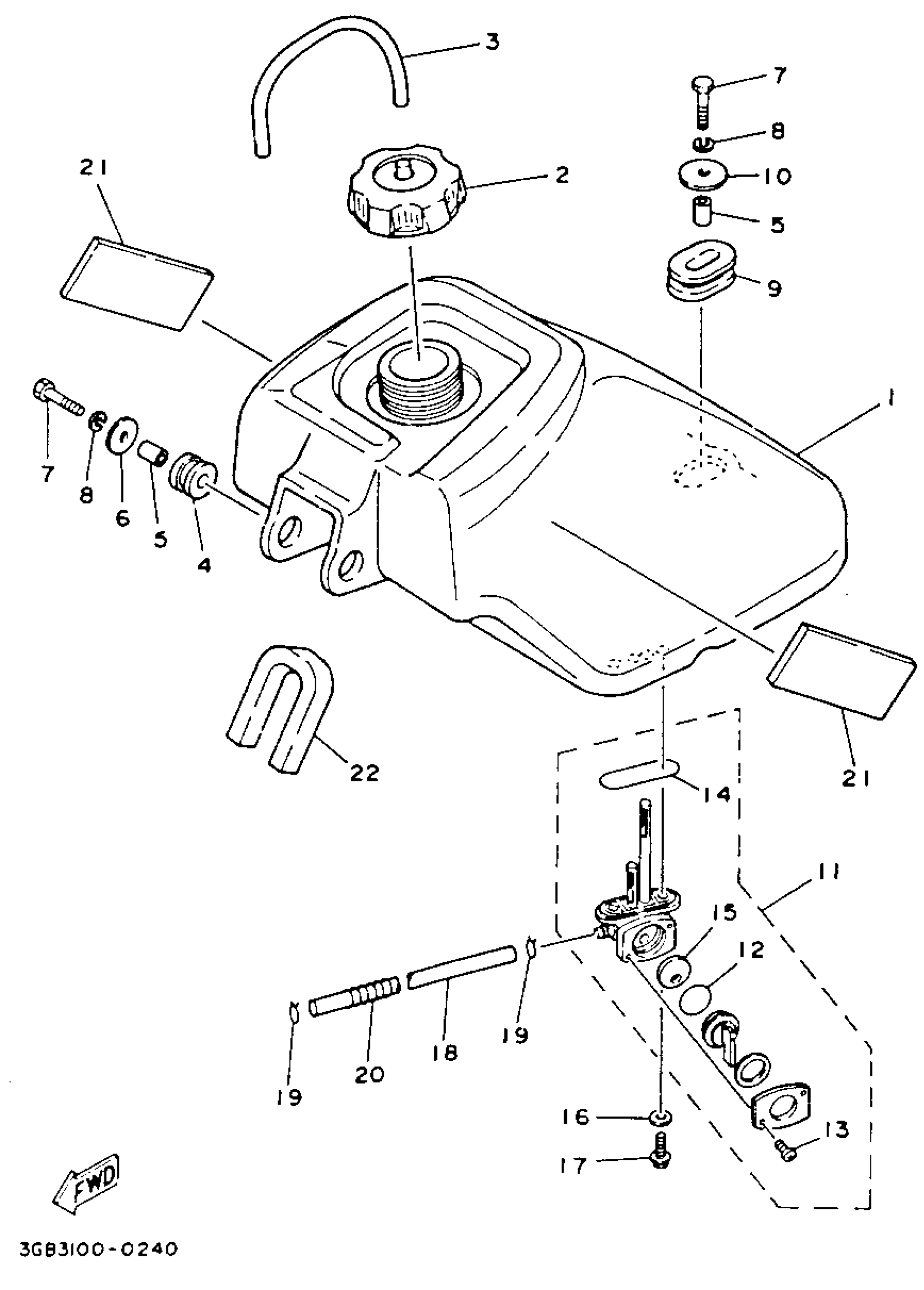

Yamaha YFM100A (CHAMP) 3GB3 1990 FUEL TANK Diagram

FUEL TANK COMP.

CAP ASSY

HOSE (L1500)

GROMMET (4V1)

COLLAR (1T2)

WASHER PLATE 137241870000

BOLT, HEXAGON

WASHER, SPRING

GROMMET(38W)

WASHER, PLATE

FUEL COCK ASSY 1

SEAL, COCK

SCREW, PAN HEAD (J10)

O-RING

VALVE PACKING

WASHER, PLATE(3MB)

SCREW 256241430000

HOSE (L200)

CLIP

SPRING, COMPRESSION (1J7)

SEAT, BATTERY

DAMPER 1
