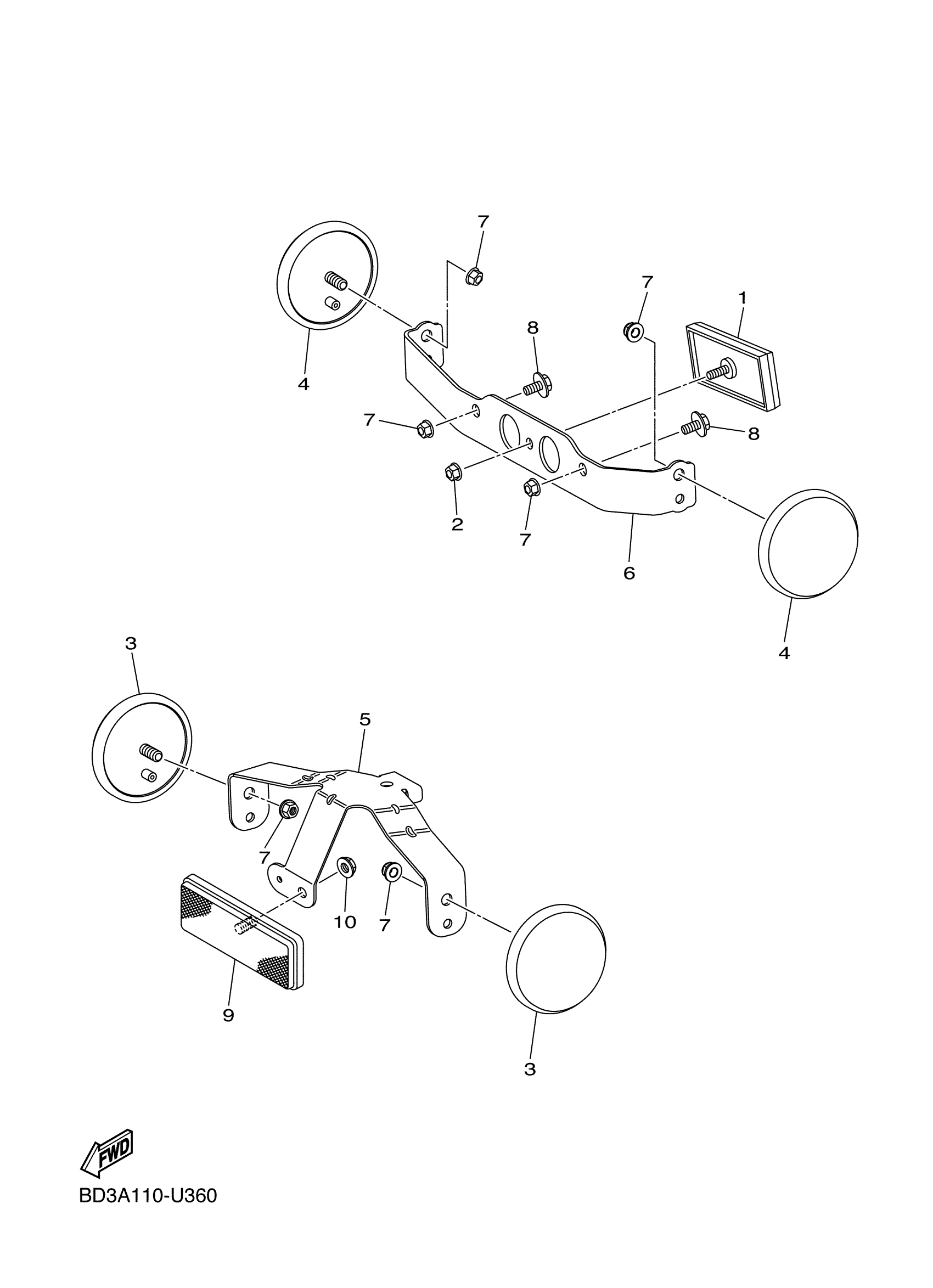

Yamaha YFM09RYXMW (RAPTOR 90) BD3G1 2021 ELECTRICAL 2 Diagram

#

Description
Price

1

REAR REFLECTOR ASSY

BD3-H5130-00-00

$24.23

2

NUT

BD3-F1244-10-00

$2.37

3

REFLECTOR, FRONT 1

BD3-H5111-00-00

$11.88

4

REFLECTOR, FRONT 2

BD3-H5121-00-00

$12.35

5

STAY 1

BD3-F8356-00-00

Unavailable

6

STAY 2

BD3-F8357-00-00

$30.98

7

NUT

BD3-F1494-10-00

$2.04

8

BOLT

BD3-F8333-10-00

$3.35

9

REFLECTOR, REAR 2

BD3-H5141-10-00

$22.00

10

NUT

BD3-F1244-10-00

$2.37
