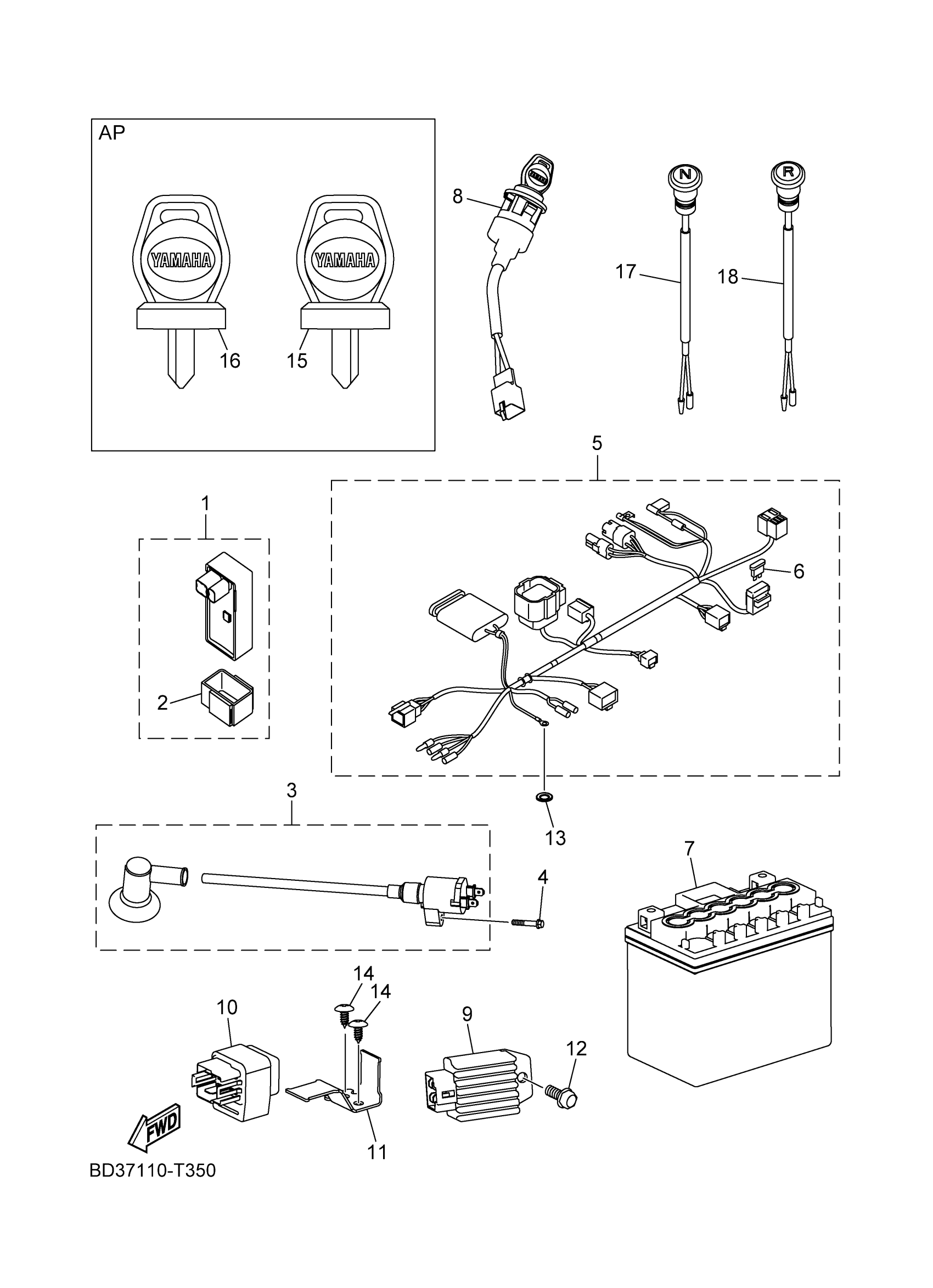

Yamaha YFM09RYXMW (RAPTOR 90) BD3G1 2021 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI

BD3-H5504-20-00

$393.80

2

BAND

BD3-H5546-10-00

Unavailable

3

IGNITION COIL ASSY

BD3-H2320-00-00

$148.18

4

BOLT

BD3-F7435-10-00

$2.00

5

WIRE HARNESS ASSY

BD3-H2590-10-00

Unavailable

6

FUSE

BD3-H2151-00-00

Unavailable

7

YTX5LBS YUASA BATTERY - SA

YTX-5LBS0-00-00

$76.08

8

MAIN SWITCH ASSY

BD3-H2510-10-00

$61.27

9

RECTIFIER & REGULATOR ASSY

BD3-H1960-00-00

$77.52

10

STARTER RELAY ASSY

BD3-H1940-00-00

$59.01

11

BRACKET

BD3-H1948-00-00

$12.94

12

BOLT, LEG SHIELD

BD3-F8331-10-00

$2.00

13

WASHER

BD3-F3456-10-00

Unavailable

14

SCREW, 1

BD3-F2969-10-00

Unavailable

15

BLANK KEY 1

BD3-HA8L1-00-00

$15.91

16

BLANK KEY 2

BD3-HA8L2-00-00

Unavailable

17

PILOT LIGHT ASSY

BD3-H3530-00-00

Unavailable

18

PILOT LIGHT ASSY

BD3-H3530-10-00

Unavailable
