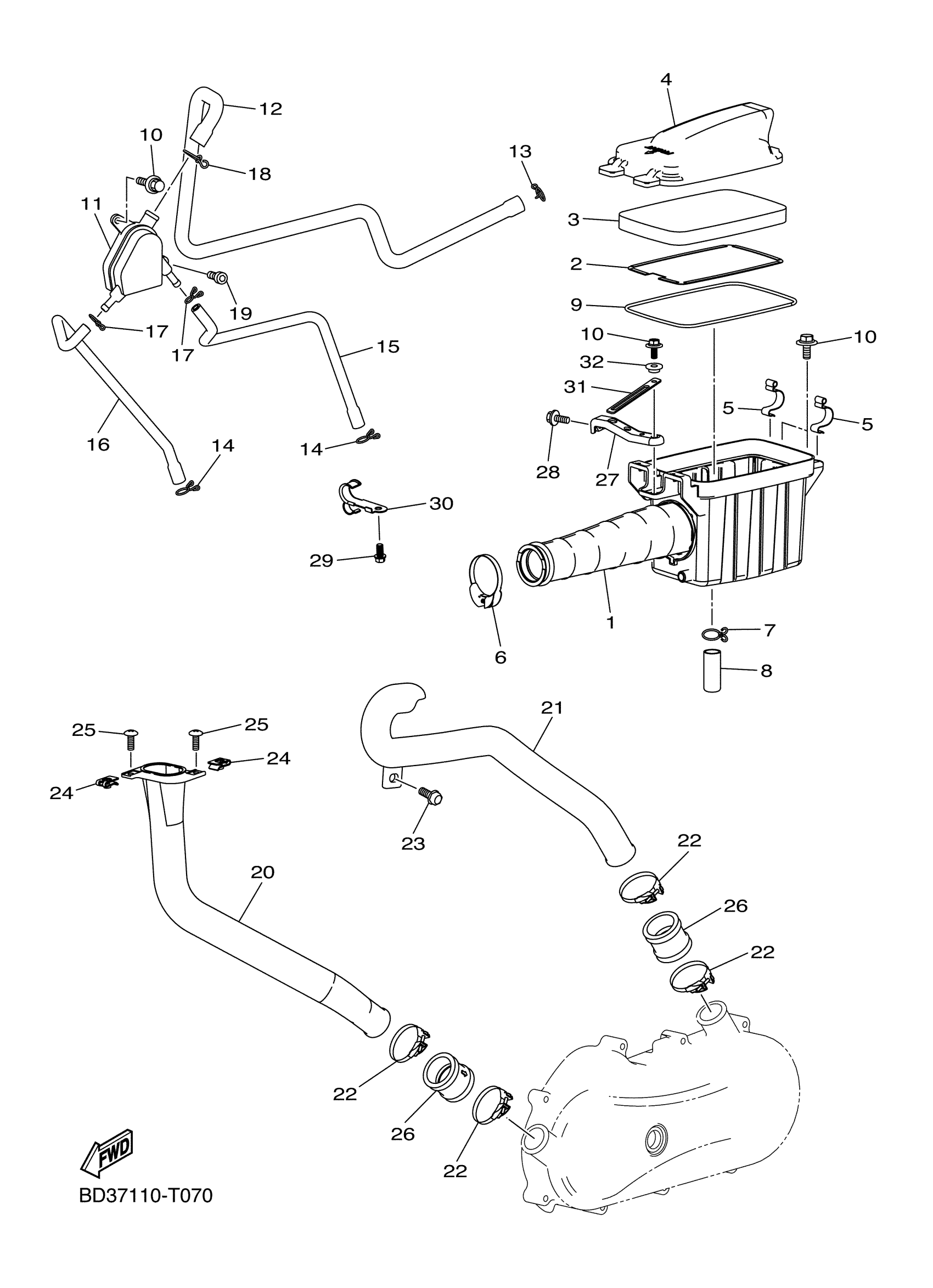

Yamaha YFM09RYXLL (RAPTOR 90) BD3D 2020 INTAKE Diagram

#

Description
Price

1

AIR FILTER CASE COMP.

BD3-E4408-10-00

$139.00

2

PLATE, ELEMENT

BD3-E4472-00-00

$20.28

3

ELEMENT, AIR CLEANER

BD3-E4451-00-00

$19.79

4

CAP, CLEANER CASE 1

BD3-E4412-10-00

$30.65

5

CLIP, CAP FITTING

BD3-E4424-00-00

$7.02

6

CLAMP 1

BD3-E2491-10-00

$26.63

7

CLIP

BD3-E3577-10-00

$2.20

8

PIPE, DRAIN

BD3-E443E-00-00

$6.75

9

SEAL

BD3-E4457-00-00

$8.12

10

BOLT

BD3-E4446-10-00

$5.63

11

SEPERATOR, OIL

BD3-E1164-00-00

$39.82

12

PIPE, BREATHER 1

BD3-E1166-00-00

$69.02

13

CLIP

BD3-E3577-10-00

$2.20

14

CLIP

BD3-E4137-10-00

$3.15

15

PIPE, BREATHER 3

BD3-E1126-00-00

$31.63

16

PIPE, BREATHER 4

BD3-E1125-00-00

$16.91

17

CLIP

BD3-E4159-10-00

$2.29

18

CLIP

BD3-E4919-10-00

$2.15

19

BOLT

BD3-E4777-10-00

$2.15

20

DUCT, AIR

BD3-E5471-00-00

$70.72

21

DUCT, AIR

BD3-E5473-00-00

$80.97

22

CLAMP, HOSE 1

BD3-E1387-00-00

$14.72

23

BOLT, FOOTREST

BD3-F7416-10-00

$7.02

24

NUT SPRING 1

BD3-E261D-10-00

$2.98

25

SCREW

BD3-E5793-10-00

$2.15

26

SEAL, AIR DUCT

BD3-E5472-00-00

$7.15

27

BRACKET

BD3-E4849-00-00

$52.99

28

BOLT

BD3-E2228-10-00

$3.80

29

BOLT

BD3-E7647-10-00

$3.05

30

RETAINER

BD3-E3274-10-00

$21.43

31

GUIDE

BD3-E4458-00-00

$5.29

32

COLLAR

BD3-E4495-00-00

$3.60
