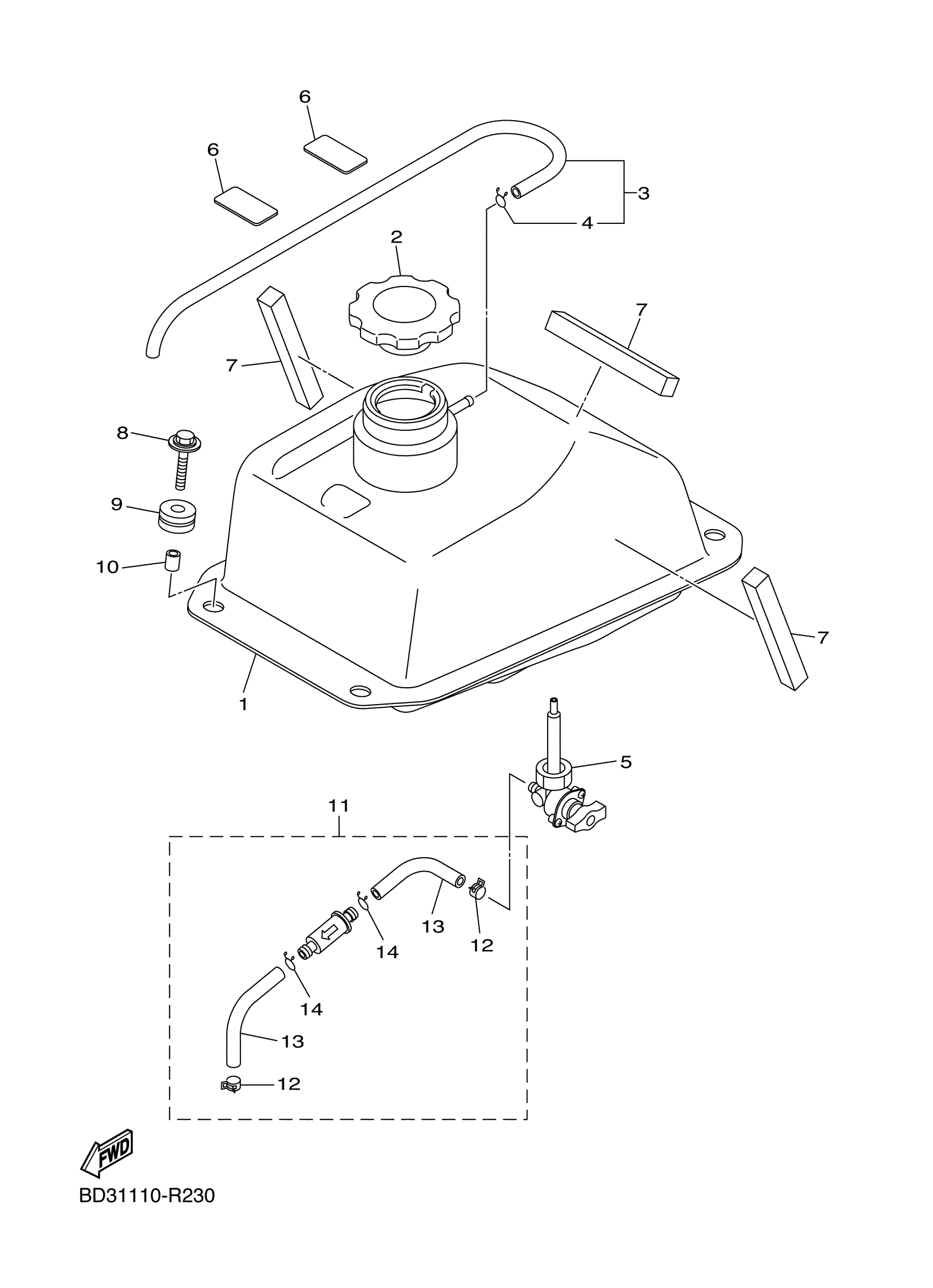

Yamaha YFM09RYXLL (RAPTOR 90) BD3D 2020 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

BD3-F4110-10-00

$499.99

2

CAP ASSY

BD3-F4610-10-00

$79.11

3

HOSE ASSY

BD3-F318J-10-00

Unavailable

4

CLIP

BD3-F3447-10-00

$2.20

5

FUEL COCK ASSY 1

BD3-F4500-00-00

$95.03

6

TAPE, 1

BD3-F1566-00-00

$3.57

7

DAMPER, LOCATING 1

BD3-F4181-00-00

$8.09

8

BOLT

BD3-F3492-10-00

$6.68

9

GROMMET

BD3-F4339-00-00

Unavailable

10

COLLAR

BD3-F412G-10-00

$3.77

11

FILTER ASSY

BD3-F4560-10-00

$54.99

12

CLAMP, FUEL PIPE 1

BD3-F4366-00-00

$5.46

13

TUBE

BD3-F4864-00-00

$16.62

14

CLIP

BD3-F411M-10-00

$2.20
