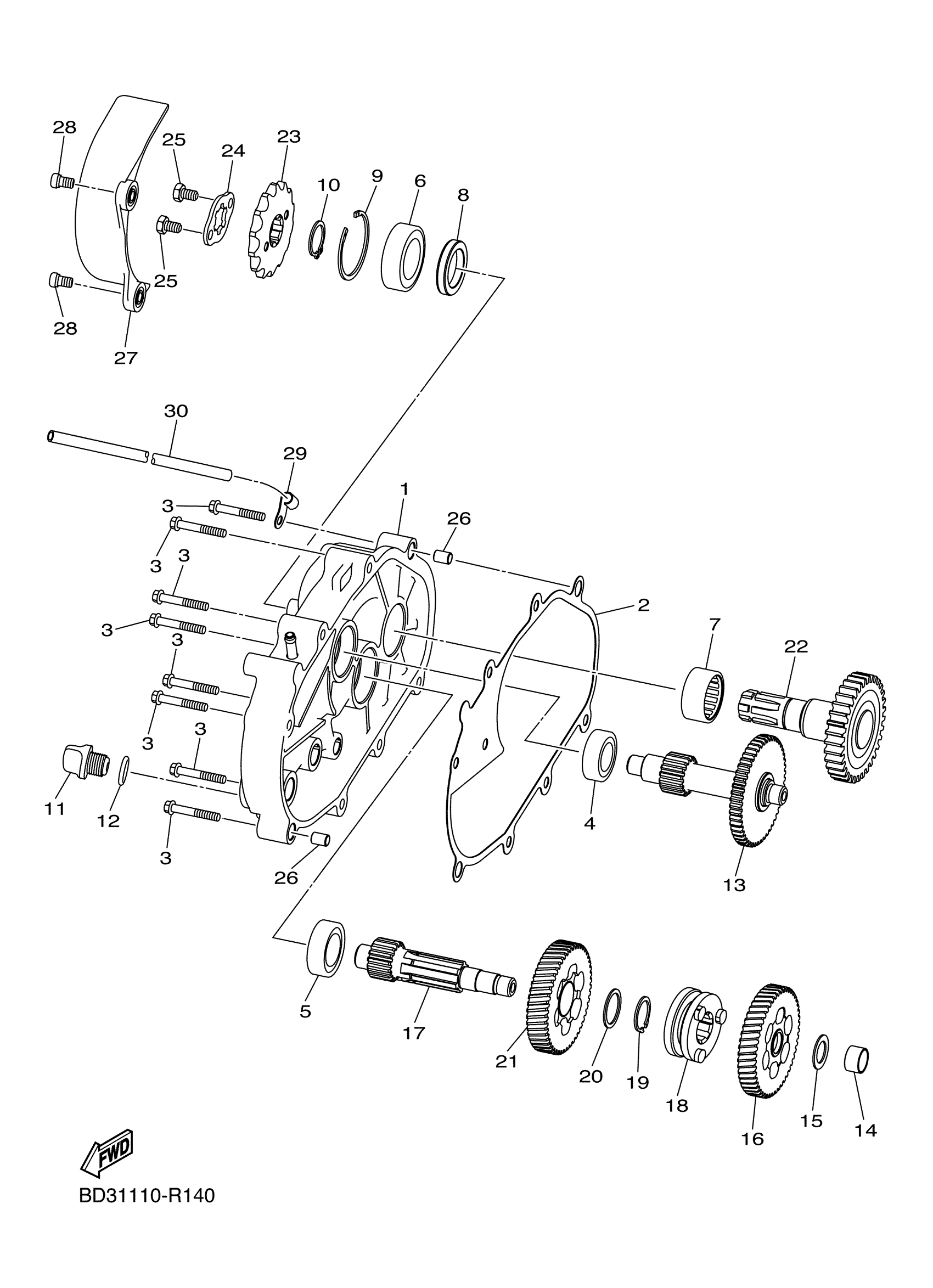

Yamaha YFM09RYXJW (RAPTOR 90) BD37 2018 TRANSMISSION Diagram

#

Description
Price

1

CRANKCASE COVER ASSY 2

BD3-E5420-10-00

$259.99

2

GASKET, CRANKCASE COVER 2

BD3-E5461-10-00

$22.99

3

BOLT

BD3-G1148-10-00

$3.35

4

BEARING 2

BD3-E1429-00-00

$30.99

5

BEARING

BD3-E4814-00-00

$34.99

6

BEARING

BD3-E5693-00-00

$62.99

7

BEARING

BD3-E7678-10-00

$88.99

8

RING, SEAL

BD3-E4005-00-00

Unavailable

9

CIRCLIP

BD3-E2842-00-00

$5.60

10

CIRCLIP

BD3-E662A-00-00

$2.17

11

PLUG, OIL

BD3-E5363-00-00

$7.49

12

O-RING

BD3-E4561-00-00

$7.49

13

COUNTER AXLE ASSY

BD3-E7430-00-00

$217.99

14

COLLAR

BYS-E1478-00-00

$18.99

15

WASHER

BD3-E3578-00-00

$4.29

16

GEAR, PRIMARY DRIVEN

BD3-E6151-00-00

Unavailable

17

AXLE, DRIVE

BD3-E7421-00-00

Unavailable

18

CLUTCH, DOG

BD3-E7285-00-00

Unavailable

19

CIRCLIP 1

BD3-E551A-00-00

Unavailable

20

WASHER

BD3-E3995-00-00

Unavailable

21

GEAR, REVERSE WHEEL 2

BD3-E7253-00-00

Unavailable

22

DRIVE PINION ASSY

BD3-E7520-00-00

Unavailable

23

SPROCKET, DRIVE

BD3-E7451-00-00

Unavailable

24

PLATE

BD3-E7446-10-00

Unavailable

25

BOLT, STOPPER

BD3-E2299-10-00

Unavailable

26

PIN, DOWEL

BD3-E7498-00-00

Unavailable

27

COVER, CHAIN CASE

BD3-E5418-00-00

Unavailable

28

SCREW

BD3-E4429-10-00

Unavailable

29

RETAINER

BD3-E5689-00-00

Unavailable

30

HOSE, BREATHER 1

BD3-E531A-00-00

Unavailable
