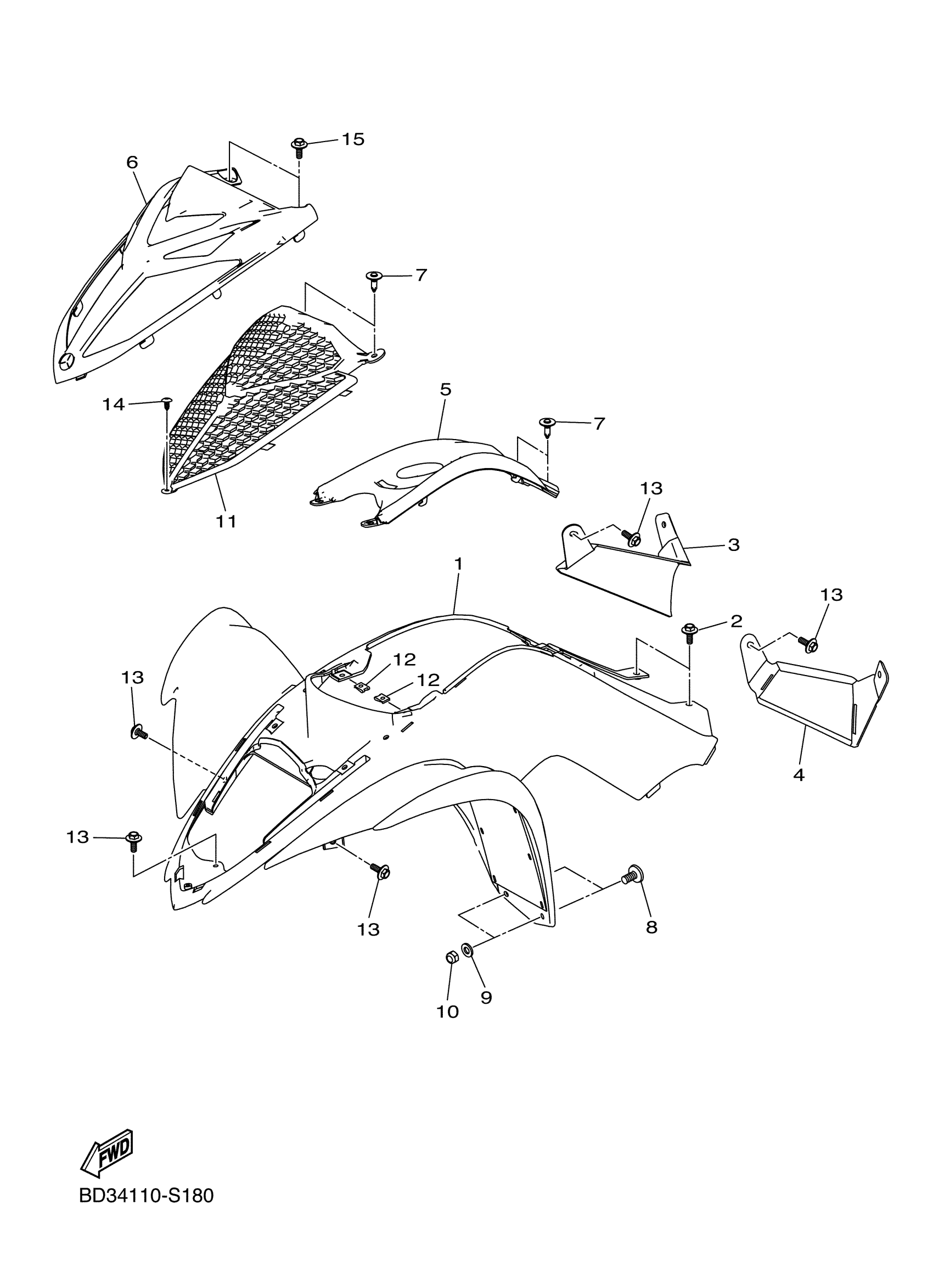

Yamaha YFM09RYXJW (RAPTOR 90) BD37 2018 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

BD3-F1500-00-00

Unavailable

2

BOLT

BD3-F1738-00-00

$5.60

3

COVER, SIDE 2

BD3-F1721-00-00

$61.99

4

COVER, SIDE 1

BD3-F1711-00-00

$53.99

5

COVER, TOP

BD3-F171A-00-00

Unavailable

6

FENDER, FRONT 2

BD3-F1556-00-00

Unavailable

7

RIVET

BD3-F1728-00-00

Unavailable

8

SCREW 4

BD3-F11C8-00-00

$5.60

9

WASHER

BD3-F2149-10-00

$2.28

10

NUT, SPEED 3

BD3-F4148-10-00

$1.81

11

COVER, RADIATOR

BD3-E2467-00-00

$152.99

12

NUT

BD3-F4149-10-00

$5.60

13

BOLT 2

BD3-F1632-10-00

$3.61

14

SCREW, 1

BD3-F2969-10-00

Unavailable

15

BOLT 2

BD3-F3356-10-00

$5.60
