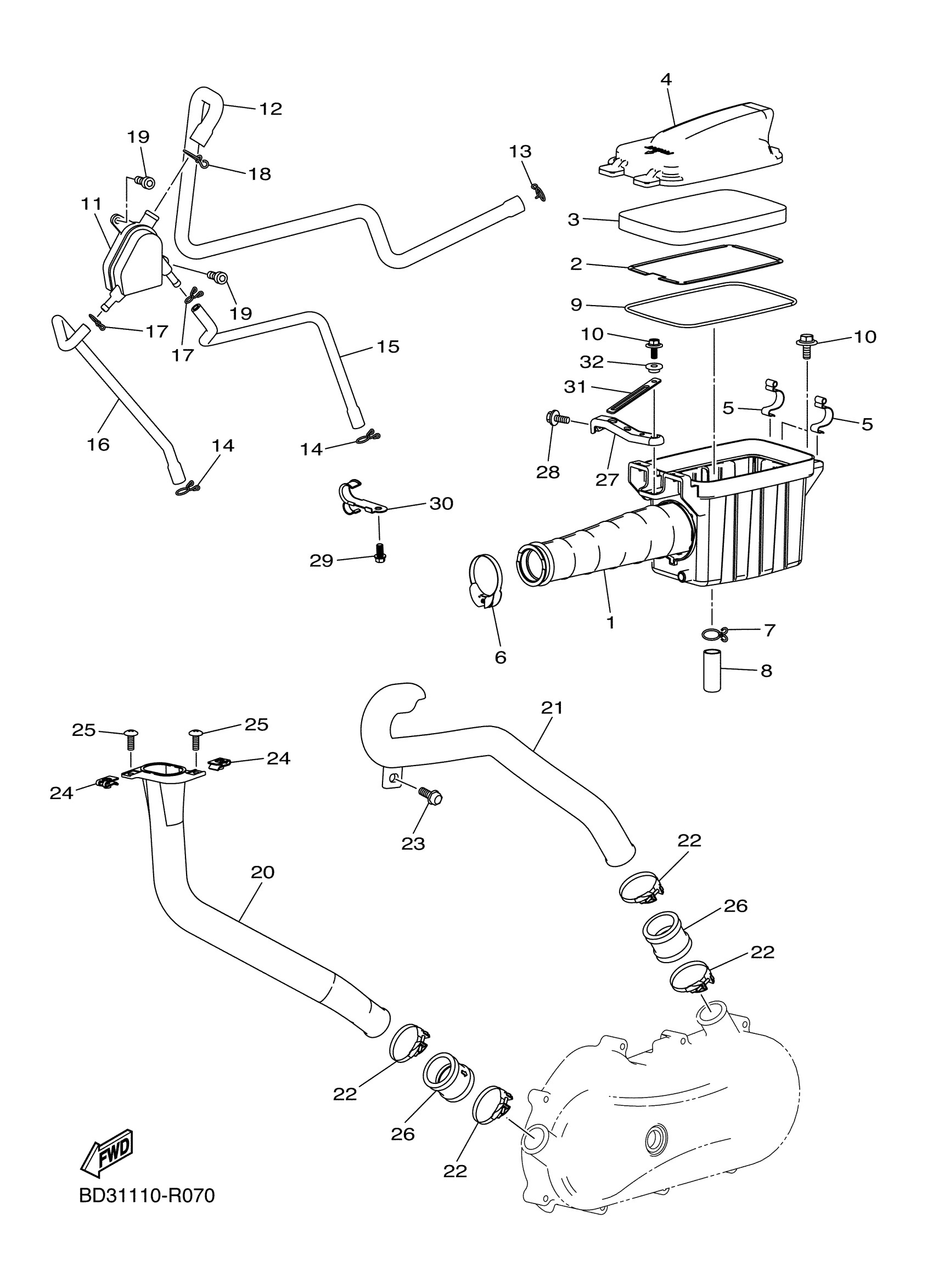

Yamaha YFM09RYXHW (RAPTOR 90) BD341 2017 INTAKE Diagram

#

Description
Price

1

AIR FILTER CASE COMP.

BD3-E4408-10-00

Unavailable

2

PLATE, ELEMENT

BD3-E4472-00-00

$19.97

3

ELEMENT, AIR CLEANER

BD3-E4451-00-00

$16.66

4

CAP, CLEANER CASE 1

BD3-E4412-10-00

$34.08

5

CLIP, CAP FITTING

BD3-E4424-00-00

$6.91

6

CLAMP 1

BD3-E2491-10-00

$26.23

7

CLIP

BD3-E3577-10-00

$2.04

8

PIPE, DRAIN

BD3-E443E-00-00

$5.83

9

SEAL

BD3-E4457-00-00

$8.82

10

BOLT

BD3-E4446-10-00

$5.55

11

SEPERATOR, OIL

BD3-E1164-00-00

Unavailable

12

PIPE, BREATHER 1

BD3-E1166-00-00

$67.97

13

CLIP

BD3-E3577-10-00

$2.04

14

CLIP

BD3-E4137-10-00

$3.11

15

PIPE, BREATHER 3

BD3-E1126-00-00

Unavailable

16

PIPE, BREATHER 4

BD3-E1125-00-00

Unavailable

17

CLIP

BD3-E4159-10-00

Unavailable

18

CLIP

BD3-E4919-10-00

Unavailable

19

BOLT

BD3-E4777-10-00

Unavailable

20

DUCT, AIR

BD3-E5471-00-00

Unavailable

21

DUCT, AIR

BD3-E5473-00-00

Unavailable

22

CLAMP, HOSE 1

BD3-E1387-00-00

Unavailable

23

BOLT, FOOTREST

BD3-F7416-10-00

Unavailable

24

NUT SPRING 1

BD3-E261D-10-00

Unavailable

25

SCREW

BD3-E5793-10-00

Unavailable

26

SEAL, AIR DUCT

BD3-E5472-00-00

Unavailable

27

BRACKET

BD3-E4849-00-00

Unavailable

28

BOLT

BD3-E2228-10-00

Unavailable

29

BOLT

BD3-E7647-10-00

Unavailable

30

RETAINER

BD3-E3274-10-00

Unavailable

31

GUIDE

BD3-E4458-00-00

Unavailable

32

COLLAR

BD3-E4495-00-00

Unavailable
