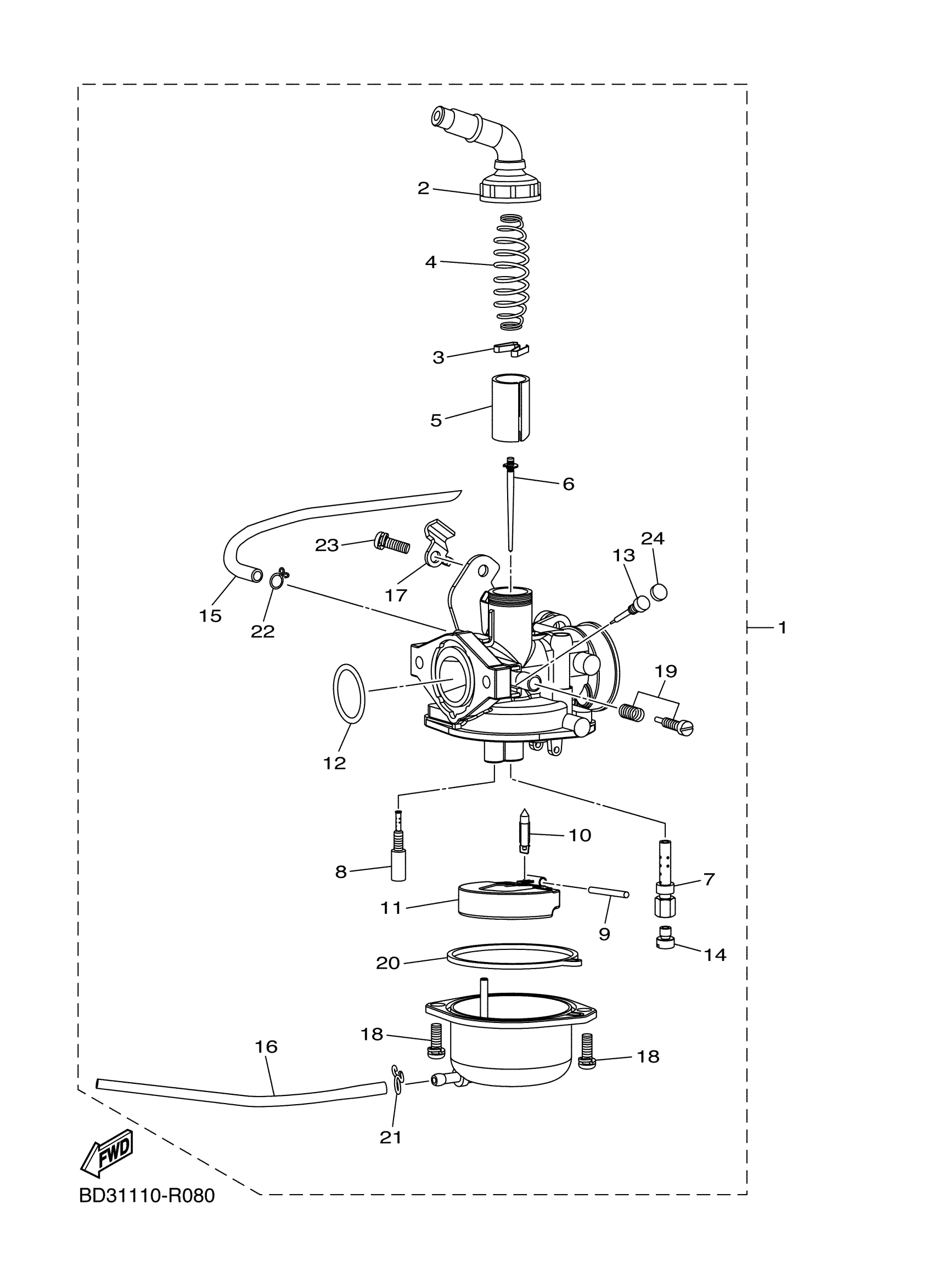

Yamaha YFM09RYXHW (RAPTOR 90) BD341 2017 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

BD3-E4101-10-00

$309.73

2

CAP, MIXING CHAMBER

BD3-E439D-10-00

Unavailable

3

CLIP 1

BD3-E439G-00-00

$2.17

4

SPRING, THROTTLE VALVE

BD3-E4331-00-00

$5.89

5

VALVE, THROTTLE

BD3-E3731-00-00

$65.79

6

NEEDLE ASSY

BD3-E4150-00-00

Unavailable

7

PIPE, MAIN BLEED

BD3-E414G-00-00

$31.59

8

JET, PILOT

BD3-E4942-00-00

$20.59

9

PIN, FLOAT

BD3-E4386-00-00

$4.05

10

VALVE, NEEDLE

BD3-E4392-00-00

$38.95

11

FLOAT

BD3-E4385-00-00

$53.83

12

O-RING

BD3-E4397-00-00

$27.41

13

SCREW, PILOT ADJUSTING

BD3-E4211-00-00

Unavailable

14

JET, MAIN

BD3-E415A-00-00

$17.55

15

PIPE 1

BD3-E4348-00-00

Unavailable

16

PIPE

BD3-E4349-00-00

Unavailable

17

BRACKET

BD3-E4581-10-00

Unavailable

18

. SCREW, PAN HEAD

BD3-E4325-00-00

Unavailable

19

SCREW, ADJUST

BD3-E4521-00-00

Unavailable

20

GASKET, FLOAT CHAMBER

BD3-E4384-00-00

Unavailable

21

CLIP 2

BD3-E439H-10-00

Unavailable

22

CLIP 1

BD3-E449C-10-00

Unavailable

23

SCREW

BD3-E4216-10-00

Unavailable

24

PLUG, BLIND

BD3-E443B-00-00

Unavailable
