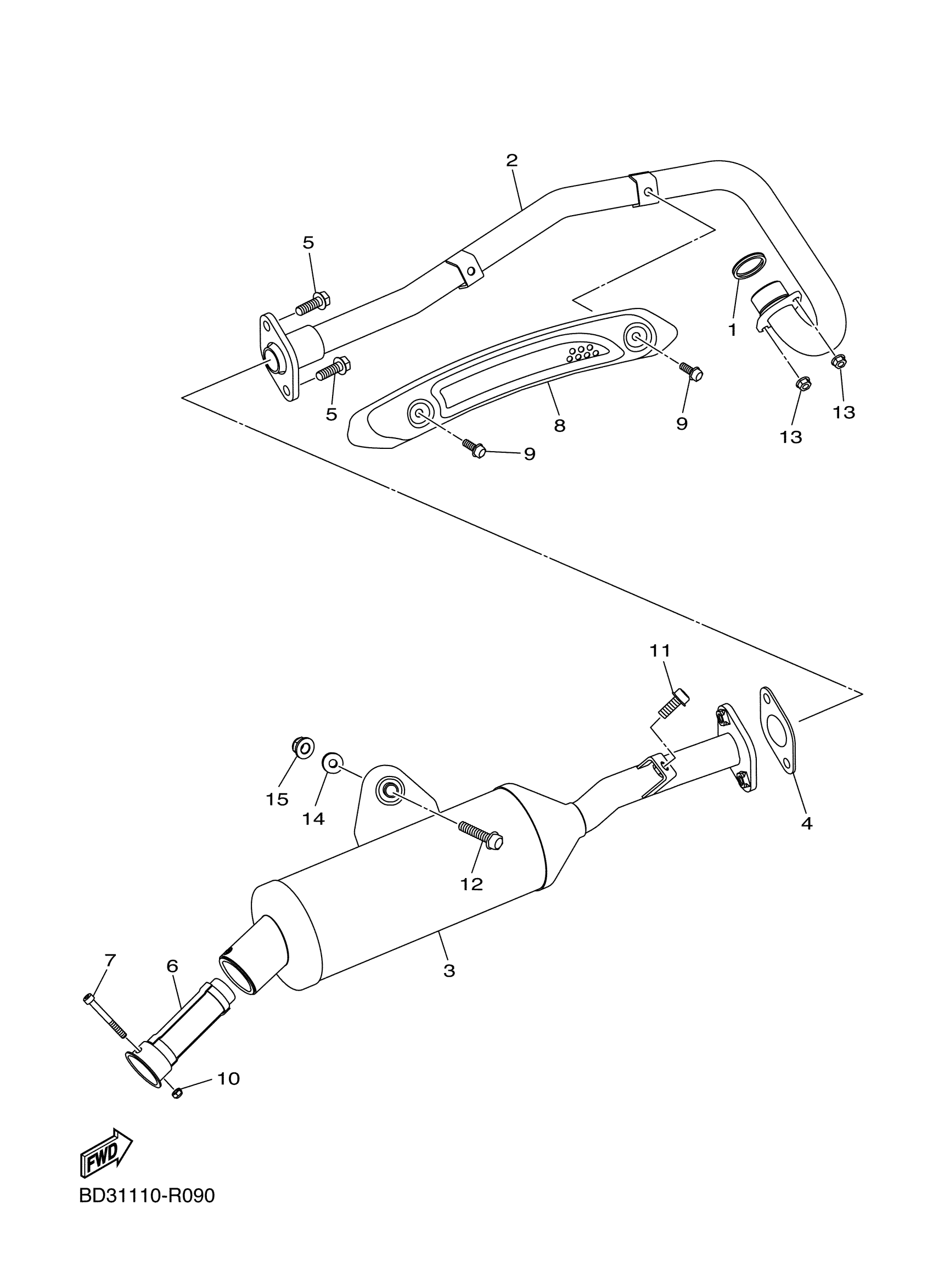

Yamaha YFM09RYXHW (RAPTOR 90) BD341 2017 EXHAUST Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

BD3-E4613-00-00

Unavailable

2

PIPE, EXHAUST 1

BD3-E4611-00-00

$215.72

3

MUFFLER 1

BD3-E4711-00-00

$444.81

4

GASKET, MUFFLER

BD3-E4714-00-00

$19.51

5

BOLT

BD3-E5768-00-00

$4.13

6

SPARK ARRESTER ASSY

BD3-E4780-00-00

$120.85

7

BOLT 2

BD3-E3574-00-00

$5.03

8

PROTECTOR, EXHAUST PIPE

BD3-E4628-00-00

$67.04

9

BOLT, HEX W/WASHER

BD3-E6194-00-00

Unavailable

10

NUT

BD3-E4358-00-00

$11.12

11

BOLT

BD3-F3876-10-00

$3.56

12

BOLT

BD3-E6777-10-00

Unavailable

13

NUT

BD3-F1494-10-00

$2.04

14

WASHER

BD3-E2289-10-00

$1.54

15

NUT, REAR FENDER

BD3-F1635-10-00

$4.16
