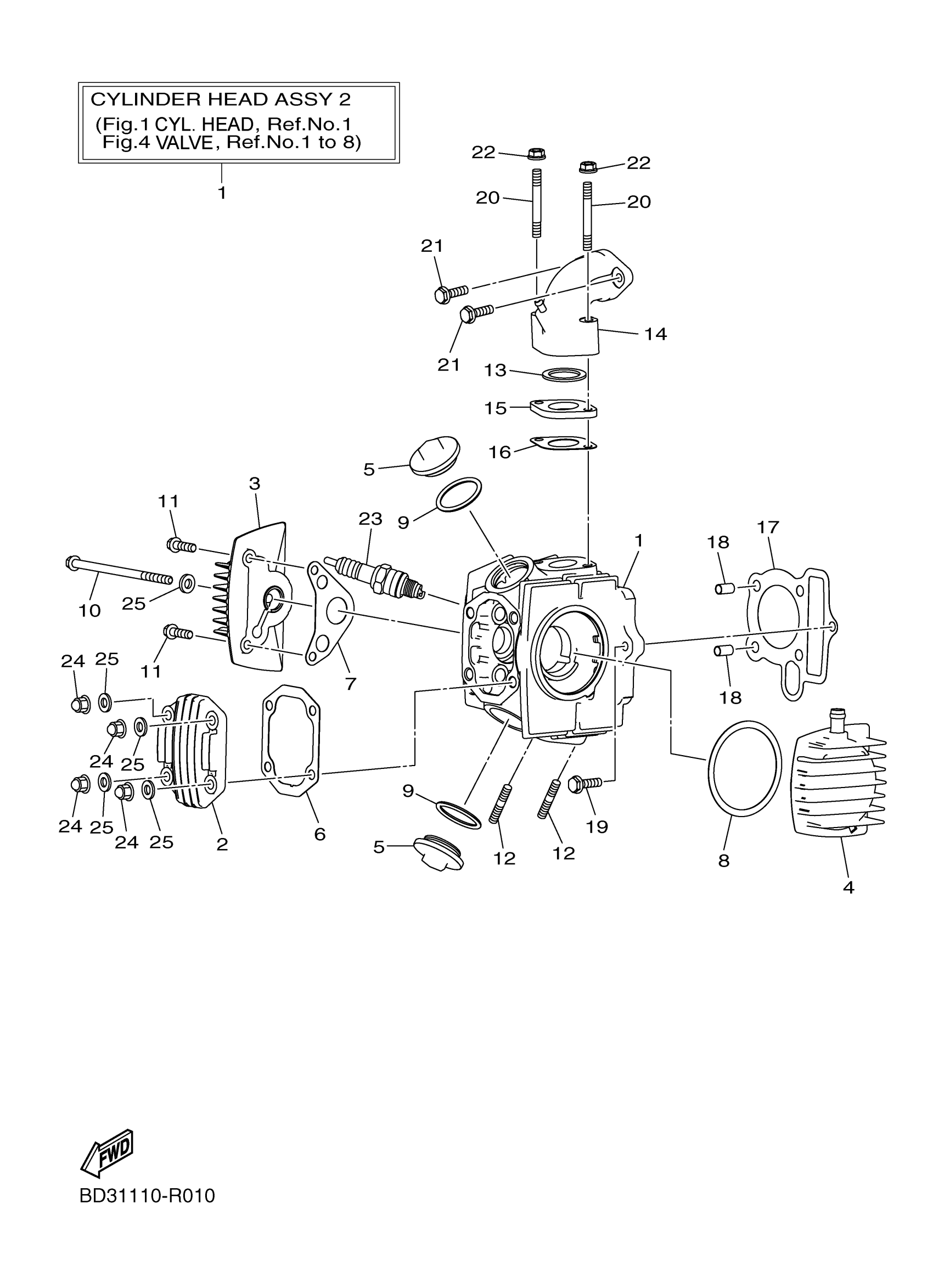

Yamaha YFM09RYXHW (RAPTOR 90) BD341 2017 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY 2

BD3-E1103-00-00

Unavailable

2

COVER, CYLINDER HEAD 2

BD3-E1192-00-00

$24.64

3

COVER, CYLINDER HEAD 3

BD3-E112E-00-00

Unavailable

4

COVER, CYLINDER HEAD 1

BYS-E1191-10-00

Unavailable

5

COVER, CYLINDER HEAD SIDE 2

BD3-E1186-00-00

$6.91

6

GASKET, HEAD COVER 1

BD3-E1193-20-00

$4.01

7

GASKET, HEAD COVER 2

BD3-E1194-20-00

Unavailable

8

GASKET, BREATHER COVER

BD3-E1169-10-00

$4.00

9

O-RING

BD3-E119B-00-00

$8.51

10

BOLT

BD3-E2615-10-00

$4.35

11

BOLT

BD3-E2623-10-00

$2.04

12

BOLT, STUD

BD3-E1179-10-00

$3.33

13

O-RING

BD3-E119A-00-00

$3.12

14

JOINT, CARBURETOR 1

BD3-E3586-00-00

$83.23

15

INSULATOR

BD3-E4271-00-00

$15.97

16

GASKET, MANIFOLD

BD3-E3556-00-00

Unavailable

17

GASKET, CYLINDER HEAD 1

BD3-E1181-00-00

Unavailable

18

PIN, DOWEL

BD3-E3516-00-00

Unavailable

19

BOLT

BD3-E2157-10-00

Unavailable

20

BOLT, STUD 1

BD3-E1391-10-00

Unavailable

21

BOLT

BD3-E2157-10-00

Unavailable

22

NUT

BD3-F1494-10-00

Unavailable

23

CR6HS-A NGK SPLUG 4PK

CR6-HSA00-00-00

$5.02

24

NUT

BD3-E4439-10-00

Unavailable

25

WASHER

BD3-E3318-00-00

Unavailable
